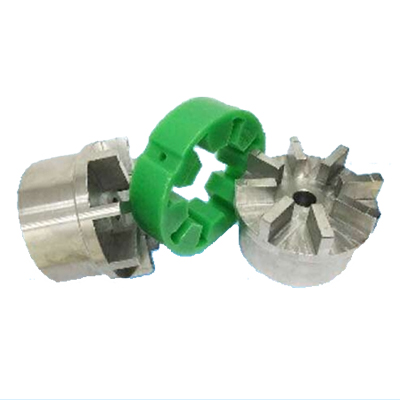

Taper Bore R Coupling
Taper Bore R Coupling
Note：
Consult engineering for larger sizes.
Flex hubs or rigid hubs can be provided with either inboard or outboard mount bores.
Unless otherwise specified standard mount with inboard – inboard hubs supplied.
Maximum angular misalignment 1 1/2° per gear mesh. For optimum performance, combined angular and offset misalignment should not exceed 3/4° per gear mesh. Application requirements in excess of 3/4° misalignment per flex half coupling should be referred to SCI.

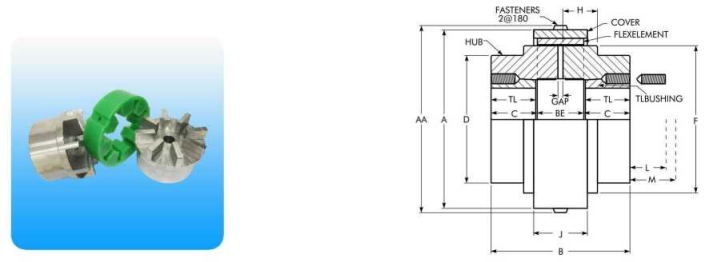

Diameter Data
Table 1
| Size | Bushing
Size |
Torque Rating (IB-in) | HP per 100RPM | Max RPM | Max Bore | Min Bore | GAP | BE | Cover Fasteners | |
| Size | Hex Tool | |||||||||
| 5R | 1108 | 550 | 0.87 | 4500 | 1.125 | 0.500 | 0.078 | 0.78 | M4 | M2.5 |
| 10R | 1210 | 1150 | 1.82 | 4500 | 1.250 | 0.500 | 0.078 | 0.94 | M4 | M2.5 |
| 20R | 1610 | 2800 | 4.44 | 4500 | 1.688 | 0.500 | 0.078 | 1.26 | M6 | M4 |
| 30R | 2012 | 4600 | 7.30 | 4500 | 2.125 | 0.500 | 0.078 | 1.42 | M6 | M4 |
| 40R | 2517 | 9100 | 14.4 | 3600 | 2.688 | 0.500 | 0.197 | 1.84 | M8 | M5 |
| 50R | 3020 | 22200 | 35.2 | 3000 | 3.250 | 0.875 | 0.197 | 2.39 | M8 | M5 |
| 60R | 4040 | 35500 | 56.3 | 2500 | 4.438 | 1.438 | 0.197 | 2.96 | M10 | M6 |
| 70R | 4545 | 70900 | 112 | 2100 | 4.938 | 1.938 | 0.197 | 3.31 | M10 | M6 |
| 80R | 5050 | 126000 | 200 | 1800 | 5.313 | 2.438 | 0.236 | 3.82 | M10 | M6 |
Table 2
| Size | B | C | D | F | H | L | M | TL | ||
| Standard Hex Key | Short Hex Key | Standard Hex Key | Short Hex Key | |||||||
| 5R | 2.56 | 0.89 | 2.36 | 2.520 | 0.59 | 1.13 | 0.63 | 1.25 | 0.75 | 0.875 |
| 10R | 3.54 | 1.30 | 2.84 | 2.992 | 0.75 | 1.38 | 0.81 | 1.63 | 1.06 | 1.000 |
| 20R | 3.86 | 1.30 | 3.62 | 4.016 | 0.98 | 1.38 | 0.81 | 1.63 | 1.06 | 1.000 |
| 30R | 4.72 | 1.65 | 4.13 | 4.646 | 1.14 | 1.56 | 0.94 | 2.00 | 1.38 | 1.250 |
| 40R | 5.46 | 1.81 | 5.12 | 5.906 | 1.34 | 1.63 | 1.00 | 2.25 | 1.63 | 1.750 |
| 50R | 6.72 | 2.17 | 7.01 | 7.480 | 1.81 | 1.81 | 1.19 | 2.69 | 2.06 | 2.000 |
| 60R | 10.84 | 3.94 | 8.25 | 8.976 | 2.37 | 2.38 | 1.63 | 4.13 | 3.38 | 4.000 |
| 70R | 12.37 | 4.53 | 9.88 | 10.630 | 2.74 | 2.63 | 1.94 | 4.75 | 4.06 | 4.500 |
| 80 | 13.90 | 5.04 | 10.63 | 12.913 | 3.28 | 2.81 | 2.31 | 5.25 | 4.81 | 5.000 |
