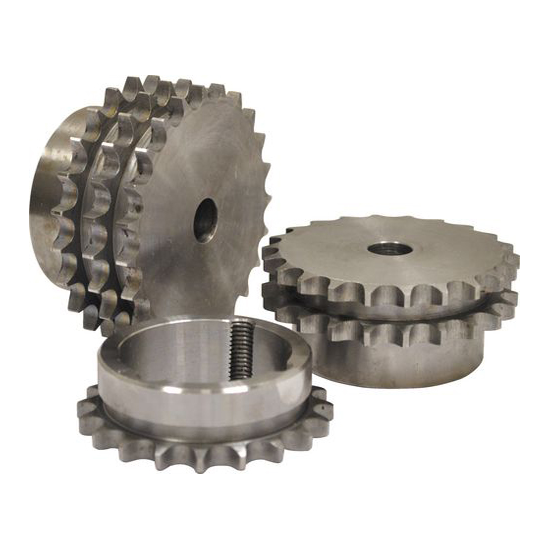

Taper bore sprockets
Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Taper bore sprockets
For Roller Chains DIN8187-ISO/R 606
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.

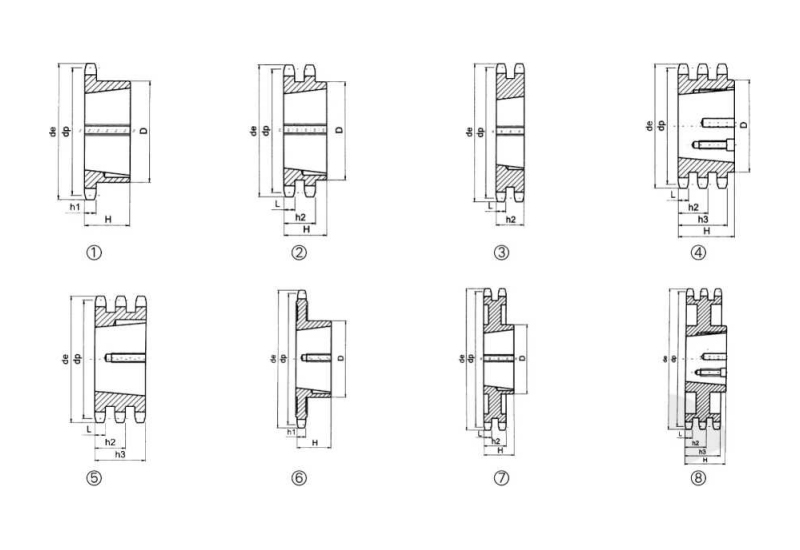

Dimensional parameters
3/8″ X 7/32″
06B-1-2-3 9.525X5.72mm DIN 8187 ISO/R 606
| Tooth radius r | 10 | ||
| ISO | Radius width C | 1 | |
| CHAIN: | mm | Tooth width h1 | 5.3 |
| Pitch | 9.525 | Tooth width L | 5.2 |
| Internal width | 5.72 | Tooth width h2 | 15.4 |
| Roller φ | 6.35 | Tooth width h3 | 25.6 |
| Z | de | dp | TS | TD | TT | |||||||||
| D | H | for Bush | Type | D | H | for Bush | Type | D | H | for Bush | Type | |||
| 17 | 55.3 | 51.83 | 45 | 22 | 1008 | 1 | 42 | 22 | 1008 | 2 | – | 25.6 | 1008 | 5 |
| 19 | 61.3 | 57.87 | 45 | 22 | 1008 | 1 | 46 | 22 | 1008 | 2 | – | 25.6 | 1008 | 5 |
| 21 | 68.0 | 63.91 | 46 | 22 | 1008 | 1 | 49 | 22 | 1008 | 2 | – | 25.6 | 1008 | 5 |
| 23 | 73.5 | 69.95 | 63 | 25 | 1210 | 1 | 59 | 25 | 1210 | 2 | – | 25.6 | 1210 | 5 |
| 25 | 80.0 | 76.02 | 63 | 25 | 1210 | 1 | 64 | 25 | 1210 | 2 | – | 25.6 | 1210 | 5 |
| 27 | 86.0 | 82.05 | 63 | 25 | 1210 | 1 | 70 | 25 | 1210 | 2 | – | 25.6 | 1210 | 5 |
| 30 | 94.7 | 91.12 | 63 | 25 | 1210 | 1 | 75 | 25 | 1210 | 2 | 79 | 38 | 1615 | 4 |
| *38 | 119.5 | 115.35 | 70 | 25 | 1210 | 1 | 80 | 25 | 1610 | 2 | 90 | 38 | 1615 | 4 |
| *45 | 140.7 | 136.55 | 70 | 25 | 1210 | 1 | 80 | 25 | 1610 | 2 | ||||
| *57 | 176.9 | 172.91 | 70 | 25 | 1210 | 6 | 80 | 25 | 1610 | 7 | ||||
| *76 | 234.9 | 230.49 | 70 | 25 | 1210 | 6 | 80 | 25 | 1610 | 7 | ||||
| *95 | 292.5 | 288.08 | 80 | 25 | 1210 | 6 | 90 | 25 | 1610 | 7 | ||||
| *114 | 349.5 | 345.68 | 80 | 38 | 1215 | 6 | 95 | 38 | 1615 | 7 | ||||
1/2″ X 5/16″
08B-1-2-3 12.7X7.75mm DIN 8187 ISO/R 606
| ISO | Radius width C | 1.3 | |
| CHAIN: | mm | Tooth width h1 | 7.2 |
| Pitch | 12.7 | Tooth width L | 7 |
| Internal width | 7.75 | Tooth width h2 | 21 |
| Roller φ | 8.51 | Tooth width h3 | 34.9 |
| Z | de | dp | TS | TD | TT | |||||||||
| D | H | for Bush | Type | D | H | for Bush | Type | D | H | for Bush | Type | |||
| 15 | 65.5 | 61.9 | 45 | 22 | 1008 | 1 | 46 | 22 | 1008 | 2 | 34.9 | 1008 | 5 | |
| 16 | 69.5 | 65.10 | 50 | 22 | 1108 | 1 | 50 | 22 | 1108 | 2 | ||||
| 17 | 73.6 | 69.11 | 60 | 25 | 1210 | 1 | 56 | 25 | 1210 | 2 | – | 34.9 | 1210 | 5 |
| 19 | 81.7 | 77.16 | 63 | 25 | 1210 | 1 | 62 | 25 | 1210 | 2 | 34.9 | 1210 | 5 | |
| 21 | 89.7 | 85.22 | 71 | 25 | 1610 | 1 | 70 | 25 | 1610 | 2 | – | 34.9 | 1610 | 5 |
| 23 | 97.8 | 93.27 | 76 | 25 | 1610 | 1 | 79 | 25 | 1610 | 2 | 34.9 | 1610 | 5 | |
| 25 | 105.8 | 101.33 | 76 | 25 | 1610 | 1 | 87 | 32 | 2012 | 2 | – | 34.9 | 2012 | 5 |
| 27 | 114.0 | 109.40 | 76 | 25 | 1610 | 1 | 87 | 32 | 2012 | 2 | – | 34.9 | 2012 | 5 |
| 30 | 126.1 | 121.50 | 90 | 32 | 2012 | 1 | 87 | 32 | 2012 | 2 | 34.9 | 2012 | 5 | |
| 38 | 158.6 | 153.80 | 90 | 32 | 2012 | 1 | 100 | 32 | 2012 | 2 | – | 34.9 | 2012 | 5 |
| *45 | 188.0 | 182.07 | 100 | 32 | 2012 | 1 | 100 | 32 | 2012 | 2 | ||||
| *57 | 236.4 | 230.54 | 100 | 32 | 2012 | 6 | 100 | 32 | 2012 | 7 | ||||
| *76 | 313.2 | 307.33 | 100 | 32 | 2012 | 6 | 100 | 32 | 2012 | 7 | ||||
| *95 | 390.0 | 384.11 | 100 | 32 | 2012 | 6 | 100 | 32 | 2012 | 7 | ||||
| *114 | 466.9 | 460.90 | 110 | 45 | 2517 | 6 | 110 | 45 | 2517 | 7 | ||||
5/8″ X 3/8″
10B-1-2-3 15.875X9.65mm DIN 8187 ISO/R 606 ISO
| Tooth radius r | 16 | ||
| ISO | Radius width C | 1.6 | |
| CHAIN: | mm | Tooth width h1 | 9.1 |
| Pitch | 15.875 | Tooth width L | 9 |
| Internal width | 9.65 | Tooth width h2 | 25.5 |
| Roller φ | 10.16 | Tooth width h3 | 42.1 |
| Z | de | dp | TS | TD | TT | |||||||||
| D | H | for Bush | Type | D | H | for Bush | Type | D | H | for Bush | Type | |||
| 13 | 73.0 | 66.32 | 47 | 22 | 1008 | 1 | ||||||||
| 14 | 78.0 | 71.34 | 52 | 22 | 1108 | 1 | ||||||||
| 15 | 83.1 | 76.36 | 60 | 25 | 1210 | 1 | – | 25.5 | 1210 | 3 | – | 42.1 | 1210 | 5 |
| 17 | 93.1 | 86.36 | 70 | 25 | 1610 | 1 | – | 25.5 | 1610 | 3 | – | 42.1 | 1210 | 5 |
| 19 | 103.3 | 96.45 | 75 | 25 | 1610 | 1 | – | 25.5 | 1610 | 3 | – | 42.1 | 1615 | 5 |
| 21 | 113.4 | 106.52 | 76 | 25 | 1610 | 1 | – | 25.5 | 1610 | 3 | – | 42.1 | 1615 | 5 |
| 23 | 123.4 | 116.58 | 76 | 25 | 1610 | 1 | – | 25.5 | 1610 | 3 | – | 42.1 | 2012 | 5 |
| 25 | 134.0 | 126.66 | 90 | 32 | 2012 | 1 | 90 | 32 | 2012 | 2 | 105 | 45 | 2517 | 4 |
| 27 | 143.8 | 136.75 | 90 | 32 | 2012 | 1 | 90 | 32 | 2012 | 2 | 110 | 45 | 2517 | 4 |
| 30 | 158.9 | 151.87 | 90 | 32 | 2012 | 1 | 90 | 32 | 2012 | 2 | 120 | 45 | 2517 | 4 |
| 38 | 199.2 | 192.24 | 100 | 32 | 2012 | 1 | 108 | 45 | 2517 | 2 | ||||
| *45 | 235.0 | 227.58 | 100 | 32 | 2012 | 6 | ||||||||
| *57 | 295.6 | 288.18 | 100 | 32 | 2012 | 6 | ||||||||
| *76 | 392.1 | 384.16 | 100 | 32 | 2012 | 6 | ||||||||
| *95 | 488.1 | 480.14 | 110 | 45 | 2517 | 6 | ||||||||
| *114 | 584.1 | 576.13 | 110 | 45 | 2517 | 6 | ||||||||
3/4″ X 7/16″
12B-1-2-3 19.05X11.68mm DIN 8187 ISO/R 606
| Tooth radius r | 19 | ||
| ISO | Radius width C | 2 | |
| CHAIN: | mm | Tooth width h1 | 11.1 |
| Pitch | 15.875 | Tooth width L | 10.8 |
| Internal width | 9.65 | Tooth width h2 | 30.3 |
| Roller φ | 10.16 | Tooth width h3 | 49.8 |
| z | de | dp | TS | TD | TT | |||||||||
| D | H | for Bush | Type | D | H | for Bush | Type | D | H | for Bush | Type | |||
| 13 | 87.5 | 79.59 | 60 | 25 | 1210 | 1 | ||||||||
| 15 | 99.8 | 91.63 | 70 | 25 | 1610 | 1 | – | 30.3 | 1610 | 3 | – | 49.8 | 1615 | 5 |
| 17 | 111.5 | 103.67 | 76 | 25 | 1610 | 1 | – | 30.3 | 1610 | 3 | – | 49.8 | 2012 | 5 |
| 19 | 124.2 | 115.75 | 90 | 32 | 2012 | 1 | 90 | 32 | 2012 | 2 | – | 49.8 | 2012 | 5 |
| 21 | 136.0 | 127.82 | 102 | 45 | 2517 | 1 | 108 | 45 | 2517 | 2 | – | 49.8 | 2517 | 5 |
| 23 | 149.0 | 139.90 | 108 | 45 | 2517 | 1 | 108 | 45 | 2517 | 2 | – | 49.8 | 2517 | 5 |
| 25 | 160.0 | 152.00 | 108 | 45 | 2517 | 1 | 108 | 45 | 2517 | 2 | – | 49.8 | 2517 | 5 |
| 27 | 172.3 | 164.09 | 108 | 45 | 2517 | 1 | 108 | 45 | 2517 | 2 | 140 | 51 | 3020 | 4 |
| 30 | 190.3 | 182.25 | 108 | 45 | 2517 | 1 | 108 | 45 | 2517 | 2 | 140 | 51 | 3020 | 4 |
| 38 | 239.2 | 230.69 | 108 | 45 | 2517 | 1 | 140 | 51 | 3020 | 2 | 140 | 51 | 3020 | 4 |
| 45 | 282.0 | 273.10 | 108 | 45 | 2517 | 6 | 140 | 51 | 3020 | 7 | 140 | 51 | 3020 | 8 |
| *57 | 355.8 | 345.81 | 108 | 45 | 2517 | 6 | 140 | 51 | 3020 | 7 | 140 | 51 | 3020 | 8 |
| *76 | 469.9 | 460.99 | 108 | 45 | 2517 | 6 | 140 | 51 | 3020 | 7 | 140 | 51 | 3020 | 8 |
| *95 | 585.1 | 576.17 | 108 | 45 | 2517 | 6 | 140 | 51 | 3020 | 7 | 140 | 76 | 3030 | 8 |
| *114 | 700.4 | 691.36 | 108 | 64 | 2525 | 6 | 140 | 76 | 3030 | 7 | 140 | 76 | 3030 | 8 |
1″ X 17.02mm
16B-1-2-3 25.4X17.2mm DIN 8187 ISO/R 606
| ISO | |
| CHAIN: | mm |
| Pitch | 25.4 |
| Internal width | 17.02 |
| Roller φ | 15.88 |
| SPROCKETS | mm |
| Tooth radius r | 26 |
| Radius width C | 2.5 |
| Tooth width h1 | 16.2 |
| Tooth width L | 15.8 |
| Tooth width h2 | 47.7 |
| Tooth width h3 | 79.6 |
| Z | de | dp | TS | TD | TT | |||||||||
| D | H | for Bush | Type | D | H | for Bush | Type | D | H | for Bush | Type | |||
| 13 | 117.0 | 106.12 | 73 | 25 | 1610 | 1 | ||||||||
| 15 | 133.0 | 122.17 | 76 | 25 | 1610 | 1 | – | 47.7 | 2012 | 3 | ||||
| 17 | 149.0 | 138.22 | 90 | 32 | 2012 | 1 | – | 47.7 | 2517 | 3 | – | 79.6 | 2517 | 5 |
| 19 | 165.2 | 154.33 | 108 | 45 | 2517 | 1 | – | 47.7 | 2517 | 3 | – | 79.6 | 3020 | 5 |
| 21 | 181.3 | 170.43 | 110 | 45 | 2517 | 1 | 140 | 51 | 3020 | 2 | – | 79.6 | 3020 | 5 |
| 23 | 197.5 | 186.53 | 110 | 45 | 2517 | 1 | 140 | 51 | 3020 | 2 | 79.6 | 3525 | 4 | |
| 25 | 213.5 | 202.66 | 110 | 45 | 2517 | 1 | 140 | 51 | 3020 | 2 | 79.6 | 3525 | 4 | |
| 27 | 229.6 | 218.79 | 110 | 45 | 2517 | 1 | 140 | 51 | 3020 | 2 | 79.6 | 3525 | 4 | |
| 30 | 254.0 | 243.00 | 140 | 51 | 3020 | 1 | 140 | 51 | 3020 | 2 | 79.6 | 3525 | 4 | |
| 38 | 320.7 | 307.59 | 140 | 51 | 3020 | 1 | 140 | 51 | 3020 | 2 | 79.6 | 3525 | 4 | |
| 45 | 377.1 | 364.13 | 140 | 51 | 3020 | 6 | 140 | 51 | 3020 | 7 | 79.6 | 4030 | 8 | |
| *57 | 474.0 | 461.07 | 140 | 51 | 3020 | 6 | 175 | 65 | 3535 | 7 | 79.6 | 4030 | 8 | |
| *76 | 627.0 | 614.65 | 140 | 51 | 3020 | 6 | 175 | 65 | 3535 | 7 | 79.6 | 4030 | 8 | |
| *95 | 781.1 | 768.22 | 140 | 51 | 3020 | 6 | 215 | 65 | 3535 | 7 | 79.6 | 4030 | 8 | |
| *114 | 934.3 | 921.81 | 140 | 76 | 3030 | 6 | 215 | 102 | 4040 | 7 | 240 | 114 | 4545 | 8 |
1″1/4 X 3/4″
| 20B-1-2-3 | 31.75X19.56mm DIN 8187 ISO/R 606 | ISO | ||
| SPROCKETS | mm | |||
| Tooth radius r | 32 | |||
| ISO | Radius width C | 3.5 | ||
| CHAIN: | mm | Tooth width h1 | 18.5 | |
| Steel=C45 | Pitch | 31.75 | Tooth width L | 18.2 |
| *Cast iron=G22 | Internal width | 19.56 | Tooth width h2 | 54.6 |
| Roller φ | 19.05 | Tooth width h3 | 91 |
| z | de | dp | TS | ||||
| D | H | for Bush | Type | ||||
| 13 | 147.8 | 132.65 | 90 | 32 | 2012 | 1 | |
| 15 | 167.9 | 152.72 | 108 | 45 | 2517 | 1 | |
| 17 | 187.9 | 172.78 | 108 | 45 | 2517 | 1 | |
| 19 | 208.1 | 192.91 | 108 | 45 | 2517 | 1 | |
| 21 | 228.2 | 213.04 | 108 | 45 | 2517 | 1 | |
| 23 | 248.3 | 233.17 | 108 | 45 | 2517 | 1 | |
| 25 | 268.5 | 253.33 | 108 | 45 | 2517 | 1 | |
| 27 | 288.6 | 273.40 | 150 | 51 | 3020 | 1 | |
| 30 | 318.9 | 303.75 | 150 | 51 | 3020 | 1 | |
| 38 | 399.6 | 384.49 | 160 | 51 | 3020 | 6 | |
| *45 | 470.3 | 455.17 | 160 | 51 | 3020 | 6 | |
| *57 | 591.5 | 576.36 | 160 | 51 | 3020 | 6 | |
| *76 | 783.5 | 768.32 | 160 | 51 | 3020 | 6 | |
