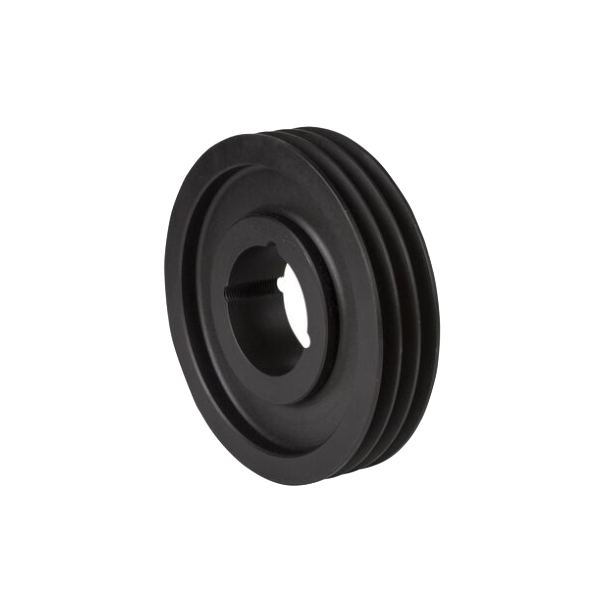

Taper Lock Pulleys SPA-3

Description

Application

Conveyor Systems: To drive belts and transfer materials efficiently.
Industrial Machinery: Found in manufacturing equipment, where reliable torque transmission is critical.
Fans and Blowers: Used in HVAC systems to drive air movement.
Pumps: For driving impellers in various fluid transfer systems.
Agricultural Equipment: In tractors and harvesters for power transmission.

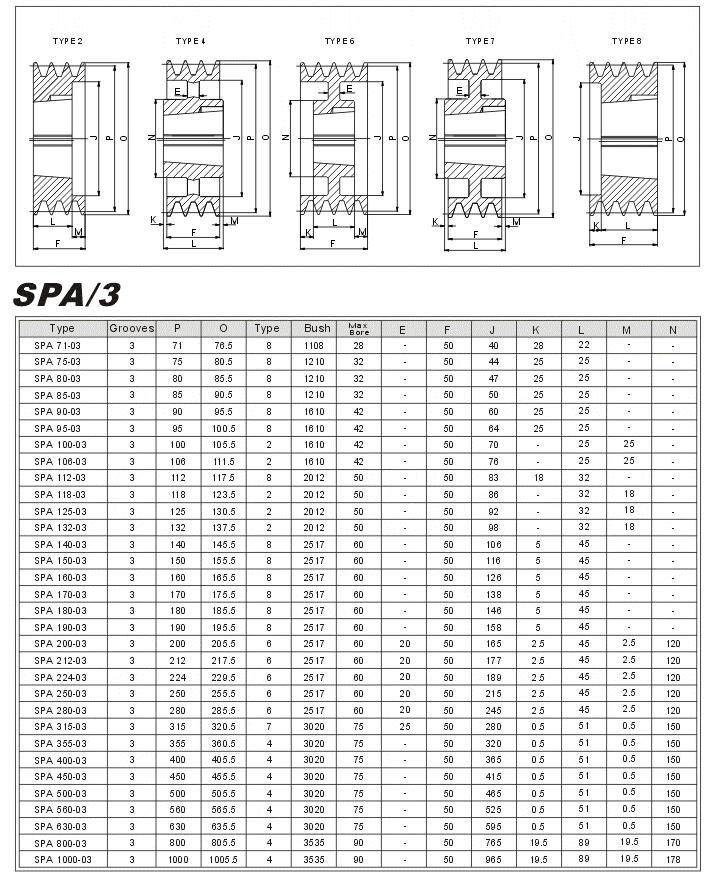

Diameter

Type Grooves P 0 Type Bush Max
B ore E F J K L M N

SPA 71-03 3 71 76.5 8 1108 28 50 40 28 22

SPA 75-03 3 75 80.5 8 1210 32 50 44 25 25

SPA 80-03 3 80 85.5 8 1210 32 50 47 25 25

SPA 85-03 3 85 90.5 8 1210 32 50 50 25 25

SPA 90-03 3 90 95.5 8 1610 42 50 60 25 25

SPA 95-03 3 95 100.5 8 1610 42 50 64 25 25

SPA 100-03 3 100 105.5 2 1610 42 50 70 25 25

SPA 106-03 3 106 111.5 2 1610 42 50 70 25 25

SPA 112-03 3 112 117.5 8 2012 50 50 83 18 32

SPA 118-03 3 118 123.5 2 2012 50 50 80 32 18

SPA 125-03 3 125 130.5 2 2012 50 50 92 32 18

SPA132-03 3 132 137.5 2 2012 50 50 98 32 18

SPA 140-03 3 140 145.5 8 2517 60 50 106 5 45

SPA 150-03 3 150 155.5 8 2517 60 – 50 116 5 45

SPA 160-03 3 160 165.5 8 2517 60 50 126 5 45

SPA 170-03 3 170 175.5 8 2517 60 50 138 5 45

SPA 180-03 3 180 185.5 8 2517 60 50 146 5 45

SPA 190-03 3 190 195.5 8 2517 60 50 158 5 45

SPA 200-03 3 200 205.5 6 2517 60 20 50 165 2.5 45 2.5 120

SPA212-03 3 212 217.5 6 2517 60 20 50 177 2.5 45 2.5 120

SPA 22403 3 224 220.5 6 2517 60 20 50 180 2.5 45 2.5 120

SPA 250-03 3 250 255.5 6 2517 60 20 50 215 2.5 45 2.5 120

SPA 280-03 3 280 285.5 6 2517 60 20 50 245 2.5 45 2.5 120

SPA 315-03 3 315 320.5 7 3020 75 25 50 280 0.5 51 0.5 150

SPA 355-03 3 355 360.5 4 3020 75 50 320 0.5 51 0.5 150

SPA 400-03 3 400 405.5 4 3020 75 50 365 0.5 51 0.5 150

SPA 450-03 3 450 455.5 4 3020 75 50 415 0.5 51 0.5 150

SPA 500-03 3 500 505.5 4 3020 75 50 465 0.5 51 0.5 150

SPA 560-03 3 560 565.5 4 3020 75 50 525 0.5 51 0.5 150

SPA 630-03 3 630 635.5 4 3020 75 50 595 0.5 51 0.5 150

SPA 800-03 3 800 805.5 4 3535 90 50 765 19.5 89 19.5 170

SPA 1000-03 3 1000 1005.5 4 3535 90 50 965 19.5 89 19.5 178
