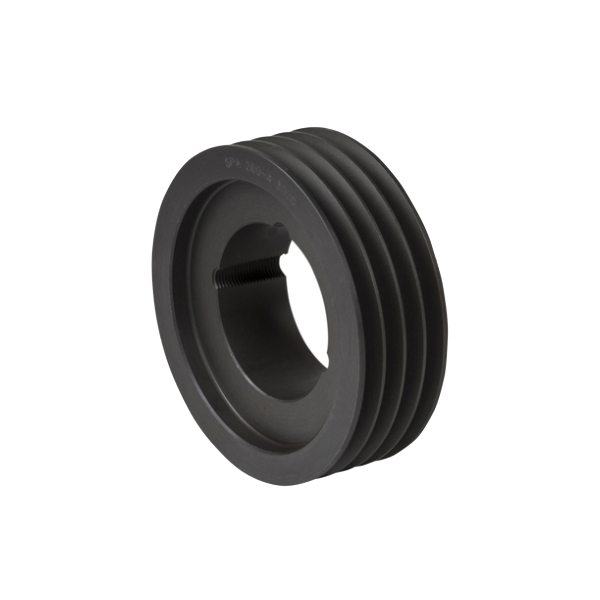

Taper Lock Pulleys SPA-4
Pulleys Material
Fine grain cast-iron grade 220–260.
Other materials to order.
Parameter | Standard |
---|---|
Eccentricity of O/D to bore | DIN 2211 Part. 1 |
Groove side wobble tolerance | DIN 2211 Part. 1 |
Surface roughness | ISO 254 |
Balance quality grade | VDI 2060, ISO 1940 |
Pulleys with Dw > 125 mm are statically balanced, degree q 6.3 at 1500 rpm. On request, the pulleys can be balanced dynamically in two planes, degree q 6.3 – q 2.5.
Diameter

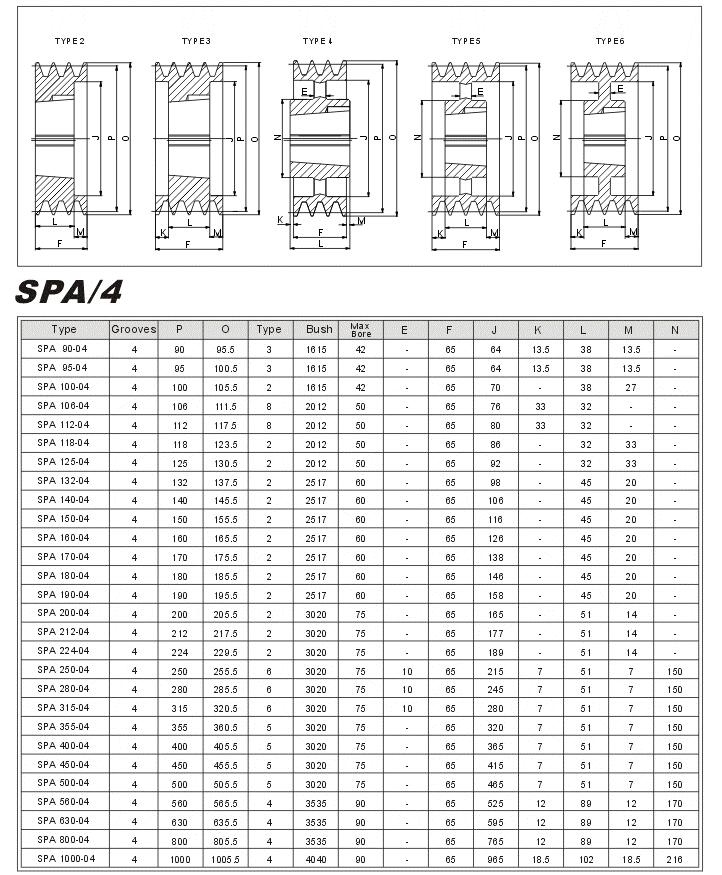

Type Grooves P 0 Type Bush Max
BoreE F J K L M N SPA 90-04 4 90 95.5 3 1015 42 65 04 13.5 38 13.5 SPA 95-04 4 95 100.5 3 1615 42 65 64 13.5 38 13.5 SPA 100-04 4 100 105.5 2 1615 42 65 70 38 27 SPA 106-04 4 106 111.5 8 2012 50 65 76 33 32 SPA 112-04 4 112 1175 8 2012 50 65 80 33 32 SPA 118-04 4 18 123.5 2 2012 50 65 86 32 33 SPA 125-04 4 125 130.5 2 2012 50 65 92 32 33 SPA 132-04 4 132 1,375 2 2517 60 65 98 45 20 SPA 140-04 4 140 145.5 2 2517 60 65 106 45 20 SPA 150-04 4 150 155.5 2 2517 60 65 116 45 20 SPA 160-04 4 160 165.5 2 2517 60 65 126 45 20 SPA 170-04 4 170 175.5 2 2517 60 65 138 45 20 SPA 180-04 4 180 185.5 2 2517 60 65 146 45 20 SPA 190-04 4 190 195.5 2 2517 60 65 158 45 20 SPA 200-04 4 200 205.5 2 3020 75 65 165 51 14 SPA 212-04 4 212 217.5 2 3020 75 65 177 51 14 SPA 224-04 4 224 229.5 2 3020 75 65 189 51 14 SPA 250-04 4 250 255.5 6 3020 75 10 65 215 7 51 7 150 SPA 280-04 4 280 285.5 6 3020 75 10 65 245 7 51 7 150 SPA 315-04 4 315 320.5 6 3020 75 10 65 280 7 51 7 150 SPA 355-04 4 355 360.5 5 3020 75 65 320 7 51 7 150 SPA 400-04 4 400 405.5 5 3020 75 65 365 7 51 7 150 SPA 450-04 4 450 455.5 5 3020 75 65 415 7 51 7 150 SPA 500-04 4 500 505.5 5 3020 75 65 485 7 51 7 150 SPA 560-04 4 560 565.5 4 3535 90 65 525 12 89 12 170 SPA 630-04 4 630 635.5 4 3535 90 65 505 12 80 12 170 SPA 800-04 4 800 805.5 4 3535 90 65 785 12 89 12 170 SPA 1000-04 4 1000 10055 4 40.40 90 65 965 18.5 102 18.5 216
