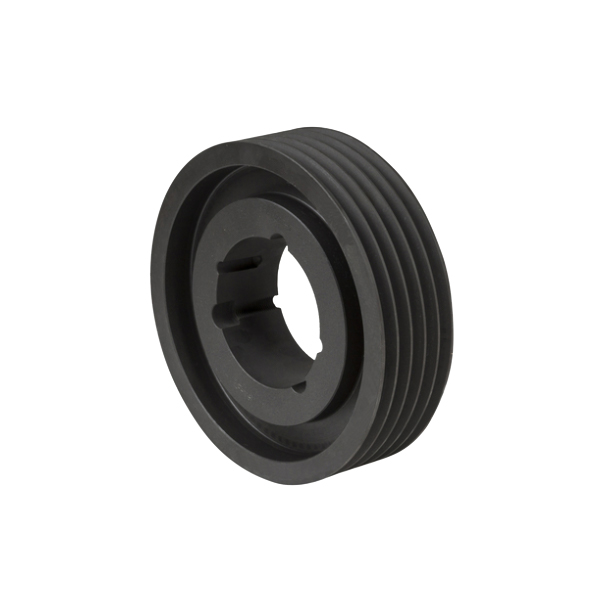

Taper Lock Pulleys SPA-5
Features of Cast Iron Taper Lock V-Pulleys
- Suitable for SPA & A Section Belts
- Choose from 1, 2, 3, 4, 5 or 6 Grooves
- Wide range of sizes available
- Quality V-belt pulleys
- Constructed from cast iron
- Taper locked to accommodate a range of shaft sizes
- Each pulley design has undergone stringent balancing tests to ensure optimal efficiency.
- Finished in black coating which acts as a primer to help protect the pulleys from environmental factors.

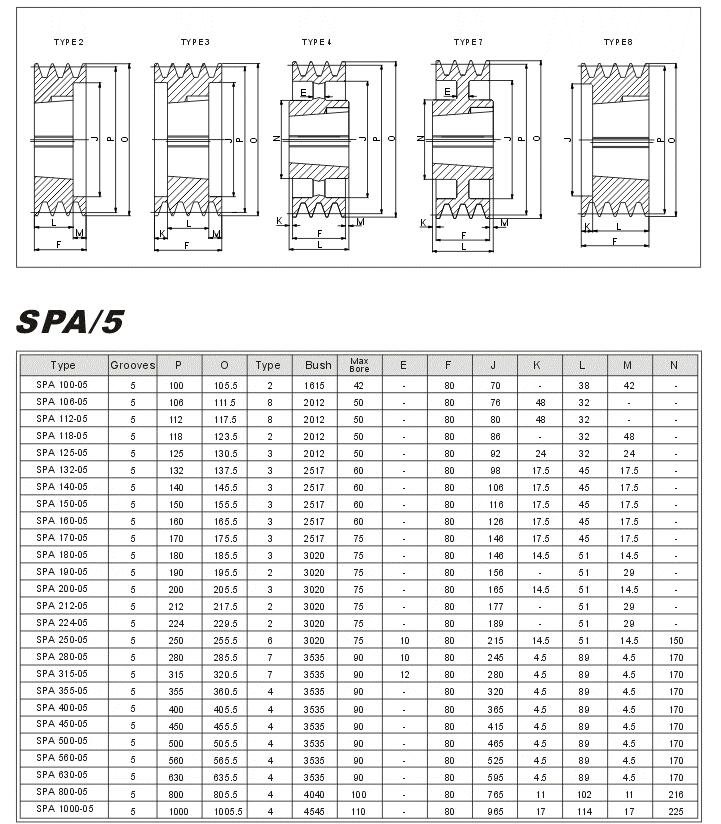

Diameter
Type | Grooves | P | 0 | Type | Bush | Max Bore |
E | F | J | K | L | M | N |
SPA 100-05 | 5 | 100 | 105.5 | 2 | 1615 | 42 | 80 | 70 | 38 | 42 | |||
SPA 106-05 | 5 | 106 | 111.5 | 8 | 2012 | 50 | 80 | 76 | 48 | 32 | |||
SPA 112-05 | 5 | 112 | 117.5 | 8 | 2012 | 50 | 80 | 80 | 48 | 32 | |||
SPA 118-05 | 5 | 118 | 123.5 | 2 | 2012 | 50 | 80 | 80 | 32 | 48 | |||
SPA 125-05 | 5 | 125 | 130.5 | 3 | 2012 | 50 | 80 | 92 | 24 | 32 | 24 | ||
SPA 132-05 | 5 | 132 | 137.5 | 3 | 2517 | 60 | 80 | 98 | 17.5 | 45 | 17.5 | ||
SPA 140-05 | 5 | 140 | 145.5 | 3 | 2517 | 60 | 80 | 106 | 17.5 | 45 | 17.5 | ||
SPA 150-05 | 5 | 150 | 155.5 | 3 | 2517 | 60 | 80 | 116 | 17.5 | 45 | 17.5 | ||
SPA 160-05 | 5 | 160 | 165.5 | 3 | 2517 | 60 | 80 | 126 | 17.5 | 45 | 17.5 | ||
SPA 170-05 | 5 | 170 | 175.5 | 3 | 2517 | 75 | 80 | 148 | 17.5 | 45 | 17.5 | ||
SPA 180-05 | 5 | 180 | 185.5 | 3 | 3020 | 75 | 80 | 148 | 14.5 | 51 | 14.5 | ||
SPA 190-05 | 5 | 190 | 195.5 | 2 | 3020 | 75 | 80 | 150 | 51 | 20 | |||
SPA 200-05 | 5 | 200 | 205.5 | 3 | 3020 | 75 | 80 | 165 | 14.5 | 51 | 14.5 | ||
SPA 212-05 | 5 | 212 | 217.5 | 2 | 3020 | 75 | 80 | 177 | 51 | 29 | |||
SPA 22405 | 5 | 224 | 229.5 | 2 | 3020 | 75 | 80 | 189 | 51 | 29 | |||
SPA 250-05 | 5 | 250 | 2555 | 6 | 3.020 | 75 | 10 | 80 | 215 | 14.5 | 51 | 14.5 | 150 |
SPA 280-05 | 5 | 280 | 2855 | 7 | 3535 | 90 | 10 | 80 | 245 | 4.5 | 89 | 4.5 | 170 |
SPA 315-05 | 5 | 315 | 320.5 | 7 | 3535 | 90 | 12 | 80 | 280 | 4.5 | 89 | 4.5 | 170 |
SPA 355-05 | 5 | 355 | 360.5 | 4 | 3535 | 90 | 80 | 320 | 4.5 | 89 | 4.5 | 170 | |
SPA 400-05 | 5 | 400 | 405.5 | 4 | 3535 | 90 | 80 | 365 | 4.5 | 89 | 4.5 | 170 | |
SPA 450-05 | 5 | 450 | 455.5 | 4 | 3535 | 90 | 80 | 415 | 4.5 | 89 | 4.5 | 170 | |
SPA 500-05 | 5 | 500 | 505.5 | 4 | 3535 | 90 | 80 | 465 | 4.5 | 89 | 4.5 | 170 | |
SPA 560-05 | 5 | 560 | 565.5 | 4 | 3.535 | 90 | 80 | 525 | 4.5 | 89 | 4.5 | 170 | |
SPA 630-05 | 5 | 630 | 635.5 | 4 | 3535 | 90 | 80 | 595 | 4.5 | 89 | 4.5 | 170 | |
SPA 800-05 | 5 | 800 | 805.5 | 4 | 4040 | 100 | 80 | 765 | 11 | 102 | 11 | 216 | |
SPA 1000-05 | 5 | 1000 | 1005.5 | 4 | 4545 | 110 | 80 | 965 | 17 | 114 | 17 | 225 |
