Taper Lock Pulleys SPA-6

Description

Key Features

Taper Lock Mechanism: It utilizes a taper lock bushing that mates with a taper bore on the shaft, ensuring a robust mounting and allowing for axial adjustments.
Multi-Groove Design: Often featuring multiple V-grooves or timing belt grooves to accommodate belts of varying widths and types.
Material Versatility: Available in various materials such as cast iron, aluminum alloy, steel, etc., depending on the application requirements.

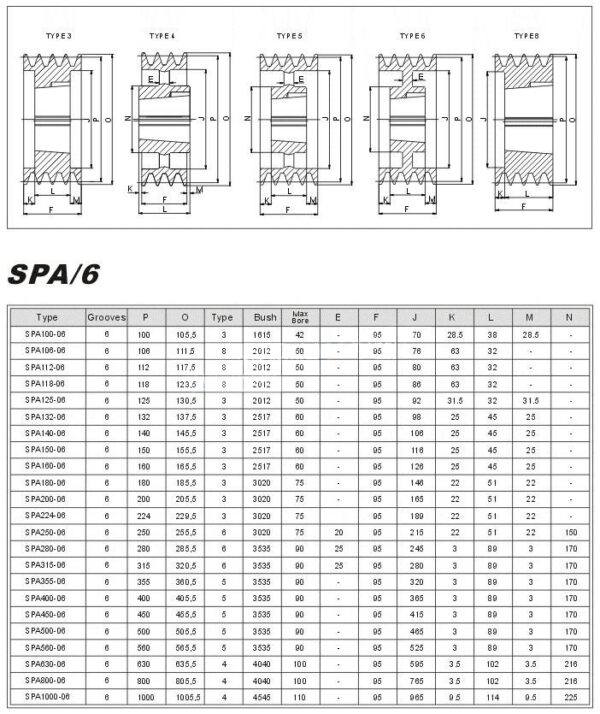

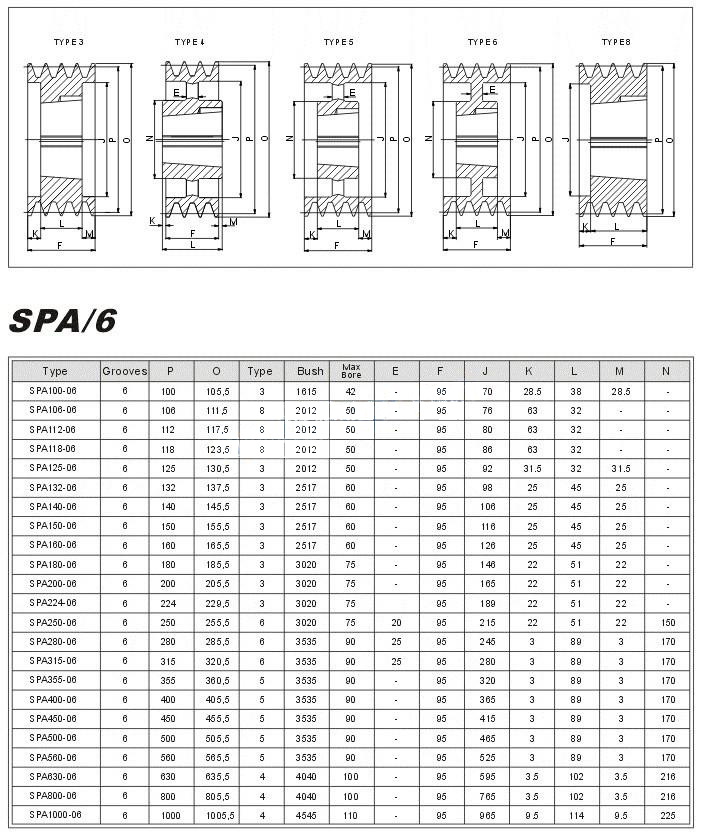

Diameter

Type Grooves P 0 Type Bush Max
Bore E F J K L M N

S PA100-06 6 100 1,055 3 1615 42 95 70 28.5 38 28.5

S PA106-06 6 106 111.5 8 2012 50 95 76 63 32

S PA112-06 6 112 1,175 8 2012 50 95 80 63 32

SPA118-06 6 118 1,235 8 2012 50 95 86 63 32

S PA125-06 6 125 1,305 3 2012 50 95 92 31.5 32 31.5

S PA132-06 6 132 1,375 3 2517 60 95 98 25 45 25

S PA140-06 6 140 1,455 3 2517 60 95 106 25 45 25

S PA150-06 6 150 1,555 3 2517 60 95 116 25 45 25

S PA160-08 6 160 1,655 3 2517 60 95 126 25 45 25

S PA180-06 6 180 1,855 3 3020 75 95 148 22 51 22

S PA200-06 6 200 2,055 3 3020 75 95 165 22 51 22

S PA224.08 6 224 2,295 3 3020 75 95 189 22 51 22

S PA250-06 6 250 2,555 6 3020 75 20 95 215 22 51 22 150

SPA280-06 6 280 2,855 6 3535 90 25 95 245 3 89 3 170

S PA315-06 6 315 3,205 6 3535 90 25 95 280 3 80 3 170

S PA355-06 6 355 3,605 5 3535 90 95 320 3 89 3 170

S PA400-06 6 400 4,055 5 3535 90 95 365 3 89 3 170

S PA450-06 6 450 4,555 5 3535 90 95 415 3 80 3 170

S PA500-08 6 500 5055 5 3535 90 95 465 3 89 3 170

S PA560-06 6 560 5,655 5 3535 90 95 525 3 80 3 170

SPA630-08 6 630 6,355 4 4040 100 95 595 3.5 102 3.5 216

S PA800-06 6 800 8,055 4 4040 100 95 765 3.5 102 3.5 216

S PA1000-06 6 1000 10,055 4 4545 110 95 965 9.5 114 9.5 225
