Taper Lock Pulleys SPC-8
SPC Taper Lock Pulleys is a V-belt pulley for Taper Lock bushes. It is made of gray cast iron. Its design is based on the ISO 4183 (DIN 2211) standard.
The pulleys are mounted to the shafts using Taper Lock cone bushes (TB 5050), thanks to which there is not only the fixing on the shaft with a keyway, but also the axial locking against displacement.

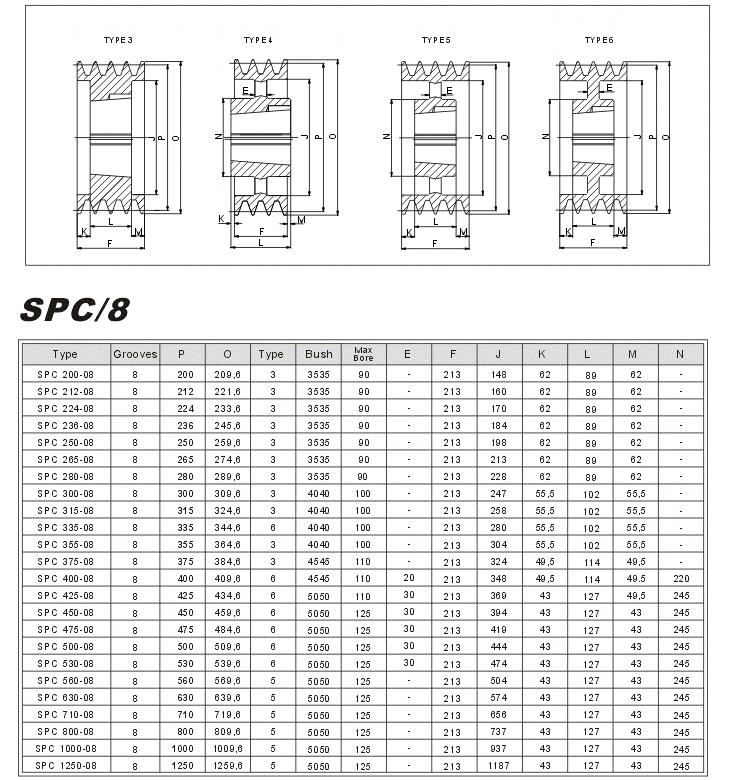

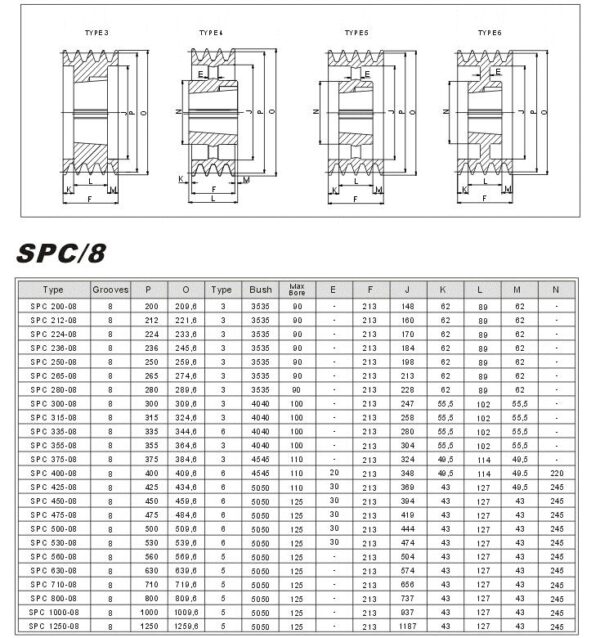

Diameter
Type | Grooves | P | Type | Bush | Max Bore | E | F | J | K | L | N | ||
SPC 200-08 | 8 | 200 | 209.6 | 3 | 3535 | 90 | . | 213 | 148 | 62 | 89 | 62 | . |
SPC 212-08 | 8 | 212 | 221.6 | 3 | 3535 | 90 | . | 213 | 160 | 62 | 89 | 62 | . |
SPC224-08 | 8 | 224 | 233.6 | 3 | 3535 | 90 | 213 | 170 | 62 | 89 | 62 | ||
SPC 236-08 | 8 | 236 | 245.6 | 3 | 3535 | 90 | 213 | 184 | 62 | 89 | 62 | ||
SPC 250-08 | 8 | 250 | 259.6 | 3 | 3535 | 90 | . | 213 | 198 | 62 | 89 | 62 | |
SPC 265-08 | 8 | 265 | 274.6 | 3 | 3535 | 90 | 213 | 213 | 62 | 89 | 62 | ||
SPC 280-08 | 8 | 280 | 289.6 | 3 | 3535 | 90 | 213 | 228 | 62 | 89 | 62 | ||
SPC300-08 | 8 | 300 | 309.6 | 3 | 4040 | 100 | . | 213 | 247 | 55,5 | 102 | 55,5 | . |
SPC 315-08 | 8 | 315 | 324.6 | 3 | 4040 | 100 | . | 213 | 258 | 55,5 | 102 | 55.5 | |
SPC 335-08 | 8 | 335 | 344.6 | 6 | 4040 | 100 | . | 213 | 280 | 55,5 | 102 | 55.5 | . |
SPC 355-08 | 8 | 355 | 364.6 | 3 | 4040 | 100 | . | 213 | 304 | 55,5 | 102 | 55.5 | . |
SPC 375-08 | 8 | 375 | 384.6 | 3 | 4545 | 110 | . | 213 | 324 | 49.5 | 114 | 49.5 | . |
SPC 400-08 | 8 | 400 | 409.6 | 6 | 4545 | 110 | 20 | 213 | 348 | 49.5 | 114 | 49.5 | 220 |
SPC 425-08 | 8 | 425 | 434.6 | 5050 | 110 | 30 | 213 | 369 | 43 | 127 | 49.5 | 245 | |
SPC 450-08 | 8 | 450 | 459.6 | 6 | 5050 | 125 | 30 | 213 | 394 | 43 | 127 | 43 | 245 |
SPC 475-08 | 8 | 475 | 484.6 | 6 | 5050 | 125 | 30 | 213 | 419 | 43 | 127 | 43 | 245 |
SPC 500-08 | 8 | 500 | 509.6 | 6 | 5050 | 125 | 30 | 213 | 444 | 43 | 127 | 43 | 245 |
SPC 530-08 | 8 | 530 | 539.6 | 6 | 5050 | 125 | 30 | 213 | 474 | 43 | 127 | 43 | 245 |
SPC 560-08 | 8 | 560 | 569.6 | 5 | 5050 | 125 | 213 | 504 | 43 | 127 | 43 | 245 | |
SPC 630-08 | 8 | 630 | 639.6 | 5 | 5050 | 125 | . | 213 | 574 | 43 | 127 | 43 | 245 |
SPC 710-08 | 8 | 710 | 719.6 | 5 | 5050 | 125 | . | 213 | 656 | 43 | 127 | 43 | 245 |
SPC 800-08 | 8 | 800 | 809.6 | 5 | 5050 | 125 | . | 213 | 737 | 43 | 127 | 43 | 245 |
SPC 1000-08 | 8 | 1000 | 1009.6 | 5 | 5050 | 125 | 213 | 937 | 43 | 127 | 43 | 245 | |
SPC 1250-08 | 8 | 1250 | 1259.6 | 5 | 5050 | 125 | 213 | 1187 | 43 | 127 | 43 | 245 |
