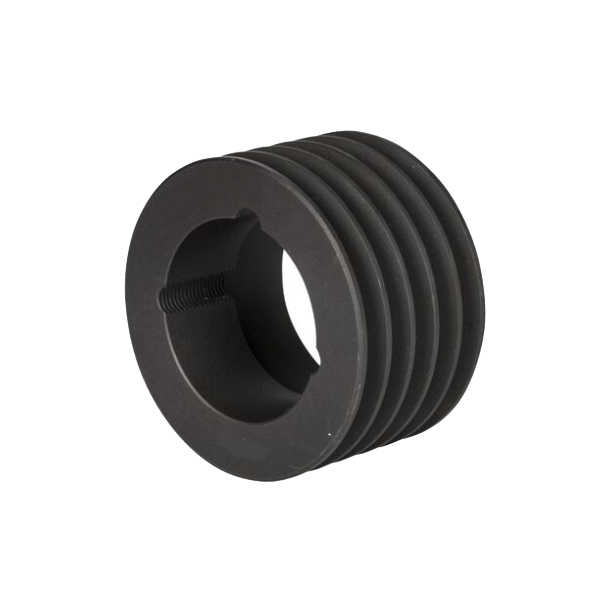

Taper Lock Pulleys SPZ-5
A tapered lock pulley is a type of pulley that allows two pulleys to be connected on a shaft. This is used in various applications such as motor and fan rotors. These pulleys usually have half-threaded holes so they are easier to install.
Taper lock pulleys are often used in complex systems. These pulleys allow the user to easily disconnect and reconnect the pulleys. The system is also easy to remove and helps control the speed of the mechanism.
Diameter

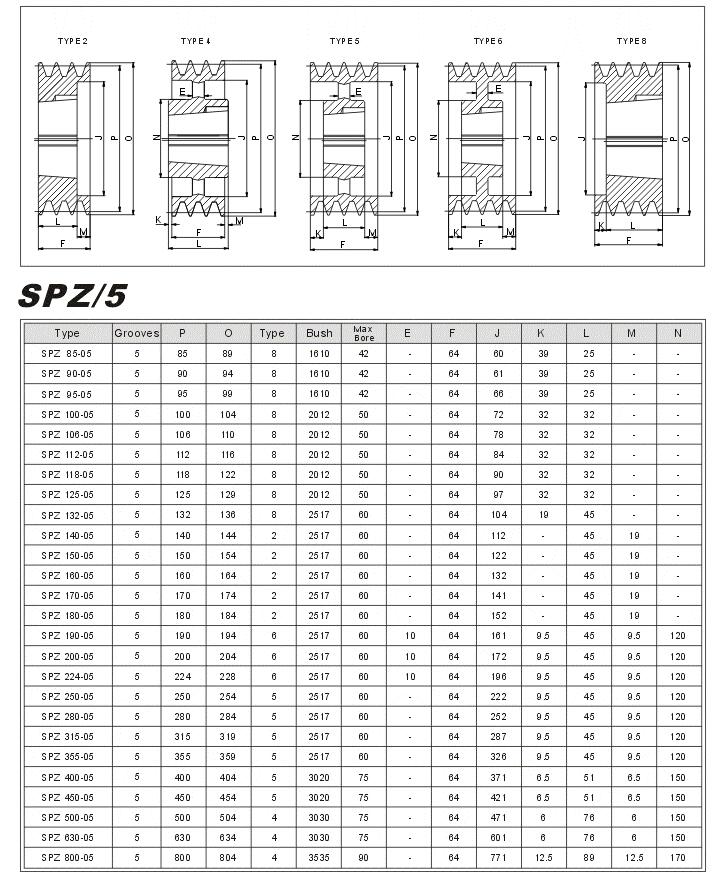

Type | Grooves | P | 0 | Type | Bush | Max B ore |
E | F | J | K | L | M | N |
S PZ 85-05 | 5 | 85 | 89 | 8 | 1610 | 42 | 64 | 60 | 39 | 25 | |||
sPZ 90-05 | 5 | 90 | 94 | 8 | 1010 | 42 | 64 | 61 | 39 | 25 | |||
S PZ 95-05 | 5 | 95 | 99 | 8 | 1610 | 42 | 64 | 66 | 39 | 25 | |||
SPZ 100-05 | 5 | 100 | 104 | 8 | 2012 | 50 | 64 | 72 | 32 | 32 | |||
S PZ 106-05 | 5 | 106 | 110 | 8 | 2012 | 50 | 64 | 78 | 32 | 32 | |||
SPZ 112-05 | 5 | 112 | 116 | 8 | 2012 | 50 | 64 | 84 | 32 | 32 | |||
S PZ 118-05 | 5 | 118 | 122 | 8 | 2012 | 50 | 64 | 90 | 32 | 32 | |||
S PZ 125-05 | 5 | 125 | 129 | 8 | 2012 | 50 | 64 | 97 | 32 | 32 | |||
S PZ 132-05 | 5 | 132 | 136 | 8 | 2517 | 60 | 64 | 104 | 19 | 45 | |||
SPZ 140-05 | 5 | 140 | 144 | 2 | 2517 | 60 | 64 | 112 | 45 | 19 | |||
S PZ 150-05 | 5 | 150 | 154 | 2 | 2517 | 60 | 64 | 122 | 45 | 19 | |||
SPZ 160-05 | 5 | 160 | 164 | 2 | 2517 | 60 | 64 | 132 | 45 | 10 | |||
SPZ 170-05 | 5 | 170 | 174 | 2 | 2517 | 60 | 64 | 141 | 45 | 19 | |||
SPZ 180-05 | 5 | 180 | 184 | 2 | 2517 | 60 | 64 | 152 | 45 | 19 | |||
SPZ 190-05 | 5 | 190 | 194 | 6 | 2517 | 60 | 10 | 64 | 161 | 9.5 | 45 | 9.5 | 120 |
SPZ 200-05 | 5 | 200 | 204 | 6 | 2517 | 60 | 10 | 64 | 172 | 9.5 | 45 | 9.5 | 120 |
S PZ 224-05 | 5 | 224 | 228 | 6 | 2517 | 60 | 10 | 64 | 196 | 9.5 | 45 | 9.5 | 120 |
SPZ 250-05 | 5 | 250 | 254 | 5 | 2517 | 60 | 64 | 222 | 9.5 | 45 | 9.5 | 120 | |
SPZ 280-05 | 5 | 280 | 284 | 5 | 2517 | 60 | 64 | 252 | 9.5 | 45 | 9.5 | 120 | |
SPZ 315-05 | 5 | 315 | 319 | 5 | 2517 | 60 | 64 | 287 | 9.5 | 45 | 9.5 | 120 | |
S PZ 355-05 | 5 | 355 | 359 | 5 | 2517 | 60 | 64 | 326 | 9.5 | 45 | 9.5 | 120 | |
SPZ 400-05 | 5 | 400 | 404 | 5 | 3020 | 75 | 64 | 371 | 6.5 | 51 | 6.5 | 150 | |
S PZ 450-05 | 5 | 450 | 454 | 5 | 3020 | 75 | 64 | 421 | 6.5 | 51 | 6.5 | 150 | |
SPZ 500-05 | 5 | 500 | 504 | 4 | 3030 | 75 | 64 | 471 | 8 | 76 | 6 | 150 | |
S PZ 630-05 | 5 | 630 | 634 | 4 | 3030 | 75 | 64 | 601 | 6 | 76 | 6 | 150 | |
SPZ 800-05 | 5 | 800 | 804 | 4 | 3535 | 90 | 64 | 771 | 12.5 | 89 | 12.5 | 170 |
