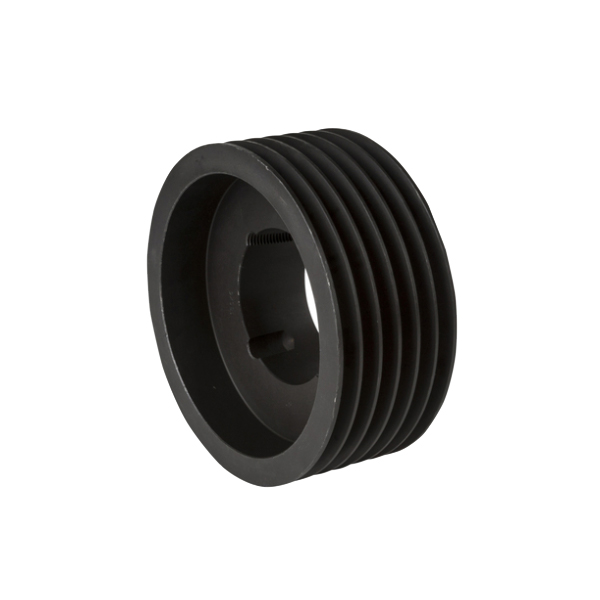

Taper Lock Pulleys SPZ-6

Taper Lock Bore V-Pulleys are a type of pulley system commonly used in machinery and industrial applications. They consist of a pulley with a V-shaped groove around its circumference, designed to guide belts or ropes.

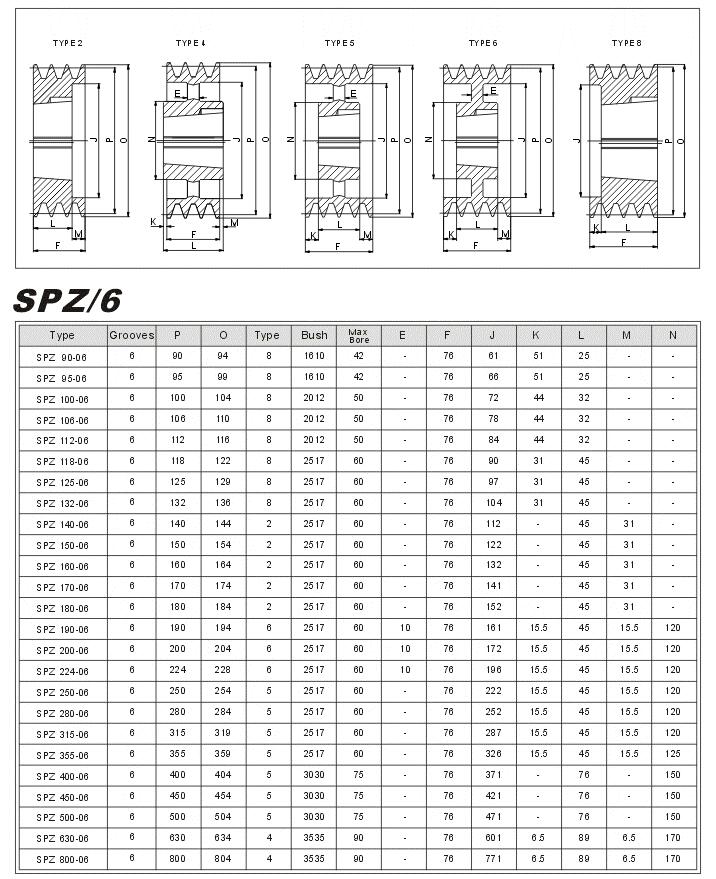

Diameter

Type	Grooves	P	。	Type	Bush	Max Bore		F	J	K	L	M	N
SPZ 90-06	6	90	94	8	1610	42		76	61	51	25
SPZ 95-06	6	95	99	8	1610	42		76	66	51	25
SPZ 100-06	6	100	104	8	2012	50		76	72	44	32
SPZ 106-06	6	106	110	8	2012	50		76	78	44	32		.
SPZ 112-06	6	112	116	8	2012	50	.	76	84	44	32	.
SPZ 118-06		118	122	8	2517	60	.	76	90	31	45	.
SPZ 125-06	6	125	129	8	2517	60		76	97	31	45
SPZ 132-06	6	132	136	8	2517	60		76	104	31	45
SPZ 140-06	6	140	144	2	2517	60	.	76	112		45	31
SPZ 150-06	6	150	154	2	2517	60		76	122		45	31
SPZ 160-06	6	160	164	2	2517	60	.	76	132		45	31	.
SPZ 170-06	6	170	174	2	2517	60	.	76	141	.	45	31
SPZ 180-06	6	180	184	2	2517	60		76	152		45	31
SPZ 190-06		190	194		2517	60	10	76	161	15.5	45	15.5	120
SPZ 200-06		200	204	6	2517	60	10	76	172	15.5	45	15.5	120
SPZ 224-06	6	224	228	6	2517	60	10	76	196	15.5	45	15.5	120
SPZ 250-06	6	250	254	5	2517	60		76	222	15.5	45	15.5	120
SPZ280-06	6	280	284	5	2517	60		76	252	15.5	45	15.5	120
SPZ 315-06		315	319	5	2517	60	.	76	287	15.5	45	15.5	120
SPZ 355-06		355	359	5	2517	60	.	76	326	15.5	45	15.5	125
SPZ 400-06	6	400	404	5	3030	75		76	371		76		150
SPZ 450-06	6	450	454	5	3030	75	.	76	421		76		150
SPZ500-06	6	500	504	5	3030	75		76	471	.	76		150
SPZ 630-06	6	630	634	4	3535	90	.	76	601	6.5	89	6.5	170
SPZ800-06		800	804	4	3535	90		70	771	6.5	89	6.5	170
