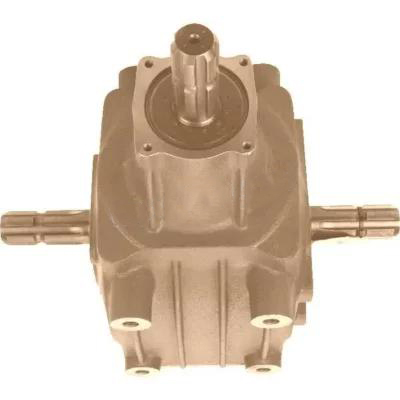

Rotary Tillers Gearbox – Replacement of Comer Code TB-22C

Rotary Tillers Gearbox – Replacement of Comer Code TB-22C

A rotary tillers gearbox TB-22C is a mechanical device that is used in rotary tillers or cultivators. Rotary tiller gearbox transfers power from the tractor to the rotary tiller blades to control the speed and torque of the blades, providing the necessary force to break up and loosen the soil. And the rotary tiller gearbox typically includes a series of gears and shafts that are designed to handle the high torque requirements of the rotary tiller. The rotary tiller gearbox TB-22C can be driven by a power take-off (PTO) drive shaft connected to the tractor. It is an essential component of rotary tillers that improves efficiency and productivity in farming operations.

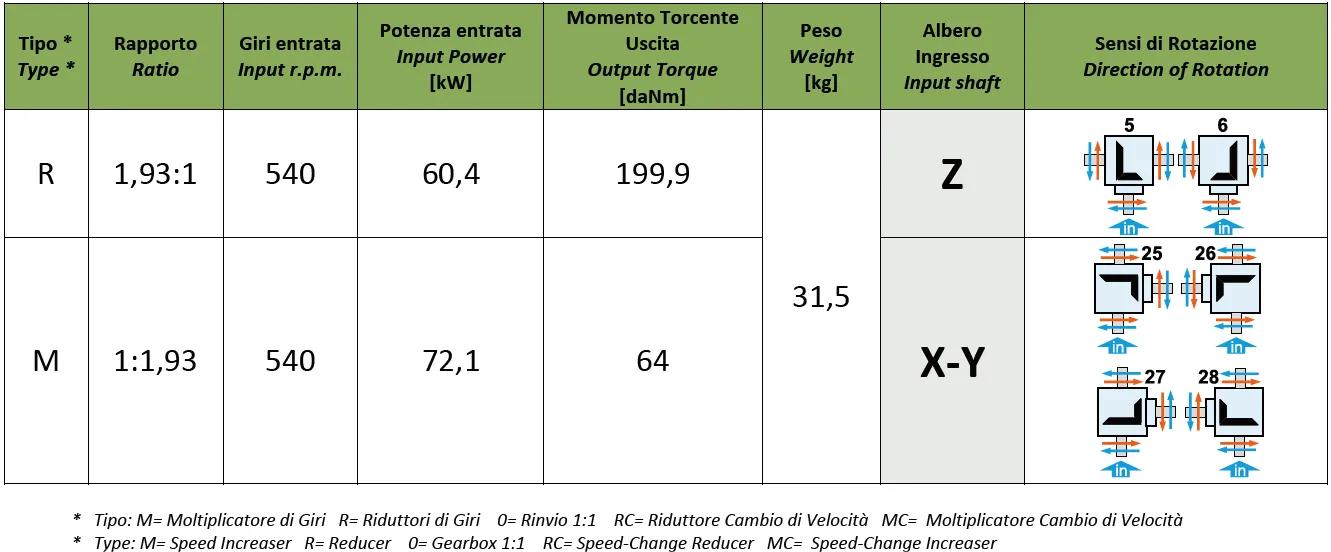

Specifications of Rotary Tiller Gearbox TB-22C

Parts of Rotary Tiller Gearbox TB-22C

A rotary tiller gearbox typically consists of several parts that work together to transmit power and control the speed and torque of the tiller blades. Some common parts of a rotary tiller gearbox include:
(1) Input shaft: The input shaft is connected to the tractor’s power take-off (PTO) and transmits power to the gearbox.
(2) Output shaft: The output shaft is connected to the tiller blades and transmits power from the gearbox to the blades.
(3) Gears: The gears are the primary components that transmit power and control speed and torque. There are typically several sets of gears, each with a specific gear ratio to control the tiller blade speed and torque.
(4) Seals: The seals are used to prevent oil leaks and contamination from dirt and other debris.
(5) Bearings: The bearings support the shafts and gears and allow them to rotate smoothly, reducing friction and wear.
(6) Housing: The gearbox housing provides a protective enclosure for the internal components and helps keep them aligned and functioning properly.
(7) Lubrication system: The lubrication system ensures that the gears, bearings, and other components stay properly lubricated to reduce wear and extend their lifespan.
Overall, each part plays a critical role in the functioning of the rotary tiller gearbox, and any damage to any part can impact the overall performance of the tiller. It is important to regularly inspect the rotary tiller gearbox for signs of wear and tear and to replace any worn or damaged parts immediately.

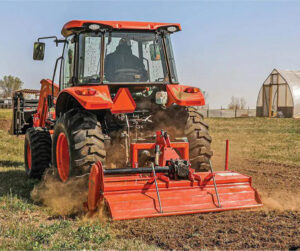

How Does the Rotary Tiller Gearbox Work?

The rotary tiller gearbox works by transmitting power from the tractor to the tiller blades while controlling the speed and torque of the blades. Here’s how it works:

1. Transferr power from the tractor’s PTO shaft to the rotary tiller gearbox input shaft.
2. The input shaft turns a series of gears inside the rotary tiller gearbox with different gear ratios to control the speed and torque of the blades.
3. The output shaft is connected to the tiller blades, which rotate in the soil to till it.
4. Seals, bearings, and other components inside the rotary tiller gearbox help to reduce friction and wear and keep the gearbox running smoothly.
5. The rotary tiller gearbox is lubricated with oil to help dissipate heat and reduce friction between the gears and other moving parts.
6. The operator can adjust the speed and torque of the blades by adjusting the tractor’s PTO shaft speed or by using any speed control mechanisms provided on the rotary tiller gearbox.

Overall, the rotary tiller gearbox is a critical component that helps to increase agricultural efficiency and productivity by efficiently transmitting power to tiller blades while controlling their speed and torque.

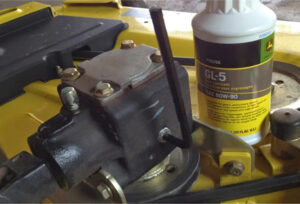

Rotary Tiller Gearbox Oil Change Operation

Performing periodic oil changes is an essential aspect of maintaining the performance and longevity of rotary tiller gearboxes. A rotary tiller gearbox oil change operation involves the following steps:

• Preparation: Ensure that the rotary tiller gearbox is cool and have all the necessary tools and oil are ready. Wear protective gloves and clothing since oil and components can be hot.
• Removal of drain plug: Locate the drain plug at the bottom of the rotary tiller gearbox and remove it using an adjustable wrench or socket. The oil will drain from the gearbox into a suitable container beneath.
• Inspection: As the oil drains, inspect the quality of the oil and its color. If the oil is milky white or has a burnt smell, replace it entirely.
• Refilling: Once the oil has completely drained from the rotary tiller gearbox, replace the drain plug and fill the rotary tiller gearbox with new oil. Check the tiller gearbox manual for specific grade and viscosity requirements based on the particular model.
• Verification: After adding the new oil, verify that the rotary tiller gearbox oil level is correct. Use a dipstick, if available, to check the oil level. Fill the gearbox with more oil if needed.
• Run: Turn the rotary tiller gearbox by hand or run it briefly to help circulate the new oil and distribute it fully on all surfaces.
• Re-inspection: Once the rotary tiller gearbox has been run after refill, check the oil level again.

In conclusion, rotary tiller gearbox oil change operations require proper preparation, inspection, and use of specific oil grades to function effectively. It is advisable to replace old oil at periodic intervals regularly to keep the rotary tiller gearbox functioning efficiently for a longer duration.

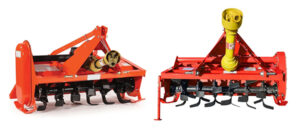

PTO Shaft and Rotary Tiller Gearboxes

A PTO (Power Take-Off) shaft is a drivetrain component that transfers power from a tractor to an implement or attachment. A rotary tiller gearbox is a specific type of gearbox used in rotary tillers. Which is designed to transfer power from a tractor PTO shaft to the blades or other components of the tiller to prepare the soil for planting. Both components are important for the operation of a rotary tiller. And work together to ensure that the tiller blades are able to properly break up the soil. The PTO shaft connects the tractor to the tiller, while the gearbox controls the speed of the tines or blades of the tiller. Different models or types of rotary tiller gearboxes may have different specifications or features, such as varying gear ratios, oil-filled casings, or the ability to adjust the speed of the tines.

A PTO shaft is a critical component for rotary tiller gearboxes that are powered by tractors. The PTO shaft connects the power output of the tractor to the gearbox, which in turn transmits the power to the tiller blades. Here are some important aspects related to PTO shafts for rotary tiller gearboxes:

• PTO Shaft Length and Size: One of the critical aspects of selecting the right PTO shaft is the length and size. The length of the shaft should be such that it connects the tractor PTO output shaft to the gearbox input shaft without any obstructions or interference. The size or diameter of the PTO shaft is also equally important and should match the rotary tiller gearbox input specifications.

• PTO Shaft Safety: PTO shafts are powerful rotating components and can be dangerous if not handled with care. It is important to ensure that the PTO shaft is free of any damage, wear, and tear before operation. Additionally, it is highly recommended to use guards and shields to protect the operator in the event of PTO shaft failure.

• PTO Shaft Maintenance: Regular maintenance of PTO shafts is essential for their smooth operation. This includes lubrication, an inspection of components for damage and wear, tightening of loose bolts, replacement of damaged or worn components, and cleaning.

• PTO Shaft Compatibility: It is essential to ensure that the PTO shaft is compatible with the specific rotary tiller gearbox that it will be used for. This includes the input and output specs, the gear ratio, and the torque rating.

In conclusion. The PTO shaft is a critical component that is responsible for the transmission of power from the tractor to the rotary tiller gearbox. It is crucial to consider the length and size, safety, maintenance. And compatibility when selecting and using a PTO shaft for rotary tiller gearboxes.

We Also Provide Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes. Such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes. And rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes. Flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes. Micro tiller gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy flail mower gearboxes, please get in touch with us.
