Rotary Tillers Gearbox – Replacement of Comer Code TB-278C

Rotary Tiller Gearboxes – Replacement of Comer Code TB-278C

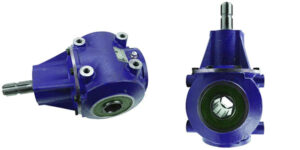

Rotary tiller gearbox TB-278C is a type of agricultural gearbox that is specifically designed for use in rotary tillers. It is a compact and durable gearbox that is designed to withstand the high loads and stresses encountered during tilling operations. The TB-278C rotary tiller gearbox provides a high torque capacity, allowing it to efficiently transfer power from the PTO shaft to the tiller blades. This gearbox is suitable for use with tractors of varying horsepower and can operate in a variety of soil conditions.

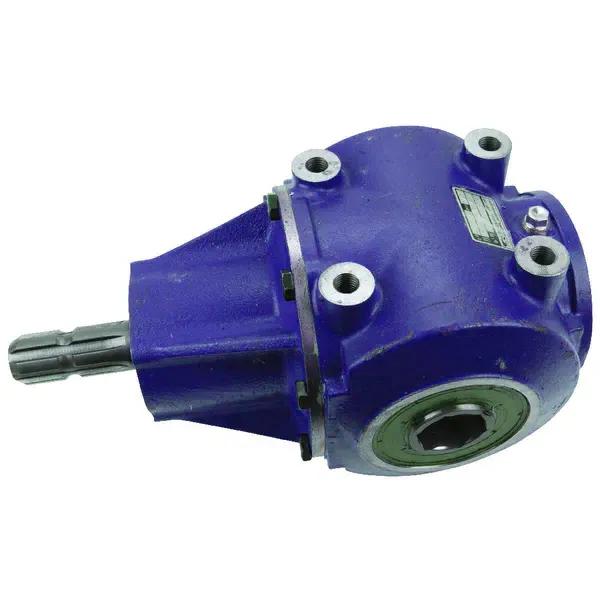

The rotary tiller gearbox TB-278C features a cast iron housing that provides excellent strength and durability, helping to ensure reliable performance and long service life. It has a 1-3/8 inch, six-spline input shaft and a 1-3/8 inch, six-spline output shaft, making it compatible with standard PTO shafts. The gearbox also features a gear ratio of 1:1.46, which helps to optimize the power transfer from the tractor to the tiller blades.

Overall, the TB-278C rotary tiller gearbox is a dependable and efficient gearbox that is designed to meet the high demands of rotary tiller operations.

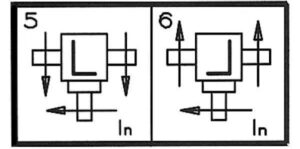

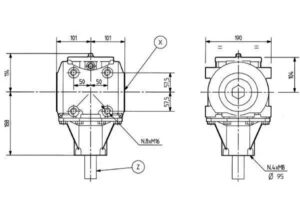

Specifications of Rotary Tiller Gearbox TB-278C

Benefits of Rotary Tiller Gearbox TB-278C

There are several benefits of using the rotary tiller gearbox TB-278C, including:

(1) High Torque Capacity: The TB-278C rotary tiller gearbox features a high torque capacity, allowing it to efficiently transfer power from the PTO shaft to the tiller blades. This results in more effective soil preparation and increased productivity.

(2) Durable Construction: The rotary tiller gearbox TB-278C is constructed from high-quality materials, including cast iron housing, which provides excellent strength and durability. This helps to ensure reliable performance and long service life.

(3) Standard Compatibility: The rotary tiller gearbox TB-278C is designed to work with standard PTO shafts, making it easy to integrate into existing equipment and systems.

(4) Wide Range of Applications: The rotary tiller gearbox TB-278C is suitable for use with tractors of varying horsepower and can operate in a variety of soil conditions, making it a versatile solution for agricultural applications.

(5) Efficient Power Transfer: The TB-278C rotary tiller gearbox has a gear ratio of 1:1.46, which helps to optimize the power transfer from the tractor to the tiller blades. This results in more efficient and effective tilling operations.

Overall, the rotary tiller gearbox TB-278C is a durable and efficient gearbox that can help to increase productivity and improve soil preparation in agricultural applications.

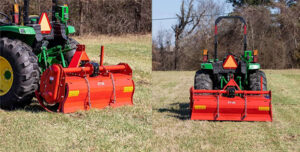

Where Are Rotary Tiller Gearboxes Used?

Rotary tiller gearboxes are used in agricultural applications for soil preparation and are commonly found in farming and gardening equipment such as rotary tillers, cultivators, and plows. They are used to transmit power from the tractor’s power take-off (PTO) shaft to the tiller blades or other soil preparation tools.

Rotary tiller gearboxes are used in a variety of soil types, including sandy, loamy, and clay soils, and are especially useful in breaking up compacted soil, removing weeds, and preparing the soil for planting. They are commonly used for preparing garden beds, vegetable patches, and flower beds in residential gardening and for larger-scale soil preparation in commercial agriculture.

In addition to their use in agriculture, rotary tiller gearboxes can also be used in other machineries, such as concrete mixers, pump drives, and other applications that require a high torque capacity and efficient power transfer.

Rotary Tiller Gearbox Oil Change Operation Steps

Like any other gearbox, a rotary tiller gearbox relies on oil to lubricate its internal components, prevent wear, and dissipate heat. Over time, the oil can become contaminated or degraded, reducing its effectiveness and potentially damaging the gearbox. Therefore, regular oil changes are essential to maintain the rotary tiller gearbox’s proper functioning.
To change the oil in a rotary tiller gearbox, follow these simple steps:
First, warm up the rotary tiller gearbox by running it for several minutes. This helps to loosen any debris and makes the oil easier to drain.
Next, locate the oil drain plug on the bottom of the rotary tiller gearbox. Place a container underneath to catch the old oil, then remove the plug and let the oil drain completely.
After the old oil has drained out, replace the drain plug and remove the rotary tiller gearbox’s oil fill plug located on the side of the gearbox.
Refill the gearbox with the recommended type and amount of oil using a funnel to prevent spills. Check the rotary tiller gearbox’s owner’s manual or manufacturer’s recommendations for the appropriate oil type and amount.
Replace the oil fill plug, then start the engine and run the rotary tiller gearbox for a few minutes to circulate the new oil.
Check the oil level using the gearbox’s dipstick located on the side of the gearbox. Add more oil as needed to reach the proper level.
By following these steps, you can ensure that your rotary tiller gearbox is properly lubricating and protecting, allowing it to perform effectively and efficiently.

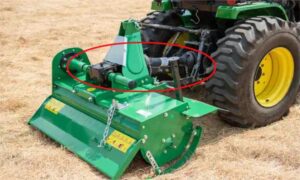

PTO Shaft for Rotary Tiller Gearbox

A PTO (Power Take-Off) shaft is an essential component that connects the rotary tiller gearbox to the power source, such as a tractor or other motorized equipment. It transfers the rotational energy from the engine to the gearbox, allowing the rotary tiller to operate and prepare the soil.

When selecting a PTO shaft for a rotary tiller gearbox, you need to consider several factors to ensure compatibility and safety. These include:

• Size: Check the diameter of the PTO shaft required for your specific rotary tiller gearbox, which may vary depending on the model and manufacturer. Make sure that the PTO shaft you select matches the gearbox’s specifications.
• Length: Ensure that the PTO shaft is long enough to reach from the rotary tiller gearbox to the tractor’s PTO connector without stretching or straining.
• Safety: Choose a PTO shaft that includes safety features such as a shield or guard to protect against entanglement and other hazards.
• Durability: Look for a high-quality PTO shaft that can withstand the heavy-duty demands of rotary tiller operation, with features such as strong metal construction and corrosion resistance.

Remember to always follow the manufacturer’s instructions and safety guidelines when installing and using a PTO shaft for a rotary tiller gearbox, and regularly inspect the shaft for wear or damage to ensure safe and efficient operation.

How to Properly Maintain the Rotary Tiller Gearbox?

Proper maintenance of the rotary tiller gearbox is essential to ensure its longevity and optimal performance. Here are some tips for maintaining your rotary tiller gearbox:

• Oil Changes: Regularly change the rotary tiller gearbox oil according to the manufacturer’s recommendation, as contaminated or degraded oil damages the gearbox. Use the recommended oil type and amount for the best results.
• Inspect Gearbox: Regularly inspect the rotary tiller gearbox for any wear or damage, such as cracks or leaks, and replace any damaged parts immediately.
• Check Fasteners: Check all fasteners, such as nuts and bolts, to ensure they are tight and secure.
• Keep Clean: Keep the rotary tiller gearbox clean by removing any debris or dirt buildup that may hinder its performance.
• Grease Fittings: Grease all the fittings regularly to ensure smooth operation.
• Monitor Operation: Monitor the rotary tiller gearbox’s operation and listen for any unusual noises or vibrations that may indicate a problem.
• Store Properly: When storing the rototiller, store the rotary tiller gearbox in a dry, clean location, and protect it from any damage that may occur.

Regular maintenance of the rotary tiller gearbox will ensure its longevity and functionality and help to prevent costly repairs. Follow the manufacturer’s recommended maintenance schedule and always exercise caution and safety when working around the gearbox.

We also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes. Such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearboxes. And corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes. Round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy rotary tiller gearboxes, please get in touch with us.
