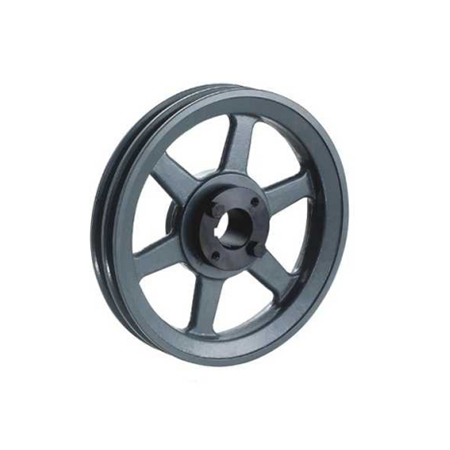

TB Gripbelt Sheaves with Split Taper Bushings

Description

Table No.1

Bore Range	Keyseat
1/2″ —9/16″	1/8″ x 1/16″
5/8 — 7/8	3/16 x 3/32
15/16 —1 1/4	1/4 x 1/8
1 5/16—1 3/8	5/16×5/32
1 7/16—1 3/4	3/8×3/16
1 13/16 —2 1/4	1/2 x 1/4
2 5/16 — 2 11/16	5/8×5/16

1 3/8″Bore bushings also available with 3/8″x3/16″ Keyseat.

Table No.2

Bushing Dimension

Part

No.
Dimensions Bore Range Wt.

Lbs.

M L G X E T U D H

P1 2 3/16″ 1 15/16″ 5/8″ 1 5/16″ 1/4″ 1 17/32″ 13/32″ 1 15/16″ 3″ 1/2″-1 3/4″ 1 1/4

P2 3 3/16 215/16 5/8 2 5/16 1/4 2 17/32 13/32 1 15/16 3 3/4-1 3/4 1 1/2

Q1 2 25/32 2 1/2 3/4 1 3/4 9/32 1 31/32 17/32 2 7/8 4 1/8 3/4-2 11/16 3 1/2

Q2 3 25/32 3 1/2 3/4 2 3/4 9/32 2 31/32 17/32 2 7/8 4 1/8 1-2 5/8 4 1/2

TB Gripbelt Sheaves with Split Taper Bushings

Table No.1

DIAMETERS 1 GROOVE，F = 1″ ;2 GROOVES，F=1 3/4″

Datum

“A”
Datum

“B”

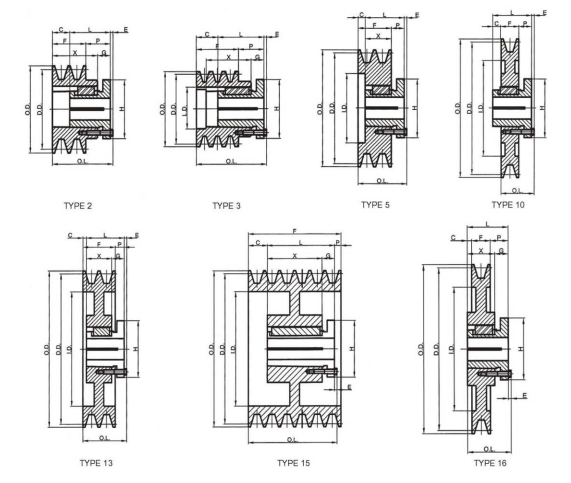

Outside Inside Part Number Type Dimensions wt.

Less

Bush

Sheave Bushing O.L. L p c H G X E

3.0″ 3.4″ 3.75″ — 1TB34 P1 2 2 5/16 1 15/16 1 1/16 1/8 3 5/8″ 1 7/16 1/4″ 2.0

3.2 3.6 3.95 _ 1TB36 P1 2 2 5/16 1 15/16 1 1/16 1/8 3 5/8 1 7/16 1/4 2.3

3.4 3.8 4.15 _ 1TB38 P1 2 2 5/16 1 15/16 1 1/16 1/8 3 5/8 1 7/16 1/4 2.6

3.6 4 4.35 _ 1TB40 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 2.1

3.8 4.2 4.55 _ 1TB42 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 2.4

4.0 4.4 4.75 _ 1TB44 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 2.8

4.2 4.6 4.95 _ 1TB46 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 3.1

4.4 4.8 5.15 _ 1TB48 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 3.5

4.6 5.0 5.35 _ 1TB50 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 3.9

4.8 5.2 5.55 _ 1TB52 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 4.1

5.0 5.4 5.75 _ 1TB54 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 4.6

5.2 5.6 5.95 — 1TB56 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 5.1

5.4 5.8 6.15 _ 1TB58 P1 10-Sol. 2 3/16 1 15/16 5/8 5/16 3 _ 1/4 5.6

5.6 6 6.35 4 1/2″ 1TB60 P1 10-Web 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 6.0

5.8 6.2 6.55 4 11/16″ 1TB62 P1 10-Web 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 5.5

6.0 6.4 6.75 4 7/8 1TB64 P1 10-Web 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 5.8

6.2 6.6 6.95 5 1/16 1TB66 P1 10-Web 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 5.9

6.4 6.8 7.15 5 5/16 1TB68 P1 10-Web 2 3/16 1 15/16 5/8 5/16 3 — — 1/4 6.1

6.6 7 7.35 5 1/2 1TB70 P1 16-Arm 2 3/16 1 15/16 25/32 5/32 3 5/8 1 5/16 1/4 6.4

7.0 7.4 7.75 5 15/16 1TB74 P1 16-Arm 2 3/16 1 15/16 25/32 5/32 3 5/8 1 5/16 1/4 7.3

7.6 8.0 8.35 6 1/2 1TB80 P1 16-Arm 2 3/16 1 15/16 25/32 5/32 3 5/8 1 5/16 1/4 7.8

8.2 8.6 8.95 7 1/16 1TB86 P1 16-Arm 2 3/16 1 15/16 25/32 5/32 3 5/8 15/16 1/4 8.6

8.6 9 9.35 7 1/2 1TB90 P1 16-Arm 2 3/16 1 15/16 25/32 5/32 3 5/8 1 5/16 1/4 8.9

9.0 9.4 9.75 7 15/16 1TB94 P1 16-Arm 2 3/16 1 15/16 25/32 5/32 3 5/8 1 5/16 1/4 9.1

10.6 11 11.35 9 7/16 1TB110 P1 16-Arm 2 3/16 1 15/16 25/32 5/32 3 5/8 1 5/16 1/4 11.1

12.0 12.4 12.75 10 15/16 1TB124 Q1 16-Arm 2 25/32 2 1/2 1 1/8 3/8 4 1/8 3/4 1 3/4 9/32 17.8

13.2 13.6 13.95 12 1/16 1TB136 Q1 16-Arm 2 25/32 2 1/2 1 1/8 3/8 4 1/8 3/4 1 3/4 9/32 18.2

15.0 15.4 15.75 13 15/16 1TB154 Q1 16-Arm 2 25/32 2 1/2 1 1/8 3/8 4 1/8 3/4 1 3/4 9/32 20.3

15.6 16.0 16.35 14 1/2 1TB160 Q1 16-Arm 2 25/32 2 1/2 1 1/8 3/8 4 1/8 3/4 1 3/4 9/32 22.0

18.0 18.4 18.75 16 15/16 1TB184 Q1 16-Arm 2 25/32 2 1/2 1 1/8 3/8 4 1/8 3/4 1 3/4 9/32 27.5

19.5 20 20.35 18 1/2 1TB200 Q1 16-Arm 2 25/32 2 1/2 1 1/8 3/8 4 1/8 3/4 1 3/4 9/32 27.2

24.5 25 25.35 23 1/2 1TB250 Q1 16-Arm 2 25/32 2 1/2 1 1/8 3/8 4 1/8 3/4 1 3/4 9/32 42.4

29.5 30.0 30.35 28 1/2 1TB300 Q1 16-Arm 2 25/32 2 1/2 1 1/8 3/8 4 1/8 3/4 1 3/4 9/32 56.0

37.5 38.0 38.35 36 1/2 1TB380 Q1 16-Arm 2 25/32 2 1/2 1 1/8 3/8 4 1/8 3/4 1 3/4 9/32 78.0

3.0″ 3.4″ 3.75″ — 2TB34 P1 2 31/16″ 1 15/16″ 1 1/16″ 7/8″ 3″ 5/8″ 2 3/16″ 1/4″ 2.9

3.2 3.6 3.95 _ 2TB36 P1 2 3 1/16 1 15/16 1 1/16 7/8 3 5/8 2 3/16 1/4 3.8

3.4 3.8 4.15 2 5/16″ 2TB38 P1 5 2 5/8 1 15/16 5/8 7/16 3 — 1 5/16 1/4 3.0

3.6 4 4.35 2 1/2 2TB40 P1 5 2 5/8 1 15/16 5/8 7/16 3 — 1 5/16 1/4 3.8

3.8 4.2 4.55 211/16 2TB42 P1 5 2 5/8 1 15/16 5/8 7/16 3 — 1 5/16 1/4 3.9

4.0 4.4 4.75 2 7/8 2TB44 P1 13-Sol. 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 3.9

4.2 4.6 4.95 3 1/16 2TB46 P1 13-Sol. 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 4.5

4.4 4.8 5.15 3 5/16 2TB48 P1 13-Sol. 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 5.3

4.6 5.0 5.35 3 1/2 2TB50 P1 13-Sol. 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 5.6

4.8 5.2 5.55 311/16 2TB52 P1 13-Sol. 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 6.1

5.0 5.4 5.75 3 7/8 2TB54 P1 13-Sol. 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 6.5

5.2 5.6 5.95 4 1/16 2TB56 P1 13-Sol. 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 7.4

5.4 5.8 6.15 4 5/16 2TB58 P1 13-Sol. 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 8.0

5.6 6 6.35 4 1/2 2TB60 P1 13-Sol. 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 8.9

5.8 6.2 6.55 4 11/16 2TB62 P1 13-Web 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 7.6

6.0 6.4 6.75 4 7/8 2TB64 P1 13-Web 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 7.8

6.2 6.6 6.95 5 1/16 2TB66 P1 13-Web 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 8.3

6.4 6.8 7.15 5 5/16 2TB68 P1 13-Web 2 3/16 1 15/16 3/16 0 3 5/8 1 5/16 1/4 8.8

6.6 7 7.35 5 1/2 2TB70 Q1 13-Web 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 11.1

7.0 7.4 7.75 5 15/16 2TB74 Q1 13-Web 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 11.5

7.6 8.0 8.35 6 1/2 2TB80 Q1 13-Web 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 12.8

8.2 8.6 8.95 7 1/16 2TB86 Q1 13-Web 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 16.0

8.6 9 9.35 7 1/2 2TB90 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 15.1

9.0 9.4 9.75 7 15/16 2TB94 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 15.5

10.6 11 11.35 9 7/16 2TB110 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 18.9

12.0 12.4 12.75 10 15/16 2TB124 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 21.1

13.2 13.6 13.95 12 1/16 2TB136 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 23.0

15.0 15.4 15.75 13 15/16 2TB154 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 24.8

15.6 16.0 16.35 14 1/2 2TB160 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 27.0

18.0 18.4 18.75 16 15/16 2TB184 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 32.3

19.5 20 20.35 18 1/2 2TB200 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 42.3

24.5 25 25.35 23 1/2 2TB250 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 50.3

29.5 30.0 30.35 28 1/2 2TB300 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 68.8

37.5 38.0 38.35 36 1/2 2TB380 Q1 13-Arm 2 25/32 2 1/2 3/4 0 4 1/8 3/4 1 3/4 9/32 95.5

TB Gripbelt Sheaves with Split Taper Bushings

Table No. 1

DIAMETERS 3 GROOVE, F = 2 1/2″ ;4 GROOVES,F=3 1/4″

Datum

“A”
Datum

“B”
Outside inside Part Number Type Dimensions Wt. Less Bush.

Sheave Bushing 〇.L. L p c H G X E

3.0″ 3.4″ 3.75″ 2″ 3TB34 P2 3 3 13/16″ 2 15/16″ 1 1/16″ 5/8″ 3″ 5/8″ 2 5/16″ 1/4″ 3.8

3.2 3.6 3.95 2 1/16 3TB36 P2 3 3 13/16 2 15/16 1 1/16 5/8 3 5/8 2 5/16 1/4 4.4

3.4 3.8 4.15 2 5/16 3TB38 P1 5 3 3/8 1 15/16 5/8 13/16 3 — 1 5/16 1/4 3.8

3.6 4.0 4.35 2 1/2 3TB40 P1 5 3 3/8 1 15/16 5/8 13/16 3 — 1 5/16 1/4 4.5

3.8 4.2 4.55 2 11/16 3TB42 P1 5 3 3/8 1 15/16 5/8 13/16 3 — 1 5/16 1/4 4.9

4.0 4.4 4.75 2 7/8 3TB44 P1 13-Sol. 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 5.1

4.2 4.6 4.95 3 1/16 3TB46 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 6.0

4.4 4.8 5.15 3 5/16 3TB48 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 6.3

4.6 5.0 5.35 3 1/2 3TB50 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 6.9

4.8 5.2 5.55 3 11/16 3TB52 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 7.5

5.0 5.4 5.75 3 7/8 3TB54 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 8.3

5.2 5.6 5.95 4 1/16 3TB56 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 9.0

5.4 5.8 6.15 4 5/16 3TB58 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 9.6

5.6 6.0 6.35 4 1/2 3TB60 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 10.5

5.8 6.2 6.55 4 11/16 3TB62 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 9.4

6.0 6.4 6.75 4 7/8 3TB64 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 9.5

6.2 6.6 6.95 5 1/16 3TB66 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 10.0

6.4 6.8 7.15 5 5/16 3TB68 P1 13-Web 2 3/4 1 15/16 0 9/16 3 5/8 1 5/16 1/4 10.4

6.6 7.0 7.35 5 1/2 3TB70 Q1 13-Web 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 13.0

7.0 7.4 7.75 5 15/16 3TB74 Q1 13-Web 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 13.3

7.6 8.0 8.35 6 1/2 3TB80 Q1 13-Web 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 15.3

8.2 8.6 8.95 7 1/16 3TB86 Q1 13-Web 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 18.9

8.6 9.0 9.35 7 1/2 3TB90 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 18.1

9.0 9.4 9.75 7 15/16 3TB94 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 18.0

10.6 11.0 11.35 9 7/16 3TB110 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 21.3

12.0 12.4 12.75 10 15/16 3TB124 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 25.4

13.2 13.6 13.95 12 1/16 3TB136 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 27.4

15.0 15.4 15.75 13 15/16 3TB154 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 29.8

15.6 16.0 16.35 14 1/2 3TB160 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 32.0

18.0 18.4 18.75 16 15/16 3TB184 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 37.8

19.5 20.0 20.35 18 1/2 3TB200 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 49.9

24.5 25.0 25.35 23 1/2 3TB250 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 61.0

29.5 30.0 30.35 28 1/2 3TB300 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 78.5

37.5 38.0 38.35 36 1/2 3TB380 Q1 13-Arm 3 5/32 2 1/2 3/8 3/8 4 1/8 3/4 1 3/4 9/32 110.0

3.0″ 3.4″ 3.75″ 2″ 4TB34 P2 3 4 9/16″ 2 15/16″ 1 1/16″ 1 3/8″ 3__ 5/8″ 2 5/16″ 1/4″ 4.5

3.2 3.6 3.95 2 1/16 4TB36 P2 3 4 9/16 2 15/16 1 1/16 1 3/8 3 5/8 2 5/16 1/4 5.3

3.4 3.8 4.15 2 5/16 4TB38 P1 5 4 1/8 1 15/16 5/8 1 15/16 3 — 1 5/16 1/4 4.8

3.6 4.0 4.35 2 1/2 4TB40 P1 5 4 1/8 1 15/16 5/8 1 15/16 3 — 1 5/16 1/4 5.5

3.8 4.2 4.55 2 11/16 4TB42 P1 5 4 1/8 1 15/16 5/8 1 15/16 3 — 1 5/16 1/4 5.9

4.0 4.4 4.75 2 7/8 4TB44 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 6.5

4.2 4.6 4.95 3 1/16 4TB46 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 7.1

4.4 4.8 5.15 3 5/16 4TB48 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 7.5

4.6 5.0 5.35 3 1/2 4TB50 P1 13-Web 3 1/2 1 15/16 0 15/16 3 5/8 1 5/16 1/4 8.3

4.8 5.2 5.55 3 11/16 4TB52 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 9.1

5.0 5.4 5.75 3 7/8 4TB54 P1 13-Web 3 1/2 1 15/16 0 15/16 3 5/8 1 5/16 1/4 9.6

5.2 5.6 5.95 4 1/16 4TB56 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 10.6

5.4 5.8 6.15 4 5/16 4TB58 P1 13-Web 3 1/2 1 15/16 0 15/16 3 5/8 1 5/16 1/4 11.6

5.6 6.0 6.35 4 1/2 4TB60 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 11.9

5.8 6.2 6.55 4 11/16 4TB62 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 11.1

6.0 6.4 6.75 4 7/8 4TB64 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 11.8

6.2 6.6 6.95 5 1/16 4TB66 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 12.0

6.4 6.8 7.15 5 5/16 4TB68 P1 13-Web 3 1/2 1 15/16 0 1 5/16 3 5/8 1 5/16 1/4 12.5

6.6 7.0 7.35 5 1/2 4TB70 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 15.3

7.0 7.4 7.75 5 15/16 4TB74 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 15.3

7.6 8.0 8.35 6 1/2 4TB80 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 17.0

8.2 8.6 8.95 7 1/16 4TB86 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 20.8

8.6 9.0 9.35 7 1/2 4TB90 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 20.6

9.0 9.4 9.75 7 15/16 4TB94 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 20.1

10.6 11.0 11.35 9 7/16 4TB110 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 25.8

12.0 12.4 12.75 10 15/16 4TB124 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 27.5

13.2 13.6 13.95 12 1/16 4TB136 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 31.5

15.0 15.4 15.75 13 15/16 4TB154 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 36.0

15.6 16.0 16.35 141/2 4TB160 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 39.0

18.0 18.4 18.75 16 15/16 4TB184 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 44.8

19.5 20.0 20.35 181/2 4TB200 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 57.0

24.5 25.0 25.35 23 1/2 4TB250 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 69.5

29.5 30.0 30.35 28 1/2 4TB300 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 90.8

37.5 38.0 38.35 36 1/2 4TB380 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 125.0

TB Gripbelt Sheaves with Split Taper Bushings

Table No.1 Specifications-Stock”TB”Sheaves

DIAMETERS 5 GROOVES, F = 4″;6 GROOVES,F=4 3/4″

Datum

“A”
Datum

“B”
Outside Inside Part Number Type Dimensions Wt. Less Bush.

Sheave Bushing 〇L L p c H G X E

3.0″ 3.4″ 3.75″ 2″ 5TB34 P2 3 5 5/16″ 2 15/16″ 1 1/16″ 2 1/8″ 3__ 5/8″ 2 5/16″ 1/4″ 5.3

3.2 3.6 3.95 21/16 5TB36 P2 3 5 5/16 2 15/16 11/16 2 1/8 3 5/8 2 5/16 1/4 6.1

3.4 3.8 4.15 2 5/16 5TB38 P2 5 4 7/8 2 15/16 5/8 1 11/16 3 — 2 5/16 1/4 6.1

3.6 4.0 4.35 2 1/2 5TB40 P2 5 4 7/8 2 15/16 5/8 1 11/16 3 — 2 5/16 1/4 7.0

3.8 4.2 4.55 2 11/16 5TB42 P2 5 4 7/8 2 15/16 5/8 1 11/16 3 — 2 5/16 1/4 7.8

4.0 4.4 4.75 2 7/8 5TB44 P2 13-Web 4 1/4 2 15/16 0 1 1/16 3 5/8 2 5/16 1/4 8.5

4.2 4.6 4.95 31/16 5TB46 P2 13-Web 4 1/4 2 15/16 0 1 1/16 3 5/8 2 5/16 1/4 9.8

4.4 4.8 5.15 3 5/16 5TB48 P2 13-Web 4 1/4 2 15/16 0 1 1/16 3 5/8 2 5/16 1/4 10.5

4.6 5.0 5.35 3 1/2 5TB50 P2 13-Web 4 1/4 2 15/16 0 1 1/16 3 5/8 2 5/16 1/4 11.6

4.8 5.2 5.55 3 11/16 5TB52 P2 13-Web 4 1/4 2 15/16 0 1 1/16 3 5/8 2 5/16 1/4 12.5

5.0 5.4 5.75 3 7/8 5TB54 Q1 13-Web 4 9/32 2 1/2 0 1 1/2 4 1/8 3/4 1 3/4 9/32 10.4

5.2 5.6 5.95 4 1/16 5TB56 Q1 13-Web 4 9/32 2 1/2 0 1 1/2 4 1/8 3/4 1 3/4 9/32 11.8

5.4 5.8 6.15 4 5/16 5TB58 Q1 13-Web 4 9/32 2 1/2 0 1 1/2 4 1/8 3/4 1 3/4 9/32 12.8

5.6 6.0 6.35 4 1/2 5TB60 Q1 13-Web 4 9/32 2 1/2 0 1 1/2 4 1/8 3/4 1 3/4 9/32 13.8

5.8 6.2 6.55 4 11/16 5TB62 Q1 13-Web 4 9/32 2 1/2 0 1 1/2 4 1/8 3/4 1 3/4 9/32 14.6

6.0 6.4 6.75 4 7/8 5TB64 Q1 13-Web 4 9/32 2 1/2 0 1 1/2 4 1/8 3/4 1 3/4 9/32 16.4

6.2 6.6 6.95 51/16 5TB66 Q1 13-Web 4 9/32 2 1/2 0 1 1/2 4 1/8 3/4 1 3/4 9/32 17.1

6.4 6.8 7.15 5 5/16 5TB68 Q1 13-Web 4 9/32 2 1/2 0 1 1/2 4 1/8 3/4 1 3/4 9/32 17.9

6.6 7.0 7.35 5 1/2 5TB70 Q2 13-Web 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 20.9

7.0 7.4 7.75 5 15/16 5TB74 Q2 13-Web 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 19.8

7.6 8.0 8.35 6 1/2 5TB80 Q2 13-Web 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 22.3

8.2 8.6 8.95 71/16 5TB86 Q2 13-Web 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 29.5

8.6 9.0 9.35 7 1/2 5TB90 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 28.6

9.0 9.4 9.75 7 15/16 5TB94 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 29.5

10.6 11.0 11.35 9 7/16 5TB110 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 32.8

12.0 12.4 12.75 10 15/16 5TB124 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 35.4

13.2 13.6 13.95 12 1/16 5TB136 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 41.0

15.0 15.4 15.75 13 15/16 5TB154 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 45.3

15.6 16.0 16.35 141/2 5TB160 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 48.0

18.0 18.4 18.75 16 15/16 5TB184 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 57.3

19.5 20.0 20.35 181/2 5TB200 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 66.0

24.5 25.0 25.35 23 1/2 5TB250 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 82.5

29.5 30.0 30.35 28 1/2 5TB300 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 117.0

37.5 38.0 38.35 36 1/2 5TB380 Q2 13-Arm 4 13/32 3 1/2 1/8 5/8 4 1/8 3/4 2 3/4 9/32 159.0

3.0″ 3.4″ 3.75″ 2__ 6TB34 P2 3 6 1/16″ 2 15/16″ 11/16″ 2 7/8″ 3″ 5/8″ 2 5/16″ 1/4″ 6.1

3.2 3.6 3.95 2 1/16 6TB36 P2 3 6 1/16 2 15/16 11/16 2 7/8 3 5/8 2 5/16 1/4 7.3

3.4 3.8 4.15 2 5/16 6TB38 P2 5 5 5/8 2 15/16 5/8 2 7/16 3 — 2 5/16 1/4 7.0

3.6 4.0 4.35 2 1/2 6TB40 P2 5 5 5/8 2 15/16 5/8 2 7/16 3 — 2 5/16 1/4 8.1

3.8 4.2 4.55 2 11/16 6TB42 P2 5 5 5/8 2 15/16 5/8 2 7/16 3 — 2 5/16 1/4 9.3

4.0 4.4 4.75 2 7/8 6TB44 P2 13-Web 5 2 15/16 0 1 13/16 3 5/8 2 5/16 1/4 9.9

4.2 4.6 4.95 31/16 6TB46 P2 13-Web 5 2 15/16 0 1 13/16 3 5/8 2 5/16 1/4 11.0

4.4 4.8 5.15 3 5/16 6TB48 P2 13-Web 5 2 15/16 0 1 13/16 3 5/8 2 5/16 1/4 11.8

4.6 5.0 5.35 3 1/2 6TB50 P2 13-Web 5 2 15/16 0 1 13/16 3 5/8 2 5/16 1/4 12.9

4.8 5.2 5.55 3 11/16 6TB52 P2 13-Web 5 2 15/16 0 1 13/16 3 5/8 2 5/16 1/4 14.8

5.0 5.4 5.75 3 7/8 6TB54 Q1 13-Web 5 1/32 2 1/2 0 2 1/4 4 1/8 3/4 1 3/4 9/32 11.8

5.2 5.6 5.95 4 1/16 6TB56 Q1 13-Web 5 1/32 2 1/2 0 2 1/4 4 1/8 3/4 1 3/4 9/32 17.3

5.4 5.8 6.15 4 5/16 6TB58 Q1 13-Web 5 1/32 2 1/2 0 2 1/4 4 1/8 3/4 1 3/4 9/32 14.5

5.6 6.0 6.35 4 1/2 6TB60 Q1 13-Web 5 1/32 2 1/2 0 2 1/4 4 1/8 3/4 1 3/4 9/32 15.4

5.8 6.2 6.55 4 11/16 6TB62 Q1 13-Web 5 1/32 2 1/2 0 2 1/4 4 1/8 3/4 1 3/4 9/32 16.4

6.0 6.4 6.75 4 7/8 6TB64 Q1 13-Web 5 1/32 2 1/2 0 2 1/4 4 1/8 3/4 1 3/4 9/32 18.6

6.2 6.6 6.95 51/16 6TB66 Q1 13-Web 5 1/32 2 1/2 0 2 1/4 4 1/8 3/4 1 3/4 9/32 18.5

6.4 6.8 7.15 5 5/16 6TB68 Q1 13-Web 5 1/32 2 1/2 0 2 1/4 4 1/8 3/4 1 3/4 9/32 20.8

6.6 7.0 7.35 5 1/2 6TB70 Q2 15-Web 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 22.8

7.0 7.4 7.75 5 15/16 6TB74 Q2 15-Web 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 26.5

7.6 8.0 8.35 6 1/2 6TB80 Q2 15-Web 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 24.1

8.2 8.6 8.95 71/16 6TB86 Q2 15-Web 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 27.1

8.6 9.0 9.35 7 1/2 6TB90 Q2 15-Web 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 30.6

9.0 9.4 9.75 7 15/16 6TB94 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 32.8

10.6 11.0 11.35 9 7/16 6TB110 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 36.6

12.0 12.4 12.75 10 15/16 6TB124 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 39.8

13.2 13.6 13.95 12 1/16 6TB136 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 44.9

15.0 15.4 15.75 13 15/16 6TB154 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 49.9

15.6 16.0 16.35 14 1/2 6TB160 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 54.0

18.0 18.4 18.75 16 15/16 6TB184 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 62.0

19.5 20.0 20.35 18 1/2 6TB200 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 74.0

24.5 25.0 25.35 23 1/2 6TB250 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 89.5

29.5 30.0 30.35 28 1/2 6TB300 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 128.0

37.5 38.0 38.35 36 1/2 6TB380 Q2 15-Arm 4 25/32 3 1/2 1/4 1 4 1/8 3/4 2 3/4 9/32 179.0

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “TB Gripbelt Sheaves with Split Taper Bushings”

Packing&Shipping & Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.

We also can custom color package according to your demand

Company Profile

FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains	Sprockets	Pulleys	Timing belt Pulley	V-belt Pulley
Sheaves	Coupings	Bush &Hub	Gear& Rack	V-Belt
Locking Assembly	Pulley	Gearbox	Reducer	Shaft Collar
Rod End Bearing	Clevis	PTO	Chain Guide	Belt Guide
Rubber Buffer	Chain Tensioner	PTO Drive Shafts	Universal Joints	Roller Chains
Conveyor Chains	V-Belts	Worm Gearbox	Helical Gear	Worm
Agricultural Chain	CNC Proces Parts	Casting	Stamping
Powder Metallurgy	CNC Proces Parts	Casting	Stamping

What Products Do you sell ?

We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable

TB Gripbelt Sheaves with Split Taper Bushings

Table No.1

Table No.1

Table No. 1

Reviews

Related products

Got a query for Power-Trans Power transmissions Part Product or Services?
