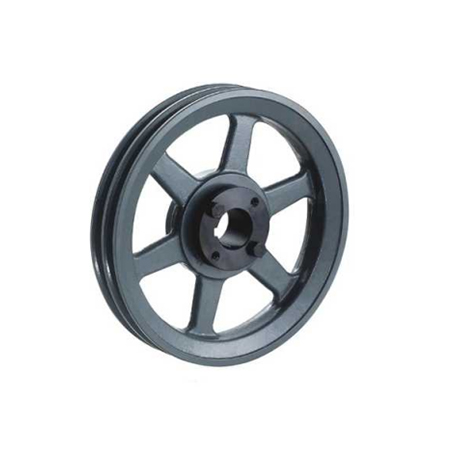

TC Gripbelt Sheaves with Split Taper Bushings

TC Series Gripbelt Sheaves with Split Taper Bushings

Description

TC Series Gripbelt Sheaves

with Split Taper Bushings

For Use with All “C” Section Belts

Table No. 1

Bore Range	Keyseat
3/4″ — 7/8″	3/16″ x 3/32″
15/16—1 1/4	1/4 x 1/8
1 5/16—1 3/8	5/16×5/32
1 7/16—1 3/4	3/8×3/16
1 13/16 — 21/4	1/2 x 1/4
2 5/16—2 11/16	5/8×5/16

Table No.2

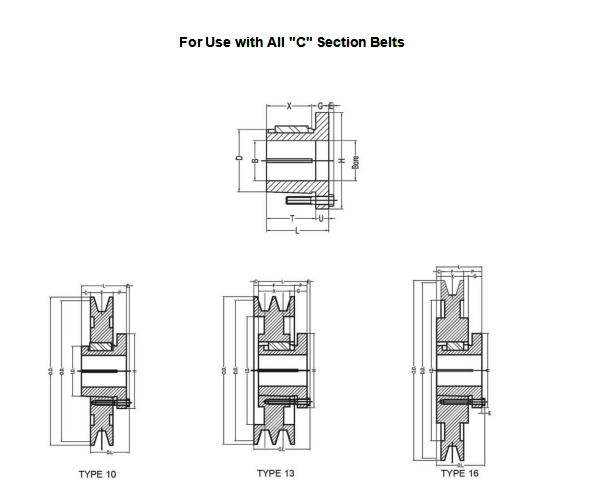

Bushing Dimensions

Part No.	Dimensions									Bore	Wt. Lbs.
Part No.	M	L	G	X	E	T	U	D	H	Range	Wt. Lbs.
Q1	2 25/32″	2 1/2″	3/4″	1 3/4″	9/32″	1 31/32″	17/32″	2 7/8″	4 1/8″	3/4″-2 11/16″	3 1/2
Q2	3 25/32″	3 1/2″	3/4.丨	2 3/4″	9/32″	2 31/32″	17/32″	2 7/8″	4 1/8″	1ⁿ-2 5/8ⁿ	4 1/2

Table No.3

Specification—Stock “TC” Sheaves

DIAMETERS 1 GROOVE, F = 1 1/4″

Dautum

Outside

Inside

Part Number

Type

Dimensions

Wt.Less

Bush.

Sheave

Bushing

O.L.

7.0″

7.40″

–

1TC70

10-Sol.

2 25/32″

2 1/2″

3/4″

1/2″

4 1/8″

—

9/32″

9.3

7.2

7.60

–

1TC72

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

10.1

7.4

7.80

–

1TC74

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

10.8

7.6

8.00

–

1TC76

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

11.4

7.8

8.20

6″

1TC78

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

9.8

8.0

8.40

6 1/4

1TC80

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

9.9

8.2

8.60

6 7/16

1TC82

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

10.1

8.4

8.80

6 5/8

1TC84

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

11.0

8.6

9.00

6 13/16

1TC86

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

10.6

8.8

9.20

1TC88

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

11.6

9.0

9.40

7 1/4

1TC90

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

11.4

9.2

9.60

7 7/16

1TC92

10-Web

2 25/32

2 1/2

3/4

1/2

4 1/8

—

9/32

12.6

9.4

9.80

7 5/8

1TC94

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4″

1 3/4″

9/32

14.8

9.6

10.00

7 13/16

1TC96

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

15.8

9.8

10.20

1TC98

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

15.9

10.0

10.40

8 1/4

1TC100

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

16.8

10.2

10.60

8 7/16

1TC102

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

16.1

10.6

11.00

8 13/16

1TC106

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

17.3

11.0

11.40

9 1/4

1TC110

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

17.5

11.4

11.80

9 5/8

1TC114

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

18.6

12.0

12.40

10 1/4

1TC120

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

19.5

13.0

13.40

11 1/4

1TC130

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

22.8

16.0

16.40

14 1/4

1TC160

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

28.5

20.0

20.40

18 1/4

1TC200

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

37.8

24.0

24.40

22 1/4

1TC240

16-Arm

2 25/32

2 1/2

1/4

4 1/8

3/4

1 3/4

9/32

49.5

=”369″ /></p>

<h3>TC Series Gripbelt

Sheaves with Split Taper Bushings

For Use with All “C” Section Belts

Table No.1

Specifications-Stock”TC”Sheaves

DIAMETERS 2 GROOVE, F = 2 1/4″

Datum Out-

side
Inside Part Number Type Dimensions =”yoast-text-mark” rowspan=”2″>width=”67″>Wt.

Less Bush.

Sheave Bushing 〇.L. L p c H G X E

7.0″ 7.40″ 5 1/4″ 2TC70 Q1 13-Web 3 1/32″ 2 1/2″ 1/2″ 1/4″ 4 1/8″ 3/4″ 1 3/4″ 9/32″ 14.0

7.2 7.60 5 7/16 2TC72 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 15.4

7.4 7.80 5 5/8 2TC74 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 16.6

7.6 8.00 5 13/16 2TC76 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 17.6

7.8 8.20 6 2TC78 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 14.1

8.0 8.40 6 1/4 2TC80 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 14.3

8.2 8.60 6 7/16 2TC82 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 14.8

8.4 8.80 6 5/8 2TC84 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 16.4

8.6 9.00 6 13/16 2TC86 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 16.1

8.8 9.20 7 2TC88 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 17.1

9.0 9.40 7 1/4 2TC90 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 16.8

9.2 9.60 7 7/16 2TC92 Q1 13-Web 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 18.4

9.4 9.80 7 5/8 2TC94 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 19.1

9.6 10.00 7 13/16 2TC96 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 20.6

9.8 10.20 8 2TC98 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 19.5

10.0 10.40 8 1/4 2TC100 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 22.0

10.2 10.60 8 7/16 2TC102 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 21.3

10.6 11.00 8 13/16 2TC106 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 22.4

11.0 11.40 9 1/4 2TC110 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 22.4

11.4 11.80 9 5/8 2TC114 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 23.5

12.0 12.40 10 1/4 2TC120 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 24.9

13.0 13.40 11 1/4 2TC130 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 28.6

16.0 16.40 14 1/4 2TC160 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 36.0

20.0 20.40 18 1/4 2TC200 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 46.0

24.0 24.40 22 1/4 2TC240 Q1 13-Arm 3 1/32 2 1/2 1/2 1/4 4 1/8 3/4 1 3/4 9/32 59.5

Table No.2

DIAMETERS 3 GROOVE, F = 3 1/4″

Datum Out-

side
Inside Part Number Type Dimensions wt

Less

Bush

Sheave Bushing 〇.L. L p c H G X E

7.0″ 7.40″ 5 1/4″ 3TC70 Q1 13-Web 3 17/32″ 2 1/2″ 0 3/4″ 4 1/8″ 3/4″ 1 3/4″ 9/32″ 16.8

7.2 7.60 5 7/16 3TC72 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 18.0

7.4 7.80 5 5/8 3TC74 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 19.1

7.6 8.00 5 13/16 3TC76 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 21.3

7.8 8.20 6 3TC78 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 17.4

8.0 8.40 6 1/4 3TC80 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 17.8

8.2 8.60 6 7/16 3TC82 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 17.9

8.4 8.80 6 5/8 3TC84 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 20.4

8.6 9.00 6 13/16 3TC86 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 19.5

8.8 9.20 7 3TC88 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 22.5

9.0 9.40 7 1/4 3TC90 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 20.4

9.2 9.60 7 7/16 3TC92 Q1 13-Web 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 22.8

9.4 9.80 7 5/8 3TC94 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 23.0

9.6 10.00 7 13/16 3TC96 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 25.3

9.8 10.20 8 3TC98 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 24.4

10.0 10.40 8 1/4 3TC100 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 27.6

10.2 10.60 8 7/16 3TC102 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 24.9

10.6 11.00 8 13/16 3TC106 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 26.9

11.0 11.40 9 1/4 3TC110 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 27.4

11.4 11.80 9 5/8 3TC114 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 28.3

12.0 12.40 10 1/4 3TC120 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 30.3

13.0 13.40 11 1/4 3TC130 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 34.9

16.0 16.40 14 1/4 3TC160 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 46.0

20.0 20.40 18 1/4 3TC200 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 54.5

24.0 24.40 22 1/4 3TC240 Q1 13-Arm 3 17/32 2 1/2 0 3/4 4 1/8 3/4 1 3/4 9/32 71.0

Table No. 1

For Use with All “C” Section Belts

Bushing Dimensions

Part	Dimensions									Bore Range	wt.
No.	M	L	G	X	E	T	U	D	H	Bore Range	Lbs.
Q1	2 25/32″	2 1/2″	3/4″	1 3/4″	9/32″	1 31/32″	17/32″	2 7/8″	4 1/8″	3/4″-2 11/16^M	3 1/2
Q2	3 25/32″	3 1/2″	3/4″	2 3/4″	9/32″	2 31/32″	17/32″	2 7/8″	4 1/8″	1″- 2 5/8″	4 1/2

Standard Keyseats Table No.2

Bore Range	Keyseat
1″-1 1/4″	1/4″X1/8″
1 5/16-1 3/8	5/16X5/32
1 7/16-1 3/4	3/8X3/16
1 13/16-2 1/4	1/2X1/4
2 5/16-2 5/8	5/8X5/16

1 3/8″ Bore Bushings also
available with 3/8×3/16″

Table No.3

Specifications-Stock’TC’Sheaves

DIAMETERS

4 GROOVES, F = 4 1/4″

Datum Outside Inside Part Number Type Dimensions Wt.Less

Bush.

Sheave Bushing 〇.L. L p c H G X E

7.0″ 7.40″ 5 1/4″ 4TC70 Q2 13-Web 4 17/32″ 3 1/2″ 0 3/4″ 4 1/8″ 3/4″ 2 3/4″ 9/32″ 23.8

7.2 7.60 5 7/16 4TC72 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 26.8

7.4 7.80 5 5/8 4TC74 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 27.5

7.6 8.00 5 13/16 4TC76 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 30.3

7.8 8.20 6 4TC78 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 26.4

8.0 8.40 6 1/4 4TC80 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 29.0

8.2 8.60 6 7/16 4TC82 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 26.8

8.4 8.80 6 5/8 4TC84 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 28.8

8.6 9.00 6 13/16 4TC86 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 27.9

8.8 9.20 7 4TC88 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 31.6

9.0 9.40 7 1/4 4TC90 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 28.4

9.2 9.60 7 7/16 4TC92 Q2 13-Web 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 32.3

9.4 9.80 7 5/8 4TC94 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 31.8

9.6 10.00 7 13/16 4TC96 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 35.2

9.8 10.20 8 4TC98 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 33.0

10.0 10.40 8 1/4 4TC100 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 37.0

10.2 10.60 8 7/16 4TC102 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 33.5

10.6 11.00 8 13/16 4TC106 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 36.3

11.0 11.40 9 1/4 4TC110 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 36.3

11.4 11.80 9 5/8 4TC114 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 38.4

12.0 12.40 10 1/4 4TC120 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 40.5

13.0 13.40 11 1/4 4TC130 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 43.6

16.0 16.40 14 1/4 4TC160 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 56.0

20.0 20.40 18 1/4 4TC200 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 72.0

24.0 24.40 22 1/4 4TC240 Q2 13-Arm 4 17/32 3 1/2 0 3/4 4 1/8 3/4 2 3/4 9/32 85.3

For Use with All “C” Section Belts

Table No.1 TC Series Gripbelt Sheaves

Specifications-Stock”TC”Sheaves

DIAMETERS 5GROOVES, F=5 1/4″

Datum Outside Inside Part Number Type Dimensions Wt.Less

Sheave Bushing 〇.L. L p c H G X E Bush.

7.0″ 7.40″ 5 1/4″ 5TC70 Q2 15-Web 5 1/4″ 3 1/2″ 1/2″ 1 1/4″ 4 1/8″ 3/4″ 2 3/4″ 9/32″ 27.5

7.2 7.60 5 7/16 5TC72 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 29.8

7.4 7.80 5 5/8 5TC74 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 31.0

7.6 8.00 5 13/16 5TC76 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 34.3

7.8 8.20 6 5TC78 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 30.0

8.0 8.40 6 1/4 5TC80 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 33.4

8.2 8.60 6 7/16 5TC82 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 30.3

8.4 8.80 6 5/8 5TC84 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 32.8

8.6 9.00 6 13/16 5TC86 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 31.0

8.8 9.20 7 5TC88 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 34.9

9.0 9.40 7 1/4 5TC90 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 32.6

9.2 9.60 7 7/16 5TC92 Q2 15-Web 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 36.4

9.4 9.80 7 5/8 5TC94 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 35.6

9.6 10.00 7 13/16 5TC96 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 39.1

9.8 10.20 8 5TC98 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 37.3

10.0 10.40 8 1/4 5TC100 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 42.3

10.2 10.60 8 7/16 5TC102 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 39.4

10.6 11.00 8 13/16 5TC106 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 41.0

11.0 11.40 9 1/4 5TC110 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 42.4

11.4 11.80 9 5/8 5TC114 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 42.8

12.0 12.40 10 1/4 5TC120 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 46.3

13.0 13.40 11 1/4 5TC130 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 49.5

16.0 16.40 14 1/4 5TC160 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 64.5

20.0 20.40 18 1/4 5TC200 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 78.0

24.0 24.40 22 1/4 5TC240 Q2 15-Arm 5 1/4 3 1/2 1/2 1 1/4 4 1/8 3/4 2 3/4 9/32 96.0

Table No.2

DIAMETERS 6 GROOVES, F = 6 1/4″

Datum Outside Inside Part Number Type Dimensions Wt.Less

Sheave Bushing O.L. L p c H G X E Bush.

7.0″ 7.40″ 5 1/4″ 6TC70 Q2 15-Web 6 1/4″ 3 1/2″ 1″ 1 3/4″ 4 1/8″ 3/4″ 2 3/4″ 9/32″ 29.9

7.2 7.60 5 7/16 6TC72 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 33.6

7.4 7.80 5 5/8 6TC74 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 33.3

7.6 8.00 5 13/16 6TC76 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 37.9

7.8 8.20 6 6TC78 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 33.5

8.0 8.40 6 1/4 6TC80 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 37.6

8.2 8.60 6 7/16 6TC82 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 34.0

8.4 8.80 6 5/8 6TC84 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 37.0

8.6 9.00 6 13/16 6TC86 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 35.0

8.8 9.20 7 6TC88 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 39.4

9.0 9.40 7 1/4 6TC90 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 36.8

9.2 9.60 7 7/16 6TC92 Q2 15-Web 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 41.0

9.4 9.80 7 5/8 6TC94 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 39.4

9.6 10.00 7 13/16 6TC96 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 43.6

9.8 10.20 8 6TC98 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 42.0

10.0 10.40 8 1/4 6TC100 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 47.3

10.2 10.60 8 7/16 6TC102 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 44.4

10.6 11.00 8 13/16 6TC106 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 45.4

11.0 11.40 9 1/4 6TC110 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 47.0

11.4 11.80 9 5/8 6TC114 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 49.6

12.0 12.40 10 1/4 6TC120 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 51.0

13.0 13.40 11 1/4 6TC130 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 56.0

16.0 16.40 14 1/4 6TC160 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 72.0

20.0 20.40 18 1/4 6TC200 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 88.3

24.0 24.40 22 1/4 6TC240 Q2 15-Arm 6 1/4 3 1/2 1 1 3/4 4 1/8 3/4 2 3/4 9/32 108

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “TC Series Gripbelt Sheaves with Split Taper Bushings”

Packing&Shipping & Delivery

Packing Shipping Delivery
