H Type Timing Belt Pulley
A timing belt pulley is a specialized pulley system with teeth or pockets outside the pulley body’s diameter. Like traditional pulley systems, timing belt pulleys are driven by frictional forces between the belt and pulley surfaces. The teeth or pockets outside the pulley are not used for power transmission. Instead, they engage the pulley belt, assisting with timing and averting misalignment.
H Type Timing Belt Pulley
A timing belt pulley(H Type Timing Belt Pulley) is a specialized pulley system with teeth or pockets outside the pulley body’s diameter. Like traditional pulley systems, timing belt pulleys are driven by frictional forces between the belt and pulley surfaces. The teeth or pockets outside the pulley are not used for power transmission. Instead, they engage the pulley belt, assisting with timing and averting misalignment.
Timing belt pulleys are utilized when two shafts must be precisely linked for homogeneous rotation. Most traditional power transmission belts and pulleys are smooth, without teeth or pockets. The soft belt can sometimes slip off the track, causing one shaft to turn while the other sits dormant. Timing belt pulleys eliminate this concern as teeth or pockets keep the pulley firmly attached to the belt during operation.
Product Parameters
H100 – Pitch 1/2″ (12.70 mm) – Belt Width 1″ (25.40 mm)
| Pulley Designation | Type | PCD (mm) | De (mm) | Df (mm) | Dm (mm) | F | L | Stock Bore | Material | Flanges |
| 14H100 | 6F | 56.6 | 55.22 | 63 | 40 | 32 | 42 | 10 | Steel | Y |
| 15H100 | 6F | 60.64 | 59.27 | 66 | 45 | 32 | 42 | 10 | Steel | Y |
| 16H100 | 6F | 64.68 | 63.31 | 71 | 45 | 32 | 42 | 10 | Steel | Y |
| 18H100 | 6F | 72.77 | 71.39 | 79 | 55 | 32 | 42 | 12 | Steel | Y |
| 19H100 | 6F | 76.81 | 75.44 | 83 | 60 | 32 | 42 | 12 | Steel | Y |
| 20H100 | 6F | 80.85 | 79.48 | 87 | 62 | 32 | 42 | 12 | Steel | Y |
| 21H100 | 6F | 84.89 | 83.52 | 91 | 65 | 32 | 42 | 12 | Steel | Y |
| 22H100 | 6F | 88.94 | 87.56 | 93 | 68 | 32 | 42 | 12 | Steel | Y |
| 24H100 | 6F | 97.02 | 95.65 | 103 | 72 | 32 | 42 | 12 | Steel | Y |
| 26H100 | 6F | 105.11 | 103.73 | 111 | 80 | 32 | 42 | 15 | Steel | Y |
| 28H100 | 6F | 113.91 | 111.82 | 119 | 80 | 32 | 42 | 15 | Steel | Y |
| 30H100 | 6F | 121.28 | 119.9 | 127 | 80 | 32 | 42 | 15 | Steel | Y |
| 32H100 | 6F | 129.36 | 127.99 | 135 | 80 | 32 | 42 | 20 | Steel | Y |
| 36H100 | 6WF | 145.53 | 144.16 | 152 | 80 | 32 | 45 | 20 | Cast Iron | Y |
| 40H100 | 6WF | 161.7 | 160.33 | 168 | 80 | 32 | 45 | 20 | Cast Iron | Y |
| 44H100 | 6WF | 177.87 | 176.5 | 184 | 80 | 32 | 45 | 20 | Cast Iron | Y |
| 48H100 | 6WF | 194.04 | 192.67 | 200 | 90 | 32 | 45 | 20 | Cast Iron | Y |
| 60H100 | 6A | 242.55 | 241.18 | – | 90 | 32 | 45 | 20 | Cast Iron | N |
| 72H100 | 6A | 291.06 | 289.69 | – | 100 | 32 | 45 | 20 | Cast Iron | N |
| 84H100 | 6A | 339.57 | 338.2 | – | 100 | 32 | 45 | 20 | Cast Iron | N |
H150 – Pitch 1/2″ (12.70 mm) – Belt Width 1.5″ (38.10 mm)
| Pulley Designation | Type | PCD (mm) | De (mm) | Df (mm) | Dm (mm) | F | L | Stock Bore | Material | Flanges |
| 14H150 | 6F | 56.60 | 55.22 | 63.00 | 40.00 | 45.00 | 55.00 | 10.00 | Steel | Y |
| 15H150 | 6F | 60.64 | 59.27 | 66.00 | 45.00 | 45.00 | 55.00 | 10.00 | Steel | Y |
| 16H150 | 6F | 64.68 | 63.31 | 71.00 | 45.00 | 45.00 | 55.00 | 10.00 | Steel | Y |
| 18H150 | 6F | 72.77 | 71.39 | 79.00 | 55.00 | 45.00 | 55.00 | 12.00 | Steel | Y |
| 19H150 | 6F | 76.81 | 75.44 | 83.00 | 60.00 | 45.00 | 55.00 | 12.00 | Steel | Y |
| 20H150 | 6F | 80.85 | 79.48 | 87.00 | 62.00 | 45.00 | 55.00 | 12.00 | Steel | Y |
| 21H150 | 6F | 84.89 | 83.52 | 91.00 | 65.00 | 45.00 | 55.00 | 12.00 | Steel | Y |
| 22H150 | 6F | 88.94 | 87.56 | 93.00 | 68.00 | 45.00 | 55.00 | 12.00 | Steel | Y |
| 24H150 | 6F | 97.02 | 95.65 | 103.00 | 72.00 | 45.00 | 55.00 | 12.00 | Steel | Y |
| 26H150 | 6F | 105.11 | 103.73 | 111.00 | 80.00 | 45.00 | 55.00 | 15.00 | Steel | Y |
| 28H150 | 6F | 113.91 | 111.82 | 119.00 | 80.00 | 45.00 | 55.00 | 15.00 | Steel | Y |
| 30H150 | 6F | 121.28 | 119.90 | 127.00 | 80.00 | 45.00 | 55.00 | 15.00 | Steel | Y |
| 32H150 | 6F | 129.36 | 127.99 | 135.00 | 80.00 | 45.00 | 55.00 | 20.00 | Steel | Y |
| 36H150 | 6WF | 145.53 | 144.16 | 152.00 | 80.00 | 45.00 | 58.00 | 20.00 | Cast Iron | Y |
| 40H150 | 6WF | 161.70 | 160.33 | 168.00 | 80.00 | 45.00 | 58.00 | 20.00 | Cast Iron | Y |
| 44H150 | 6WF | 177.87 | 176.50 | 184.00 | 80.00 | 45.00 | 58.00 | 20.00 | Cast Iron | Y |
| 48H150 | 6WF | 194.04 | 192.67 | 200.00 | 90.00 | 45.00 | 58.00 | 20.00 | Cast Iron | Y |
| 60H150 | 6A | 242.55 | 241.18 | – | 90.00 | 45.00 | 58.00 | 20.00 | Cast Iron | N |
| 72H150 | 6A | 291.06 | 289.69 | – | 100.00 | 45.00 | 58.00 | 20.00 | Cast Iron | N |
| 84H150 | 6A | 339.57 | 338.20 | – | 100.00 | 45.00 | 58.00 | 20.00 | Cast Iron | N |
H200 – Pitch 1/2″ (12.70 mm) – Belt Width 2″ (50.80 mm)
| Pulley Designation | Type | PCD (mm) | De (mm) | Df (mm) | Dm (mm) | F | L | Stock Bore | Material | Flanges |
| 14H200 | 6F | 56.60 | 55.22 | 63.00 | 40.00 | 58.00 | 70.00 | 10.00 | Steel | Y |
| 15H200 | 6F | 60.64 | 59.27 | 66.00 | 45.00 | 58.00 | 70.00 | 10.00 | Steel | Y |
| 16H200 | 6F | 64.68 | 63.31 | 71.00 | 45.00 | 58.00 | 70.00 | 10.00 | Steel | Y |
| 18H200 | 6F | 72.77 | 71.39 | 79.00 | 55.00 | 58.00 | 70.00 | 12.00 | Steel | Y |
| 19H200 | 6F | 76.81 | 75.44 | 83.00 | 60.00 | 58.00 | 70.00 | 12.00 | Steel | Y |
| 20H200 | 6F | 80.85 | 79.48 | 87.00 | 62.00 | 58.00 | 70.00 | 12.00 | Steel | Y |
| 21H200 | 6F | 84.89 | 83.52 | 91.00 | 65.00 | 58.00 | 70.00 | 12.00 | Steel | Y |
| 22H200 | 6F | 88.94 | 87.56 | 93.00 | 68.00 | 58.00 | 70.00 | 12.00 | Steel | Y |
| 24H200 | 6F | 97.02 | 95.65 | 103.00 | 72.00 | 58.00 | 70.00 | 12.00 | Steel | Y |
| 26H200 | 6F | 105.11 | 103.73 | 111.00 | 80.00 | 58.00 | 70.00 | 15.00 | Steel | Y |
| 28H200 | 6F | 113.91 | 111.82 | 119.00 | 80.00 | 58.00 | 70.00 | 15.00 | Steel | Y |
| 30H200 | 6F | 121.28 | 119.90 | 127.00 | 80.00 | 58.00 | 70.00 | 15.00 | Steel | Y |
| 32H200 | 6F | 129.36 | 127.99 | 135.00 | 80.00 | 58.00 | 70.00 | 20.00 | Steel | Y |
| 36H200 | 6WF | 145.53 | 144.16 | 152.00 | 80.00 | 58.00 | 72.00 | 20.00 | Cast Iron | Y |
| 40H200 | 6WF | 161.70 | 160.33 | 168.00 | 80.00 | 58.00 | 72.00 | 20.00 | Cast Iron | Y |
| 44H200 | 6WF | 177.87 | 176.50 | 184.00 | 80.00 | 58.00 | 72.00 | 20.00 | Cast Iron | Y |
| 48H200 | 6WF | 194.04 | 192.67 | 200.00 | 90.00 | 58.00 | 72.00 | 20.00 | Cast Iron | Y |
| 60H200 | 6A | 242.55 | 241.18 | – | 90.00 | 58.00 | 72.00 | 20.00 | Cast Iron | N |
| 72H200 | 6A | 291.06 | 289.69 | – | 100.00 | 58.00 | 72.00 | 20.00 | Cast Iron | N |
| 84H200 | 6A | 339.57 | 338.20 | – | 100.00 | 58.00 | 72.00 | 20.00 | Cast Iron | N |
Professional in Customizing Timing Belt Pulley

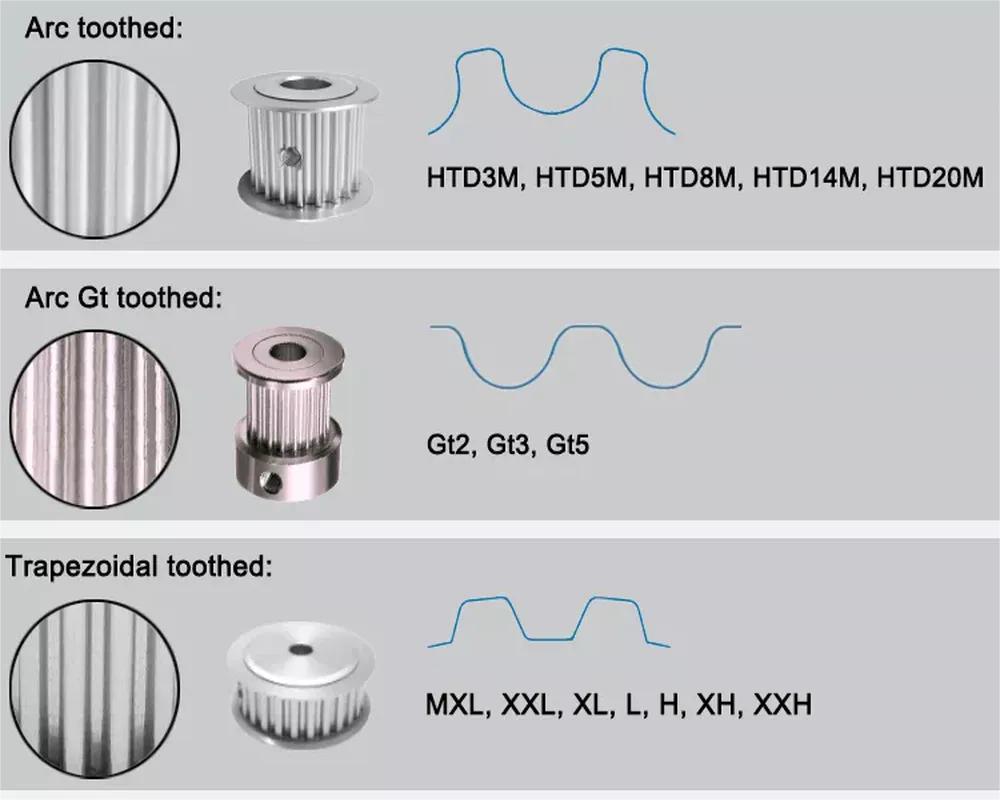

What Tooth Type Can We Do?

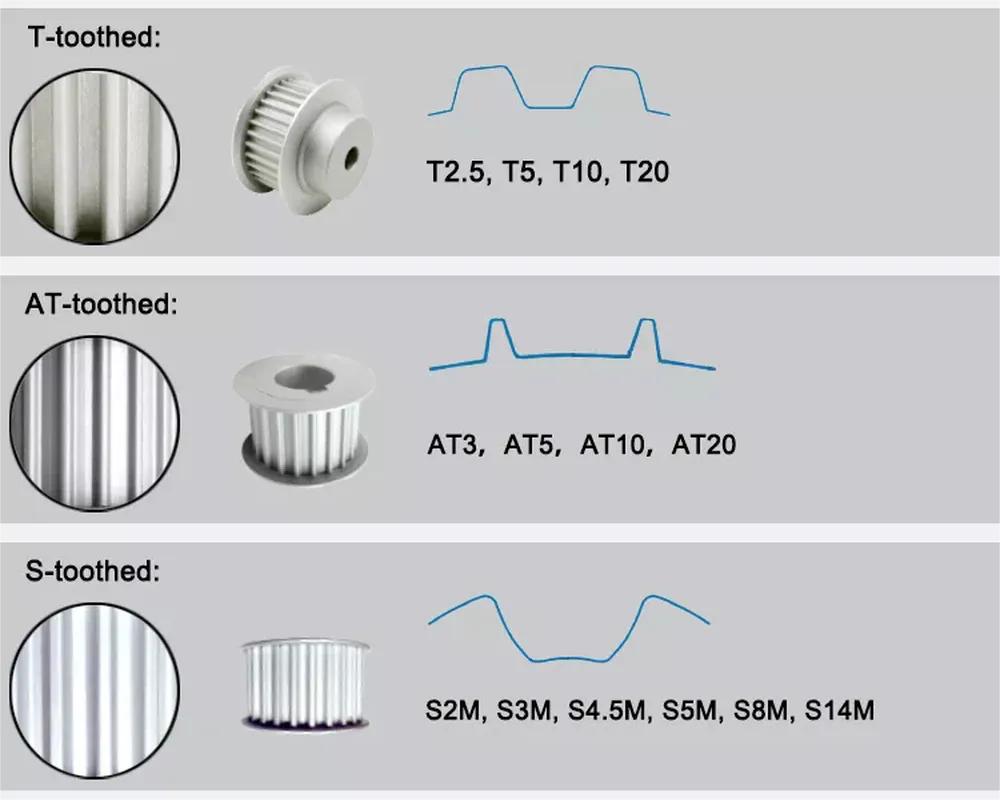

What Tooth Type Can We Do?
Bore Type We Can Do!
What Material Type Can We Do?
- Aluminum
- steel
- Stainless Steel
- Brass
- Plastic
- Titanium alloy
Application of Timing Belt Pulley
The timing belt pulleys are widely used in various industrial sectors.
-
Engineering: Timing belt pulleys are widely used in machine tools, foundry equipment, painting systems, compressors, and conveyors.
-
Pharmaceuticals & Food Processing: These pulleys are widely used in blowers in pulp mills, warehouse conveyors, bakery machines, machines for labeling, robot, etc.
-
Textile Mills: Timing belt pulleys are widely used in machines like High-speed auto looms, Ruler calendar machines, high-speed winders, looms, wrappers, etc.
-
Printing Machinery: Different plants and machinery have extensive use of these pulleys. These are used in the New paper press, Screen Printer Machine, Linotype machine offset printer, and more.
-
Agriculture Industries: Tractors, cultivators, harvesters, Rice planters, etc. are primary machines used in Agricultural industries. Timing belt pulleys are widely used in these machines too.
-
Paper Industries: There is wide use of timing belt pulleys in paper industries. Cut-off saws, or Edgers or flotation cells, etc., are those machines where these belt pulleys are hugely used.
H Type Timing Belt Pulley Application
- Robot
- Industrial Manipulator
- Printing Industry
- Industry manipulator
- Manipulator and conveyor belt
- Logistics Industry
- Die cutting Industry
Why Choose Us Timing Belt Pulley?
Timing pulleys are widely used in various equipment where the timing of both drives is precious, and the display ratio is essential. A timing pulley’s benefit is eliminating slippage and maintaining constant angular velocity. Timing pulleys are manufactured per international and national standards with carbon steel/alloy steel/aluminum and hardened teeth to provide long life. We have been ranked as the most dependable and leading firm worldwide and actively emerged to offer a wide array of timing belts. Our skilled personnel fabricate the sophisticated production unit’s timing pulleys with advanced technology.
Known for superior sturdiness, dimensional accuracy, and durability, we produce the offered compliance with industry norms and guidelines. Further, we provide these components in various customized forms according to patrons’ specific requirements. Apart from this, quality controllers test these pulleys quality on different parameters.
1) Warranty: our timing pulley’s quality is excellent, and with insurance within one year, when you receive the products and find quality problems, we promise you could return it and free maintenance.
2) Drawings: please send your timing pulleys’ drawings to us to get the best quotation; If you have no drawings, please get in touch with us, then we can work out CAD drawings and the best reference for you ASAP.
3) Sample: we accept one-piece sample orders.
4) Confidentiality agreement: Strictly adherence to client confidentiality agreement for timing pulleys.
Our Factory
