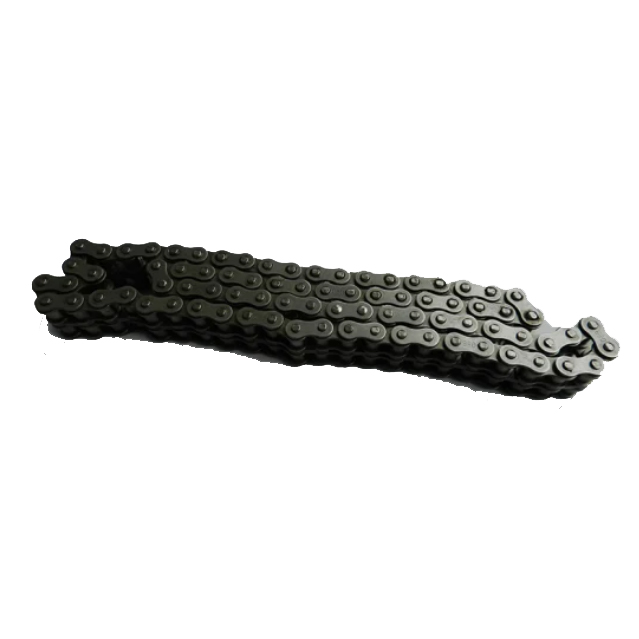

Tractor chain & ratovator chains 08B2 12A2 12AH2 16A2
Tractor chain & ratovator chains 08B-2 12A-2 12AH-2 16A-2
For optimal performance ensure the tractor chain(Tractor & ratovator chains) is properly tensioned and lubricated according to manufacturer specifications. Regularly check for wear and replace any damaged links. Using high-quality chains and following maintenance guidelines will enhance durability and efficiency.

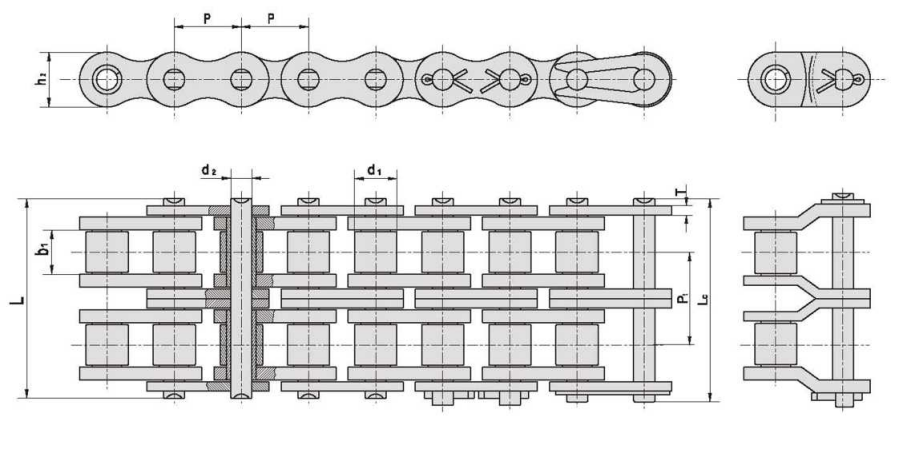

Tractor & ratovator chains Diameter Data
| Chain
No. |
Pitch | Roller diameter | Width between inner plates | Pin
diameter |
Pin length | Inner plate depth | Plate thickness | Transverse
pitch |
Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1
max |
b1
min |
d2
max |
L
max |
Lc
max |
h2
max |
T | Pt | Q
min |
Qo | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
| 08B-2 | 12.70 | 8.51 | 7.75 | 4.45 | 31.0 | 32.1 | 11.8 | 1.60 | 13.92 | 32.0 | 37.4 | 1.34 |
| 12A-2 | 19.05 | 11.91 | 12.57 | 5.94 | 48.8 | 50.3 | 18.0 | 2.42 | 22.78 | 63.6 | 83.2 | 2.92 |
| 12AH-2 | 19.05 | 11.91 | 12.57 | 5.94 | 55.3 | 57.1 | 18.0 | 3.25 | 26.11 | 63.6 | 84.5 | 3.71 |
| 16A-2 | 25.4 | 15.88 | 15.75 | 7.92 | 61.9 | 64.2 | 24.0 | 3.25 | 29.29 | 113.4 | 140.0 | 5.15 |
