Trencher chain
Trencher chain

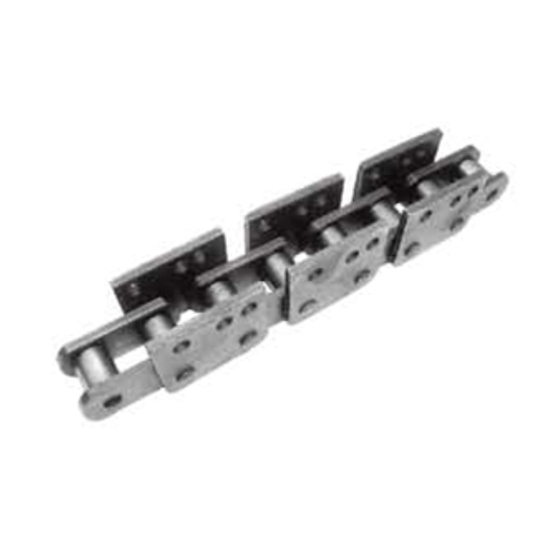

A trencher chain is a key component of trenching machinery, designed for efficient and precise trench digging. It consists of interconnected links with high-strength cutting teeth made from materials like carbide or hardened steel. These teeth are engineered to cut through soil, rocks, and other underground obstacles effectively.

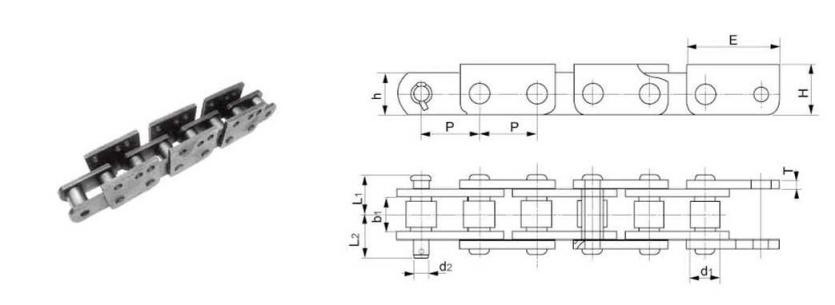

| Chain | Pitch | Width of | Sidebar | Pin | Diameter | Tensile | Weight | ||||
| No. | Inner Link | of Roller | Strength | per Meter | |||||||
| P | b1 | T | h | H | d1 | L1 | L2 | d1 | Q(min) | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | kg/m | |
| 2250GL-M | 42.01 | 25.2 | 4.9 | 31.8 | 38.1 | 11.1 | 26.9 | 29.4 | 22.23 | 120 | 6.57 |
| 2250GL-M2 | 42.01 | 25.5 | 6.4 | 31.8 | 60.3 | 11.1 | 29.9 | 33.9 | 22.23 | 120 | 6.47 |

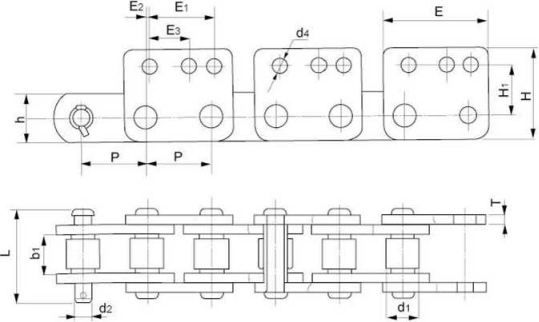

| Chain
No. |
Pitch
P mm |
Width of Inner Link b1 mm | Sidebar | Pin | Diameter of Roller d1 mm | Tensile Strength Q(min) KN | m Weight per Meter
q kg/m |
|||||||||
| T
mm |
h
mm |
H1
mm |
H
mm |
E
mm |
E1
mm |
E2
mm |
E3
mm |
d4
mm |
d2
mm |
L
mm |
||||||
| 2250GL-M3 | 42.01 | 25.2 | 4.9 | 31.8 | 33.3 | 60.3 | 69.8 | 41.3 | 2.9 | 25.4 | 9.95 | 11.1 | 56.3 | 22.23 | 120 | 7.78 |
