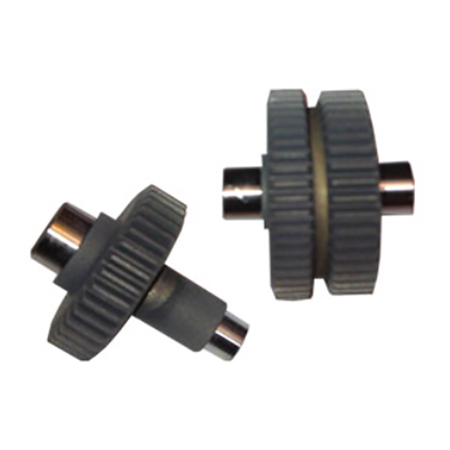

Type B American standard spur gear

Category: Sprockets Category

Description

Type B American standard spur gear

BEVEL GEARS

Type B

Pressure angle 20° Ratio 1:2

Material :C45

BEVEL GEARS

Type B

Pressure angle 20° Ratio 1:1

Material :C45

DIAMETER DATA

M	Z	D_e	dp	A	F	Dn	D1	d_m	Da	L	D_m
	16	17.4	16.0	11.2	4	13.3	4	16	7	–	6.7
	19	20.4	19.0	11.8	4	15.3	4	18	11.5	–	6.6
1	22	23.4	22.0	12.8	4.7	16.3	5	20	11.5	–	6.1
	26	27.4	26.0	13.3	5.5	20.3	5	22	14.5	–	7
	30	31.4	30.0	16.0	6.4	20.3	5	26	17.5	–	8
	16	26.1	24.0	18.9	6	20.3	8	26	12	–	12.2
	19	30.6	28.5	21.3	7	20.3	8	30	14.5	–	11.6
1.5	22	35.1	33.0	22.5	7.5	25.3	8	33	17	–	12.7
	26	41.1	39.0	23.2	8.5	28.3	8	36	22	–	12
	30	47.1	45.5	27.2	10	30.0	12	42	26	–	12.1
	16	34.8	32.0	23.5	8	25.3	8	33	15.5	–	13.6
	19	40.8	38.0	24.2	9	25.3	8	36	19.5	–	12
2	22	46.8	44.0	27.9	10	30.3	10	42	23.5	–	14
	26	54.8	52.0	31.4	12	35.3	12	48	29	–	13.7
	30	62.8	60.0	34.1	13	40.3	12	54	36	–	17
	16	43.5	40.0	28.1	10	30.3	12	40	20	–	15.2
	19	51.0	47.5	27.1	11	35.3	12	42	25	–	13
2.5	22	58.5	55.0	30.1	12	45.3	12	48	31.5	–	15.7
	26	68.5	65.0	33.2	15	45.3	15	54	36.5	–	16
	30	78.5	75.0	39.0	16	50.3	15	64	45.5	–	20
	16	52.2	48.0	31.7	12	40.3	12	46	23	–	18.1
	19	61.2	57.0	36.0	13	40.3	14	54	30	–	17.1
3	22	70.2	66.0	36.9	15	50.3	15	58	36.5	–	17.1
	26	82.2	78.0	38.4	17	50.3	15	64	45.5	–	18
	30	94.2	90.0	43.8	19	60.3	20	74	55	–	22
	16	60.9	56.0	36.4	14	45.3	15	53	27.5	–	19.8
	19	71.4	66.5	36.9	15	50.3	15	58	35.3	–	18
3.5	22	81.9	77.0	39.1	17	55.3	15	64	43.5	–	18
	26	95.9	91.0	42.2	20	60.3	20	72	52.3	–	20
	30	110.0	105.0	47.3	23	70.3	20	82	67	43	22
	16	69.7	64.0	44.3	15	50.3	15	64	32	–	25.1
	19	81.7	76.0	44.4	18	55.3	18	68	40	–	22
4	22	93.7	88.0	45.9	20	60.3	18	74	49	–	22
	26	109.7	104.0	48.0	23	70.3	20	82	65	43	22
	30	125.7	120.0	54.2	26	80.3	25	94	76	49	25
	16	78.4	72.0	46.3	17.5	55.3	18	68	35.5	–	25
	19	91.8	85.5	47.3	20	60.3	20	74	44.6	–	25
4.5	22	105.3	99.0	50.1	22	70.3	20	82	56	–	25
	26	123.3	117.0	53.2	25	75.3	20	92	68.1	45	25
	30	141.4	135.0	60.0	29	80.3	25	105	85	54	28
	16	87.1	80.0	48.9	18	60.3	20	74	42	–	25
	19	102.1	95.0	52.2	22	60.3	20	82	50	–	25
5	22	117.1	110.0	58.2	24	80.3	20	94	68	52	30
	26	137.1	130.0	62.7	29	80.3	20	105	82	57	30
	30	157.1	150.0	68.9	32	80.3	30	119	97	63	35

M	Z	De	Dp	A	F	Dn	D1	dm	Da	L	L_m
	15	17.4	15.0	11.9	5	13.3	4	22	8	–	6.6
	30	30.6	30.0	15.1	5	20.3	5	20		14	9
1.5	15	26.1	22.5	21.1	9	20.3	8	35	11.5	–	12
1.5	30	45.9	45.0	25.2	9	32.3	8	32	–	23	16
2	15	34.8	30.0	26.0	11.5	25.3	8	45	16	–	13.8
2	30	61.2	60.0	29.8	11.5	40.3	12	39	–	27	18
2.5	15	43.5	37.5	31.8	15	32.3	12	55	20	30	16.2
	30	76.5	75.0	33.7	15	45.3	15	45	–	30	20
3	15	52.2	45.0	37.3	17	40.3	12	66	25	–	19.8
3	30	91.8	90.0	42.1	17	55.3	15	56	–	38	25
3.5	15	60.9	52.5	46.1	20.5	45.3	15	79	28.5	40	24.7
	30	107.1	105.0	45.0	20.5	55.3	20	61	–	40	25
	15	69.6	60.0	48.6	22.5	50.3	20	87	34	–	24.6
4	30	122.3	120.0	57.3	22.5	80.3	20	76	–	52	35
4.5	15	78.3	67.5	51.4	26	60.3	20	94	37.5	–	24.7
4.5	30	137.6	135.0	60.3	26	80.3	25	81		53	35
5	15	87.0	75.0	57.6	30	60.3	20	104	40	56	25.3
5	30	152.9	150.0	62.5	30	80.3	25	85	–	56	35

Type B American standard spur gear BEVEL GEARS

Type B

Pressure angle 20° Ratio 1:3 Material :C45

M	Z	D_e	Dp	A	F	D_n	D1	_dm	Da	L	D_m
1	15	17.7	15.0	16.6	7.1	13.3	4	32	8	–	9.3
	45	45.3	45.0	17.1	7.1	25.3	8	22	–	15	10
	15	26.5	22.5	22.6	10.5	19.3	8	46	14	–	11.7
1.5	45	68.1	67.5	29.6	10.5	45.3	14	37	–	27	20
	15	35.4	30.0	28.9	14	25.3	8	60	18	–	14.2
2	45	90.8	90.0	32.1	14	45.3	15	42	–	29	20
	15	44.2	37.5	34.6	18	32.3	12	73	22.5	■	15.9
2.5	45	113.4	112.5	39.7	18	60.3	20	52	–	36	25
	15	53	45.0	41.3	21	40.3	15	88	28.5	_	19.7
3	45	136.1	135.0	47.2	21	60.3	20	62	–	42.5	30
	15	61.9	52.5	49.6	23.5	45.3	15	105	33.5.	■	25.1
3.5	45	158.8	157.5	54.4	23.5	80.3	20	72	–	49	35
	15	70.7	60.0	54.3	27.5	50.3	20	117	38		25.4
4	45	181.5	180.0	57.0	27.5	80.3	22	77	–	51	35
	15	79.5	67.5	55.2	28.5	55.3	20	128	44	•	24.8
4.5	45	204.2	202.5	63.9	28.5	90.3	25	87	–	57	40

5	15	88.4	75	65.3	33	60.3	20	145	47	–	30
	45	226.9	225.0	66.7	33	90.3	28	92	–	59	40

BEVEL GEARS

Type B

Pressure angle 20° Ratio 1:4 Material :C45

M	Z	De	Dp	A	F	D_n	D1	dm	D_a	L	D_m
1	15	17.8	15.0	17.2	9.3	13.3	4	38	8	–	7.7
	60	60.3	60.0	17.1	9.3	30.3	8	22	–	15	10
	15	26.7	22.5	23.0	11	20.3	8	57	15	–	11.7
1.5	60	90.4	90.0	34	11	50.3	15	42	–	31	25
	15	35.6	30.0	31	16	25.3	8	75	20	–	14.4
2	60	120.6	120.0	37.6	16	60.3	16	48	–	34	25
	15	44.5	37.5	38.1	19	32.3	14	94	25	.	18.4
2.5	60	150.7	150.0	44.8	19	60.3	20	58	–	40	30
	15	53.3	45.0	48.1	23	40.3	15	115	30	.	24.5
3	60	180.8	180.0	53.2	23	80.3	20	69	–	48	35
	15	62.2	52.5	52.1	26	45.3	15	131	36	_	25.1
3.5	60	211.0	210.0	60.4	26	90.3	25	79	–	54	40
	15	71.1	60.0	55.1	30	50.3	20	145	37.5	–	23.8
4	60	241.1	240.0	60.8	30	90.3	28	82	•	53	40
	15	79.9	67.5	59.1	34	60.3	20	160	45.2	.	24.1
4.5	60	271.2	270.0	68.2	34	100.3	30	92	–	61	40
	15	88.8	75.0	68.1	38	70.3	20	180	50.1		29.4
5	60	301.3	300.0	73.5	38	110.3	30	100		66	40
