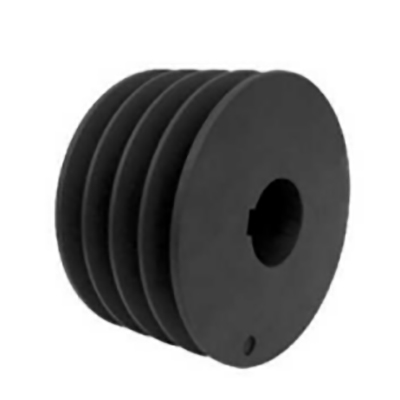

V belt pulleys with solid hub
Click to enlarge

V belt pulleys with solid hub

Category:
Description

V belt pulleys with solid hub

V belt pulleys with solid hub

SPZ V Belt Pulleys with Solid Hub

Table 1
Description P 0 Grooves N L D s B Type d
SPZ50 50 54 1 40 28 16 1 10
2 40 35 28 1 10
3 40 7 10
SPZ56 56 60 1 45 28 16 1 10
2 45 35 28 1 10
3 40 7 10
SPZ63 63 67 1 50 28 16 1 10
2 50 35 28 1 10
3 40 7 10
SPZ71 71 75 1 50 28 16 1 10
2 55 35 28 1 10
3 40 7 10
SPZ75 75 79 1 50 28 16 1 10
2 60 35 28 1 10
3 40 7 10
SPZ80 80 84 1 50 28 16 1 10
2 60 35 28 1 10
3 40 7 10
SPZ85 85 89 1 50 28 16 1 10
2 60 35 28 1 10
3 40 7 15
SPZ90 90 94 1 50 28 16 1 10
2 60 35 28 1 10
3 40 7 15
SPZ95 95 99 1 50 28 16 1 10
2 60 35 28 1 15
3 40 7 15
SPZ100 100 104 1 50 28 16 1 10
2 60 35 28 1 15
3 40 7 15
SPZ106 106 110 1 50 28 16 1 10
2 60 35 28 1 15
3 40 7 15
SPZ112 112 116 1 50 28 16 1 10
2 60 35 28 1 15
3 40 7 15
SPZ118 118 122 1 50 28 93 8 16 3 10
2 60 35 97 8 28 3 15
3 40 7 15
SPZ125 125 129 1 50 28 100 8 16 3 15
2 60 35 99 8 28 3 15
3 40 7 15
Table 2 V belt pulleys with solid hub
Description P 0 Grooves N L D S B Type d
SPZ132 132 136 1 50 28 106 8 16 3 15
2 60 40 105 8 28 3 15
3 60 40 106 8 40 8 15
SPZ140 140 144 1 50 28 114 8 16 3 15
2 60 40 114 8 28 3 15
3 60 40 114 8 40 8 15
SPZ150 150 154 1 50 28 124 8 16 3 15
2 60 40 124 8 28 3 15
3 60 40 124 8 40 8 20
SPZ160 160 164 1 55 32 134 8 16 3 15
2 60 40 134 8 28 3 15
3 65 45 134 8 40 8 20
SPZ180 180 184 1 55 32 154 8 16 5 20
2 60 40 154 8 28 5 20
3 65 45 154 8 40 5 20
SPZ200 200 204 1 55 32 174 8 16 5 20
2 60 40 174 8 28 5 20
3 65 45 174 10 40 5 20
SPZ224 224 228 1 55 32 198 8 16 5 20
2 60 40 198 8 28 5 20
3 65 45 198 10 40 5 20
SPZ250 250 254 1 55 32 224 8 16 5 20
2 60 40 224 10 28 5 20
3 65 45 224 12 40 5 20
SPZ280 280 284 2 65 45 254 12 28 5 20
SPZ315 315 319 2 65 45 289 12 28 5 20

SPA V Belt Pulleys with Solid Hub

Table 1 V belt pulleys with solid hub
Description P 0 Grooves N L D S B Type d
SPA40 40 45.5 1 40 35 20 1 10
SPA50 50 55.5 1 40 35 20 1 10
2 40 45 35 1 10
SPA60 60 65.5 1 40 35 20 1 10
2 40 45 35 1 10
3 50 7 10
SPA71 71 76.5 1 40 40 20 1 10
2 50 45 35 1 10
3 52 52 50 1 10
SPA75 75 80.5 1 40 40 20 1 10
2 50 45 35 1 10
3 50 7 10
4 65 7 10
5 80 7 10
SPA80 80 85.5 1 45 40 20 1 10
2 50 45 35 1 10
3 50 7 15
4 65 7 15
5 80 7 15
SPA85 85 90.5 1 45 40

45

 20 1 10
2 50 35 1 10
3 50 7 15
4 65 7 15
5 80 7 15
SPA90 90 95.5 1 45 40 20 1 10
2 60 45 35 1 15
3 50 7 15
4 65 7 15
5 80 7 15
SPA95 95 100.5 1 45 40 20 1 10
2 60 45 35 1 15
3 50 7 15
4 65 7 15
5 80 7 15
SPA100 100 105.5 1 48 40 20 1 10
2 60 45 35 1 15
3 50 7 15
4 52 67 65 7 15
5 52 67 80 7 15
SPA106 106 111.5 1 48 40 20 1 10
2 60 45 35 1 15
SPA112 112 117.5 1 48 40 20 1 10
2 60 45 35 1 15
3 50 7 15
4 52 79 65 2 15
5 52 79 80 2 15
SPA118 118 123.5 1 60 40

45

 20 1 15
2 60 35 1 15
3 50 7 15
4 52 87 65 2 15
5 52 87 80 2 15
Table 2
Description P 0 Grooves N L D S B Type d
SPA132 132 137.5 1 60 40 20 1 15
2 60 45 35 1 15
3 50 7 15
4 52 97 65 2 15
5 52 97 80 2 15
SPA140 140 145.5 1 60 40 107 10 20 3 15
2 60 45 107 10 35 3 15
3 65 52 107 12 50 3 15
4 52 107 65 2 20
5 52 107 80 2 20
SPA150 150 155.5 1 60 40 117 10 20 3 15
2 60 45 117 10 35 3 15
3 65 52 117 12 50 3 20
4 52 117 65 2 20
5 52 117 80 2 20
SPA160 160 165.5 1 60 40 127 10 20 3 15
2 60 45 127 10 35 3 15
3 70 52 127 12 50 3 20
4 70 52 127 18 65 4 20
5 80 52 127 18 80 4 20
SPA170 170 175.5 1 60 40 137 10 20 3 15
2 60 45 137 10 35 3 15
3 70 52 137 12 50 3 20
4 80 52 137 18 65 4 20
5 80 52 137 18 80 4 20
SPA180 180 185.5 1 65 40 147 12 20 3 20
2 70 50 147 12 35 3 20
3 70 52 147 12 50 3 20
4 80 60 147 18 65 4 20
5 80 65 147 18 80 4 20
SPA200 200 205.5 1 65 45 167 12 20 3 20
2 70 50 167 12 35 3 20
3 70 52 167 12 50 3 20
4 80 60 167 18 65 4 20
5 80 65 167 18 80 4 20
SPA224 224 229.5 1 65 45 192 12 20 3 20
2 70 50 192 12 35 3 20
3 80 52 192 12 50 3 20
4 90 60 192 18 65 4 20
5 90 65 192 18 80 4 20
SPA250 250 255.5 1 75

75

 45 217 12 20 3 20
2 50 217 12 35 3 20
3 80 60 217 12 50 3 20
4 90 65 217 18 65 3 20
5 90 65 217 18 80 4 20
SPA280 280 285.5 1 75 45 247 14 20 5 20
2 80 50 247 14 35 5 20
3 80 60 247 14 50 5 20
4 90 65 247 14 65 5 20
5 100 65 247 14 80 6 25
Table 3
Description P 0 Grooves N L D S B Type d
SPA300 300 305.5 1 75 50 267 14 20 5 20
2 80 50 267 14 35 5 20
3 80 60 267 14 50 5 20
4 90 65 267 14 65 5 20
5 100 65 267 14 80 6 25
SPA315 315 320.5 1 75 50 282 14 20 5 20
2 80 50 282 14 35 5 20
3 90 60 282 14 50 5 20
4 90 65 282 14 65 5 20
5 100 65 282 16 80 6 25
SPA355 355 360.5 1 75 50 322 14 20 5 20
2 80 50 322 14 35 5 20
3 90 60 322 14 50 5 20
4 90 65 322 16 65 5 25
5 100 65 322 18 80 6 25
SPA400 400 405.5 1 90 50 367 14 20 5 20
2 90 50 367 14 35 5 20
3 100 60 367 16 50 5 25
4 100 65 367 20 65 5 25
5 100 65 367 22 80 6 25
SPA450 450 455.5 1 90 50 417 14 20 5 20
2 100 50 417 14 35 5 25
3 100 60 417 16 50 5 25
4 105 65 417 20 65 6 25
5 105 65 417 22 80 6 25
SPA500 500 505.5 1 90 50 467 14 20 5 20
2 100 50 467 16 35 5 25
3 105 60 467 20 50 5 25
4 105 65 467 20 65 6 25
5 110 65 467 22 80 6 25
SPA560 560 565.5 1 100 50 527 15 20 5 25
2 100 50 527 20 35 5 25
3 120 65 527 20 50 5 25
4 120 65 527 20 65 5 25
5 120 80 527 24 80 5 25
6 120 80 527 26 95 6 25
SPA600 600 605.5 1 100 50 567 16 20 5 25
2 110 50 567 20 35 5 25
3 120 65 567 20 50 5 25
4 120 80 567 24 65 5 25
5 120 80 567 24 80 5 25
6 120 80 567 26 95 6 25
SPA630 630 635.5 1 100 50 597 16 20 5 25
2 110 50 597 20 35 5 25
3 120 65 597 20 50 5 25
4 120 80 597 20 65 5 25
5 120 80 597 24 80 5 25
6 120 80 597 26 95 6 25

SPB V Belt Pulleys with Solid Hub

Table 1
Description P 0 Grooves N L D S B Type d
SPB70 70 77 1 45 45 25 1 10
2 45 48 44 1 10
SPB80 80 87 1 50 45 25 1 10
2 50 48 44 1 10
3 63 7 15
4 82 7 15
5 101 7 15
SPB90 90 97 1 50 45 25 1 10
2 50 49 44 1 10
3 63 7 15
4 82 7 15
5 101 7 15
SPB100 100 107 1 52 45 25 1 10
2 55 55 44 1 15
3 63 7 15
4 82 7 15
5 101 7 15
SPB112 112 119 1 55 45 25 1 15
2 60 55 44 1 15
3 63 7 15
4 82 7 20
5 101 7 20
SPB120 120 127 1 55 45 25 1 15
2 60 55 44 1 15
3 63 7 15
4 82 7 20
5 101 7 20
6 120 7 20
SPB125 125 132 1 58 45 25 1 15
2 60 55 44 1 15
3 60 83 63 2 15
4 60 83 82 2 20
5 60 83 101 2 20
6 60 83 120 2 20
SPB132 132 139 1 60 45 25 1 15
2 60 55 44 1 15
3 60 88 63 2 15
4 60 88 82 2 20
5 60 88 101 2 20
6 60 88 120 2 20
SPB140 140 147 1 65 45 25 1 20
2 65 55 44 1 20
3 60 98 63 2 20
4 60 98 82 2 20
5 60 98 101 2 20
6 60 98 120 2 20
SPB150 150 157 1 65 45 25 1 20
2 65 55 44 1 20
3 60 108 63 2 20
4 60 108 82 2 20
5 60 108 101 2 20
6 60 108 120 2 20
Table 2
Description P 0 Grooves N L D S B Type d
SPB160 160 167 1 65 45 118 12 25 3 20
2 70 55 118 12 44 3 20
3 60 118 63 2 20
4 60 118 82 2 20
5 60 118 101 2 20
6 65 118 120 2 20
SPB170 170 177 1 65 45 128 12 25 3 20
2 70 55 128 12 44 3 20
3 70 60 128 63 4 20
4 60 128 82 4 20
5 60 128 101 4 20
6 65 128 120 4 20
SPB180 180 187 1 65 45 138 12 25 3 20
2 70 55 138 12 44 3 20
3 80 60 138 18 63 4 20
4 60 138 82 4 20
5 70 138 101 4 20
6 70 138 120 4 20
SPB200 200 207 1 70 45 158 14 25 3 20
2 70 55 158 14 44 3 20
3 80 60 158 18 63 4 20
4 88 60 158 25 82 4 20
5 96 70 158 101 4 25
6 96 70 158 120 4 25
SPB212 212 219 1 70 45 170 14 25 3 20
2 77 55 170 14 44 3 20
3 80 60 170 18 63 4 20
4 88 60 170 25 82 4 20
5 96 70 170 25 101 4 25
6 104 80 170 25 120 4 25
SPB225 225 232 1 70 45 183 14 25 3 20
2 77 55 183 14 44 3 20
3 80 60 183 18 63 4 20
4 88 60 183 25 82 4 20
5 96 70 183 25 101 4 25
6 104 80 183 25 120 4 25
SPB250 250 257 1 70 50 208 14 25 3 20
2 77 55 208 14 44 3 20
3 80 60 208 18 63 4 20
4 96 70 208 25 82 4 25
5 104 75 208 25 101 4 25
6 104 80 208 25 120 4 25
SPB280 280 287 1 76 50 238 14 25 3 20
2 80 55 238 14 44 3 20
3 90 60 238 18 63 4 20
4 96 65 238 25 82 4 25
5 104 75 238 25 101 4 25
6 104 80 238 25 120 4 25
SPB300 300 307 1 76 50 258 15 25 5 20
2 80 55 258 15 44 5 20
3 90 60 258 18 63 6 20
4 96 65 258 20 82 6 25
5 104 75 258 22 101 6 25
6 104 80 258 24 120 6 25
Table 3
Description P 0 Grooves N L D S B Type d
SPB315 315 322 1 76 50 273 15 25 5 20
2 88 60 273 15 44 5 20
3 90 60 273 18 63 6 20
4 96 65 273 20 82 6 25
5 104 75 273 22 101 6 25
6 120 90 273 25 120 6 25
SPB355 355 362 1 80 50 313 15 25 5 20
2 88 60 313 15 44 5 20
3 92 60 313 18 63 6 25
4 96 65 313 20 82 6 25
5 104 75 313 22 101 6 25
6 120 90 313 25 120 6 25
SPB400 400 407 1 85 55 358 18 25 5 20
2 88 60 358 18 44 5 20
3 96 65 358 22 63 5 25
4 104 75 358 24 82 6 25
5 112 85 358 24 101 6 25
6 120 100 358 28 120 6 25
SPB450 450 457 1 90 60 408 18 25 5 20
2 90 60 408 18 44 5 20
3 96 65 408 22 63 5 25
4 104 75 408 24 82 6 25
5 112 85 408 26 101 6 25
6 120 100 408 28 120 6 25
SPB500 500 507 1 100 60 458 18 25 5 25
2 100 65 458 20 44 5 25
3 104 75 458 24 63 5 25
4 112 85 458 28 82 5 25
5 120 90 458 30 101 6 25
6 129 105 458 33 120 6 25
SPB560 560 567 1 100 60 518 18 25 5 25
2 100 65 518 20 44 5 25
3 104 75 518 24 63 5 25
4 112 85 518 28 82 5 25
5 120 90 518 30 101 6 25
6 129 105 518 33 120 6 25
SPB600 600 607 1 100 60 558 18 25 5 25
2 100 65 558 20 44 5 25
3 104 75 558 24 63 5 25
4 115 85 558 28 82 5 25
5 120 90 558 30 101 6 25
6 129 105 558 33 120 6 25
SPB630 630 637 1 100 60 588 18 25 5 25
2 100 65 588 20 44 5 25
3 105 75 588 24 63 5 25
4 120 85 588 28 82 5 25
5 128 90 588 30 101 6 25
6 140 105 588 33 120 6 25

SPC V Belt Pulleys with Solid Hub

Table 1
Description P 0 Grooves; N L D S B Type d
SPC100 100 109.6 1 60 50 34 1 15
SPC120 120 129.6 1 65 50 34 1 15
2 59.5 7 15
SPC140 140 149.6 1 70 50 34 1 20
2 59.5 7 20
3 65 83 85 2 20
4 80 83 110.5 2 20
SPC150 150 159.6 1 70 50 34 1 20
2 59.5 7 20
3 65 93 85 2 20
4 80 93 110.5 2 20
5 96 93 136 2 20
SPC160 160 169.6 1 72 50 34 1 20
2 59.5 7 20
3 65 103 85 2 20
4 80 103 110.5 2 20
5 96 103 136 2 20
6 96 103 161.5 2 20
SPC180 180 189.6 1 76 50 123 16 34 3 20
2 80 60 123 16 59.5 8 20
3 82 65 123 18 85 4 20
4 82 80 123 20 110.5 4 20
5 82 96 123 20 136 4 20
6 82 96 123 25 161.5 4 20
SPC200 200 209.6 1 76 50 143 16 34 3 20
2 80 60 143 16 59.5 3 20
3 86 65 143 18 85 4 20
4 90 90 143 25 110.5 4 20
5 90 100 143 25 136 4 25
6 90 100 143 25 161.5 4 25
SPC225 225 234.6 1 86 50 168 16 34 3 20
2 88 60 168 18 59.5 3 20
3 90 70 168 21 85 4 20
4 90 90 168 25 110.5 4 25
5 90 100 168 25 136 4 25
6 90 100 168 25 161.5 4 25
SPC250 250 259.6 1 86 50 193 16 34 3 20
2 92 60 193 18 59.5 3 20
3 92 70 193 21 85 4 20
4 100 90 193 25 110.5 4 25
5 102 100 193 25 136 4 25
6 102 100 193 25 161.5 4 25
SPC280 280 289.6 1 86 50 223 16 34 3 20
2 92 60 223 18 59.5 3 20
3 92 70 223 21 85 4 20
4 100 90 223 25 110.5 4 25
5 102 100 223 25 136 4 25
6 102 100 223 25 161.5 4 25
SPC300 300 309.6 1 86 50 243 16 34 3 20
2 92 60 243 18 59.5 3 20
3 92 70 243 21 85 4 20
4 100 90 243 25 110.5 4 25
5 104 100 243 25 136 4 25
6 104 100 243 25 161.5 4 25
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “V belt pulleys with solid hub”

Your email address will not be published. Required fields are marked *

Packing&Shipping & Delivery

china Packing Shipping Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.
We also can custom color package according to your demand
Company Profile
Company Profile
FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains Sprockets Pulleys Timing belt Pulley V-belt Pulley
Sheaves Coupings Bush &Hub Gear& Rack V-Belt
Locking Assembly Pulley Gearbox Reducer Shaft Collar
Rod End Bearing Clevis PTO Chain Guide Belt Guide
Rubber Buffer Chain Tensioner PTO Drive Shafts Universal Joints Roller Chains
Conveyor Chains V-Belts Worm Gearbox Helical Gear Worm
Agricultural Chain CNC Proces Parts Casting Stamping
Powder Metallurgy CNC Proces Parts Casting Stamping

What Products Do you sell ?

We  are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable







Related products

Plain bore

Plain bore

Falt belt pulleys for taper bushes

Falt belt pulleys for taper bushes

V belt pulley

China SPC series V Belt Pulleys For Taper Bushes Factory

,
V belt pulley

SPB series V Belt Pulleys China Manufacturer

,
V belt pulley

SPA series V Belt Pulleys China Factory

,
V belt pulley

China SPZ series V Belt Pulleys Factory Manufacturer

,
