Variable Speed Sheaves
Speed adjustments are part of the pulley’s design benefits. The secret is within the threaded, angular faced discs that are the core of the V-shaped groove on each pulley. If you need more speed, move the discs toward each other. This alignment produces a belt that simply rides higher in the groove. Achieve a larger pitch diameter than before with this adjustment. Meet every requirement in your industry by slowing the machinery down to a specific rate. Simply increase the space between the two discs, which slows down the belt’s motion.

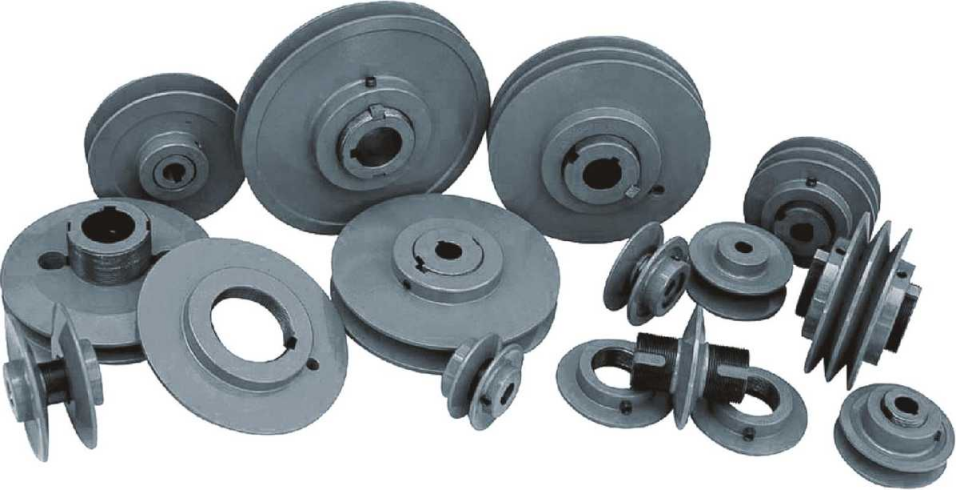

Variable Speed Sheaves
1VP :Single Groove Variable Pitch Sheaves for “3L”,”4L”,”5L“,”A”,”B” or “5v” Belts
2VP :Single Groove Variable Pitch Sheaves for “3L”，“4L”,”5L”，“A”,”B” or “5v” Belts
1VL, 1VM:”1VL” “1VM” Sheaves are machined all over.Both are furnished with Standard Keyseats and Hollow Head Setscrews and are packaged 20 pieces per carton.

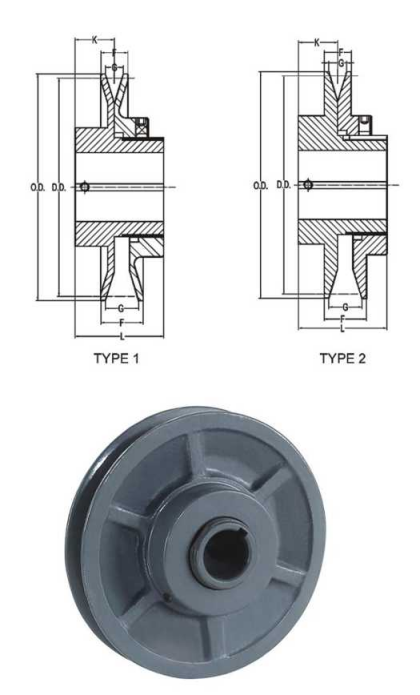

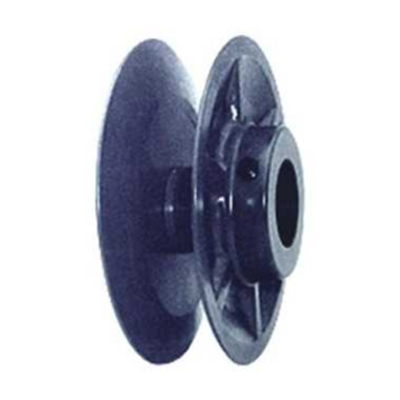

1VP Cast Iron Sheaves
Single Groove Variable Pitch Sheaves for “3L”,”4L”,”5L’,”A”,”B” or “5v” Belts Table No. 1 Stock Sizes-Finished Bore (Inches)
DIAMETER range Stock Bores Marked “X”
| Part
No. |
Type | “3L”BELTS | “4L” or “A”BELTS | “5L”or”B” BELTS | “5V”Belts | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 5/8 | ||||||||||||
| Min.
Pitch |
Turns
Open |
Max.
Pitch |
Turns
Open |
Min.
Datum |
Turns
Open |
Max.
Datum |
Turns
Open |
Min.
Datu m |
Turns
Open |
Max
Datum |
Turns
Open |
Min.
Pitch |
Turns
Open |
Max.
Pitch |
Turns
Open |
|||||||||||
| 1VP25 | 1 | 1.4 | 4 | 2.2 | 0 | – | – | – | – | – | – | – | – | X | ||||||||||||
| 1VP30 | 1 | 1.8 | 4 | 2.7 | 0 | X | X | X | – | – | – | – | – | – | ||||||||||||
| 1VP34 | 1 | 1.7 | 4 | 2.5 | 0 | 1.9 | 5 | 2.9 | 0 | 2.4 | 5 | 3.2 | 1 | – | – | – | – | X | X | X | X | – | – | – | – | – |
| 1VP40 | 1 | 2.3 | 4 | 3.1 | 0 | 2.4 | 5 | 3.4 | 0 | 2.7 | 6 | 3.7 | 1 | – | – | – | – | X | X | X | X | – | – | – | – | – |
| 1VP44 | 1 | 2.7 | 4 | 3.5 | 0 | 2.8 | 5 | 3.8 | 0 | 3.1 | 6 | 4.1 | 1 | – | _ | – | – | X | X | X | – | – | – | – | – | – |
| 1VP44 | 2 | 2.7 | 4 | 3.5 | 0 | 2.8 | 5 | 3.8 | 0 | 3.1 | 6 | 4.1 | 1 | X | X | X | – | – | – | |||||||
| 1VP50 | 1 | 3.3 | 4 | 4.1 | 0 | 3.4 | 5 | 4.4 | 0 | 3.7 | 6 | 4.7 | 1 | – | – | – | – | X | X | X | – | – | – | – | – | – |
| 1VP50 | 2 | 3.3 | 4 | 4.1 | 0 | 3.4 | 5 | 4.4 | 0 | 3.7 | 6 | 4.7 | 1 | X | X | X | – | – | – | |||||||
| 1VP56 | 1 | 3.9 | 4 | 4.7 | 0 | 4.0 | 5 | 5.0 | 0 | 4.3 | 6 | 5.3 | 1 | – | – | – | _ | X | X | X | – | – | – | – | – | – |
| 1VP56 | 2 | 3.9 | 4 | 4.7 | 0 | 4.0 | 5 | 5.0 | 0 | 4.3 | 6 | 5.3 | 1 | X | X | X | – | – | – | |||||||
| 1VP60 | 2 | – | – | – | – | 4.2 | 5 | 5.2 | 0 | 4.3 | 6 | 5.5 | 0 | – | – | – | – | – | – | X | X | – | X | – | X | – |
| 1VP62 | 2 | 4.5 | 4 | 5.3 | 0 | 4.6 | 5 | 5.6 | 0 | 4.9 | 6 | 5.9 | 1 | 5.3 | 6 | 6.3 | 1 | – | X | X | X | X | X | X | X | – |
| 1VP65 | 2 | – | – | – | – | 4.7 | 5 | 5.7 | 0 | 4.8 | 6 | 6.0 | 0 | 5.2 | 6 | 6.4 | 0 | – | – | X | X | – | X | – | X | – |
| 1VP68 | 2 | 5.1 | 4 | 5.9 | 0 | 5.2 | 5 | 6.2 | 0 | 5.5 | 6 | 6.5 | 1 | 5.9 | 6 | 6.9 | 1 | – | X | X | X | X | X | X | X | – |
| 1VP71 | 2 | – | – | – | – | 5.3 | 5 | 6.3 | 0 | 5.4 | 6 | 6.6 | 0 | 5.8 | 6 | 7.0 | 0 | – | – | X | X | – | X | – | X | – |
| 1VP75 | 2 | – | – | – | – | 5.7 | 5 | 6.7 | 0 | 5.8 | 6 | 7.0 | 0 | 6.2 | 6 | 7.4 | 0 | – | – | X | X | – | X | – | X | – |
All fitted with Hollow Head Setscrews.

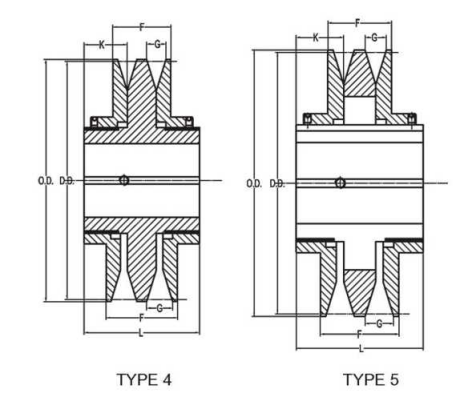

Table No.2 Dimensions (Inches)
| Part
No. |
Type | O.D. | F | G | L | K | wt.
Lbs |
||
| Max. | Min. | Max. | Min. | ||||||
| 1VP25 | 2.32 | 13/16 | 9/16 | 5/8 | 3/8 | 1 19/32 | 5/8 | 0.7 | |
| 1VP30 | 1 | 2.87 | 13/16 | 9/16 | 5/8 | 3/8 | 1 21/32 | 19/32 | 1.1 |
| 1VP34 | 1 | 3.15 | 1 | 11/16 | 13/16 | 1/2 | 1 7/8 | 21/32 | 1.4 |
| 1VP40 | 1 | 3.75 | 11/16 | 11/16 | 7/8 | 1/2 | 1 7/8 | 21/32 | 1.9 |
| 1VP44 | 1 | 4.15 | 11/16 | 11/16 | 7/8 | 1/2 | 1 7/8 | 21/32 | 2.4 |
| 1VP44 | 2 | 4.15 | 1 1/8 | 3/4 | 7/8 | 1/2 | 1 7/8 | 11/16 | 2.9 |
| 1VP50 | 1 | 4.75 | 11/16 | 11/16 | 7/8 | 1/2 | 2 | 25/32 | 2.9 |
| 1VP50 | 2 | 4.75 | 11/8 | 3/4 | 7/8 | 1/2 | 1 7/8 | 11/16 | 3.6 |
| 1VP56 | 1 | 5.35 | 11/16 | 11/16 | 7/8 | 1/2 | 1 7/8 | 21/32 | 3.8 |
| 1VP56 | 2 | 5.35 | 11/8 | 3/4 | 7/8 | 1/2 | 1 7/8 | 11/16 | 4.4 |
| 1VP60 | 2 | 6.00 | 11/4 | 7/8 | 1 1/32 | 21/32 | 1 21/32 | 7/16 | 6.5 |
| 1VP62 | 2 | 5.95 | 11/8 | 3/4 | 7/8 | 1/2 | 1 29/32 | 21/32 | 6.1 |
| 1VP65 | 2 | 6.50 | 11/4 | 7/8 | 1 1/32 | 21/32 | 1 21/32 | 7/16 | 6.8 |
| 1VP68 | 2 | 6.55 | 11/8 | 3/4 | 7/8 | 1/2 | 1 29/32 | 21/32 | 7.3 |
| 1VP71 | 2 | 7.10 | 11/4 | 7/8 | 1 1/32 | 21/32 | 1 21/32 | 7/16 | 8.2 |
| 1VP75 | 2 | 7.50 | 11/4 | 7/8 | 1 1/32 | 21/32 | 1 21/32 | 7/16 | 9.2 |

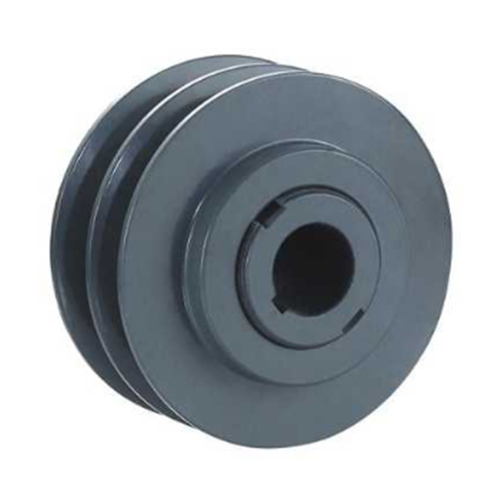

2VP Cast Iron Sheaves
 |
|
Table No.1
Two Groove Variable Pitch Sheaves for “3L”，“4L”，“5L”，“A”，“B” or “5v” Belts
Stock Sizes-Finished Bore (Inches)
| Part
No. |
Type | DIAMETER RANGE | Stork Bores Marked “x” | |||||||||||||||||||||||
| “3L” BELTS | “4L”or”A”BELTS | “5L”OR”B”BELTS | -5V..BELTS | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 5/8 | ||||||||||||||
| Min.
Pitch |
Turns
Open |
Max.
Pitch |
Turns
Open |
Min.
Pitch |
Turns
Open |
Max.
Pitch |
Turns
Open |
Min.
Pitch |
Turns
Open |
Max.
Pitch |
Turns
Open |
Min.
Pitch |
Turns
Open |
Max.
Pitch |
Turns
Open |
|||||||||||
| 2VP36 | 4 | 1.9 | 4 | 2.7 | 0 | 2 | 5 | 3.0 | 0 | 2.5 | 5 | 3.3 | 1 | – | – | – | – | X | X | X | X | – | – | – | – | – |
| 2VP42 | 4 | 2.5 | 4 | 3.3 | 0 | 2.6 | 5 | 3.6 | 0 | 2.9 | 6 | 3.9 | 1 | – | – | – | – | – | X | X | X | X | X | – | – | – |
| 2VP50 | 5 | 3.3 | 4 | 4.1 | 0 | 3.4 | 5 | 4.4 | 0 | 3.7 | 6 | 4.7 | 1 | – | – | – | – | – | X | X | X | X | X | – | – | – |
| 2VP56 | 5 | 3.9 | 4 | 4.7 | 0 | 4 | 5 | 5.0 | 0 | 4.3 | 6 | 5.3 | 1 | – | – | – | – | – | X | X | X | X | X | – | – | – |
| 2VP60 | 5 | – | – | – | – | 4.2 | 5 | 5.2 | 0 | 4.3 | 6 | 5.5 | 0 | – | – | – | – | – | – | X | X | – | X | – | X | – |
| 2VP62 | 5 | 4.5 | 4 | 5.3 | 0 | 4.6 | 5 | 5.6 | 0 | 4.9 | 6 | 5.9 | 1 | 5.3 | 6 | 6.3 | 1 | – | – | X | X | X | X | X | X | – |
| 2VP65 | 5 | – | – | – | – | 4.7 | 5 | 5.7 | 0 | 4.8 | 6 | 6.0 | 0 | 5.2 | 6 | 6.4 | 0 | – | _ | X | X | – | X | – | X | – |
| 2VP68 | 5 | 5.1 | 4 | 5.9 | 0 | 5.2 | 5 | 6.2 | 0 | 5.5 | 6 | 6.5 | 1 | 5.9 | 6 | 6.9 | 1 | – | – | – | X | X | X | X | X | – |
| 2VP71 | 5 | – | – | – | – | 5.3 | 5 | 6.3 | 0 | 5.4 | 6 | 6.6 | 0 | 5.8 | 6 | 7.0 | 0 | – | – | X | X | – | X | – | X | – |
| 2VP75 | 5 | – | – | 5.7 | 5 | 6.7 | 0 | 5.8 | 6 | 7.0 | 0 | 6.2 | 6 | 7.4 | 0 | – | – | X | X | – | X | – | X | – | ||
All fitted with Hollow Head Setscrews.
Table No.2
Dimensions (Inches)
| Part
No. |
DIMENSIONS(lnches) | wt.
Lbs |
||||||||
| Type | O.D | F | G | L | K | |||||
| Max. | Min. | Max. | Min. | |||||||
| 2VP36 | 4 | 3.35 | 2 | 13/8 | 13/16 | 1/2 | 3 | 1 | 3/16 | 3.4 |
| 2VP42 | 4 | 3.95 | 2 1/8 | 1 3/8 | 7/8 | 1/2 | 3 | 1 | 3/16 | 4.4 |
| 2VP50 | 5 | 4.75 | 2 1/8 | 1 3/8 | 7/8 | 1/2 | 3 | 1 | 3/16 | 6.3 |
| 2VP56 | 5 | 5.35 | 2 1/8 | 13/8 | 7/8 | 1/2 | 3 | 1 | 3/16 | 7.8 |
| 2VP60 | 5 | 6.00 | 2 3/8 | 1 5/8 | 1/32 | 21/32 | 3 1/4 | 1 | 1/4 | 10.6 |
| 2VP62 | 5 | 5.95 | 2 1/8 | 1 3/8 | 7/8 | 1/2 | 3 | 1 | 3/16 | 10 |
| 2VP65 | 5 | 6.50 | 2 3/8 | 1 5/8 | 1 1/32 | 21/32 | 3 1/4 | 1 | 1/4 | 12.3 |
| 2VP68 | 5 | 6.55 | 2 1/8 | 1 3/8 | 7/8 | 1/2 | 3 | 1 | 3/16 | 11.7 |
| 2VP71 | 5 | 7.10 | 2 3/8 | 1 5/8 | 1 1/32 | 21/32 | 3 1/4 | 1 | 1/4 | 14.6 |
| 2VP75 | 5 | 7.50 | 2 3/8 | 1 5/8 | 1 1/32 | 21/32 | 3 1/4 | 1 | 1/4 | 16.5 |
Table No.3 Standard Keyseat
| Bore Range | Keyseat |
| 1/2 | None |
| 5/8-718 | 3/16×3/32 |
| 1-1 1/4 | 1/4×1/8 |
| 1 3/8 | 5/16×5/32 |
1VL 1VM Cast Iron Sheaves
 |
 |
Standard Key seats
| Bore Range | Keyseat |
| 1/2 | none |
| 5/8-7/8 | 3/16×3/32 |

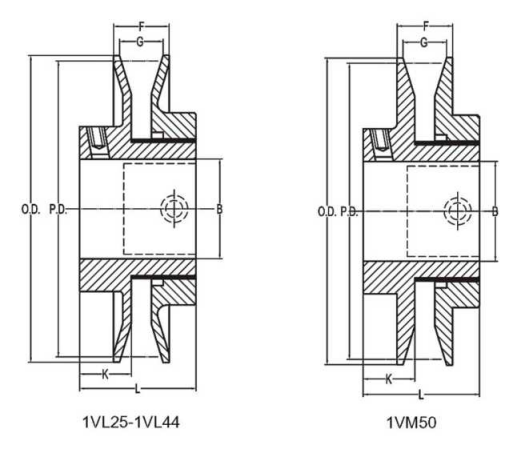

Table No. 1
Stock “VL” and “VM” Variable Pitch Sheaves
| Part
No. |
DIAMETER RANGE | Stork Bores Marked “x” | ||||||||||||||
| “3L”BELTS | “4L”or”A”BELTS | “5L”or”B”BELTS | 1/2 | 5/8 | 3/4 | 7/8 | ||||||||||
| Min.
Pitch |
Turns
Open |
Max.
Pitch |
Turns
Open |
Min.
Datum |
Turns
Open |
Max.
Pitch |
Turns
Open |
Min.
Pitch |
Turns
Open |
Max.
Pitch |
Turns
Open |
|||||
| 1VL25 | 1.6 | 4 | 2.4 | 0 | X | X | – | – | ||||||||
| 1VL30 | 1.8 | 4 | 2.7 | 0 | X | X | – | – | ||||||||
| 1VL34 | 1.7 | 4 | 2.5 | 0 | 1.9 | 5 | 2.9 | 0 | 2.4 | 5 | 3.2 | 1 | X | X | X | – |
| 1VL40 | 2.3 | 4 | 3.1 | 0 | 2.4 | 5 | 3.4 | 0 | 2.7 | 6 | 3.7 | 1 | X | X | X | X |
| 1VL44 | 2.7 | 4 | 3.5 | 0 | 2.8 | 5 | 3.8 | 0 | 3.1 | 6 | 4.1 | 1 | X | X | X | X |
| 1VM50 | 3.3 | 4 | 4.1 | 0 | 3.4 | 5 | 4.4 | 0 | 3.7 | 6 | 4.7 | 1 | X | X | X | X |
| Table No. 2 | Dimensions | |||||||||||||||
| DIMENSIONS | ||||||||||||||||
| Part | ||||||||||||||||
| No. | O.D | F | G | I | K | wt. | ||||||||||
| Max. | Min. | Max. | Min. | Lbs | ||||||||||||
| 1VL25 | 2.50 | 25/32 | 17/32 | 5/8 | 3/8 | 11/2 | 37/64 | .8 | ‘WL”, MVMM Sheaves are machined all | |||||||
| 1VL30 | 2.87 | 25/32 | 17/32 | 5/8 | 3/8 | 11/2 | 37/64 | 1.0 | over.Both are furnished with Standard | |||||||
| 1VL34 | 3.15 | 1 | 5/8 | 7/8 | 1/2 | 1 11/16 | 37/64 | 1.1 | Keyseats and Hollow Head Setscrews. | |||||||
| 1VL40 | 3.75 | 1 | 5/8 | 7/8 | 1/2 | 1 11/16 | 37/64 | 1.3 | ||||||||
| 1VL44 | 4.15 | 1 | 5/8 | 7/8 | 1/2 | 1 11/16 | 37/64 | 1.3 | ||||||||
| 1VM50 | 4.75 | 1 1/16 | 11/16 | 7/8 | 1/2 | 1 7/8 | 21/32 | 2.8 | ||||||||
