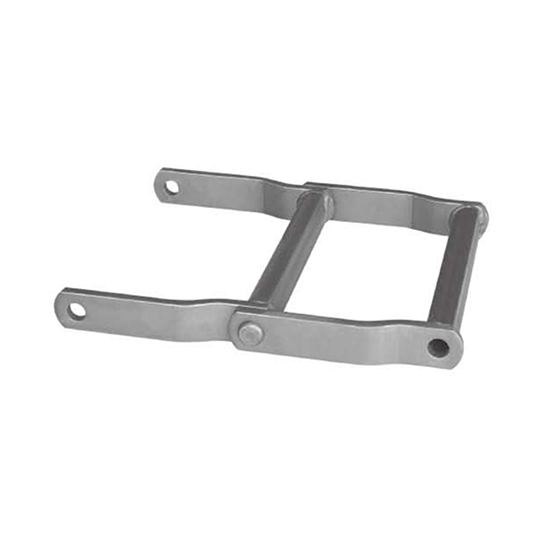

WDH110 wide series welded offset sidebar chain
Drag conveyor chains are designed for efficient and cost-effective performance, particularly in applications involving chips and sawdust. Similar to Mill Chains, these Drag Chains offer a blend of strength, precision, impact resistance, and wear resistance.
Built to endure severe shock loads and abrasive conditions, these versatile and durable chains provide extended wear life and reliable service in demanding environments. Whether for handling heavy materials or operating under tough conditions, Drag Conveyor Chains are engineered to maintain optimal performance over time.

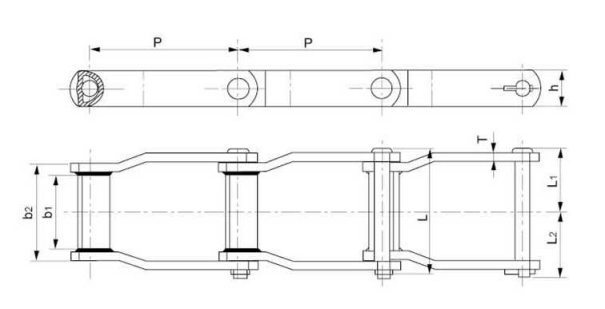

Diameter Data
chain
NO. |
Pitch
P mm |
Sizes of Bushing d1(max) mm | Diameter of Pin
d2(max) mm |
Height of Sidebar h2(max) mm | Inner Width of Close End b1(max) mm | Outer Width of Close End b2(max) mm | Thickness of Sidebar T(max) mm | Tensile Strength Q(min) KN | Weight per Meter
q kg/m |
WDH110 | 152.4 | D | 18.9 | 38.1 | 231.5 | 263.5 | 9.5 | 220 | 16.9 |
WDR110 | 152.4 | D | 18.9 | 38.1 | 231.5 | 263.5 | 9.5 | 170 | 16.9 |
WDH112 | 203.2 | D | 18.9 | 38.1 | 231.5 | 263.5 | 9.5 | 220 | 14.1 |
WDR112 | 203.2 | D | 18.9 | 38.1 | 231.5 | 263.5 | 9.5 | 170 | 14.1 |
WDH120 | 152.4 | A | 22.07 | 50.8 | 222.5 | 260.35 | 12.7 | 360 | 29.0 |
WDR120 | 152.4 | A | 22.07 | 50.8 | 222.5 | 260.35 | 12.7 | 310 | 29.0 |
WDH480 | 203.2 | A | 22.07 | 50.8 | 285.75 | 323.85 | 12.7 | 360 | 27.0 |
WDR480 | 203.2 | A | 22.07 | 50.8 | 285.75 | 323.85 | 12.7 | 310 | 27.0 |
WDH580 | 203.2 | E | 25.4 | 50.8 | 285.75 | 323.85 | 12.7 | 360 | 26.6 |
WDR580 | 203.2 | E | 25.4 | 50.8 | 285.75 | 323.85 | 12.7 | 310 | 26.6 |
WDH104 | 152.4 | D | 18.9 | 38.1 | 107.1 | 136.5 | 9.5 | 220 | 15.1 |
WDR104 | 152.4 | D | 18.9 | 38.1 | 107.1 | 136.5 | 9.5 | 170 | 15.1 |
WDH113 | 152.4 | C | 22.07 | 38.1 | 228.6 | 269.88 | 12.7 | 203 | 16.6 |
WDR113 | 152.4 | C | 22.07 | 38.1 | 228.6 | 269.88 | 12.7 | 165 | 16.6 |
WDH116 | 203.2 | B | 22.07 | 44.45 | 326.1 | 358.8 | 9.5 | 245 | 17.8 |
WDR116 | 203.2 | B | 22.07 | 44.45 | 326.1 | 358.8 | 9.5 | 203 | 17.8 |
