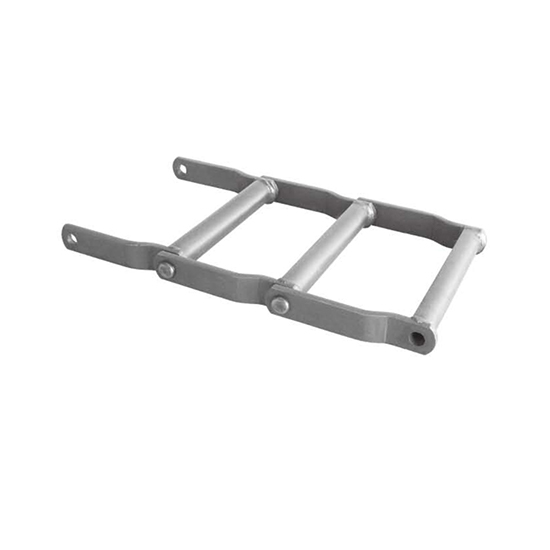

WDH2210 wide series welded offset sidebar chain

The welded offset sidebar chain is a robust type of welded steel chain designed for heavy-duty conveying applications. It features offset sidebar plates that extend beyond the chain’s width, offering a broader surface area for carrying substantial loads. While typically constructed from low or medium-carbon steel, this chain can also be made from stainless steel or alloy steel for enhanced performance in various environments.

The manufacturing process of welded offset sidebar chains involves forming individual links from steel wire or rod. These are cut to the desired length, bent into link shapes, and then welded together using an electric arc welding process. The resulting welds are strong and durable, ensuring secure and reliable connections between the links.

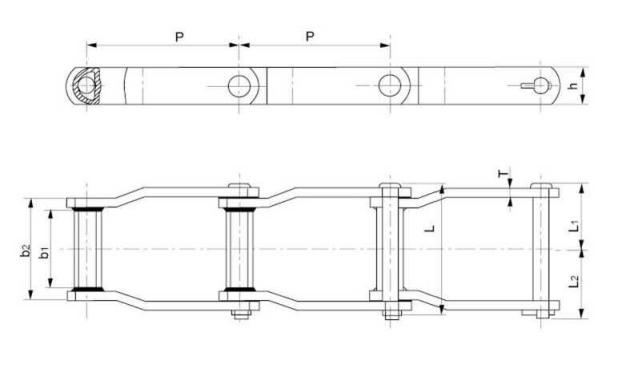

Diameter Data

Chain

NO.

Pitch

Sizes of Bushing d1(max) mm

Diameter of Pin

d2(max)

Height of Sidebar h2(max) mm

Inner Width of Close End b1(max) mm

Outer Width of Close End b2(max) mm

Thickness of Sidebar T(max) mm

Tensile Strength Q(min) KN

Weight per Meter

kg/m

WDH2210

155.85

18.9

38.1

236.5

263.5

9.5

220

16.9

WDR2210

155.85

18.9

38.1

236.5

263.5

9.5

170

16.9

WDH2380

207.29

22.07

50.8

285.75

323.85

12.7

360

26.7

WDR2380

207.29

22.07

50.8

285.75

323.85

12.7

310

26.7

WDH2480

203.2

22.07

50.8

285.75

323.85

12.7

360

27.0

WDR2480

203.2

22.07

50.8

285.75

323.85

12.7

310

27.0
