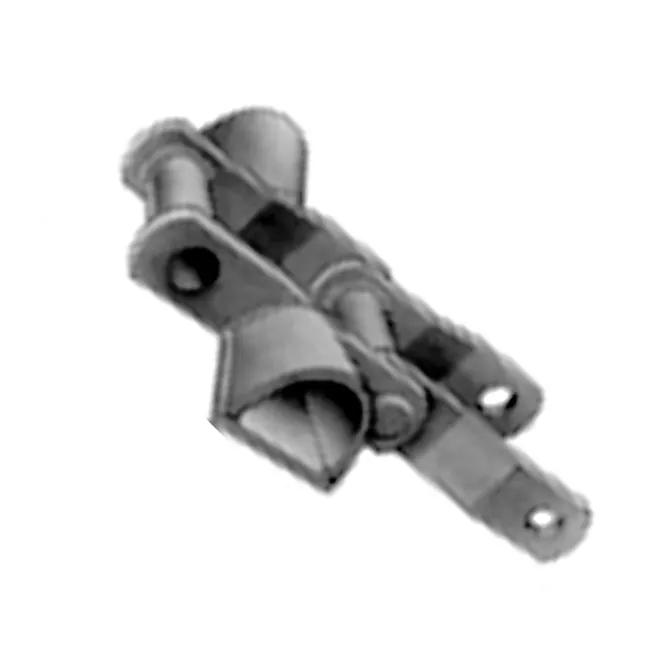

WH132 Welded Steel Mill Chain With C Cradle Attachment
WH132 Welded Steel Mill Chain
WH132 Welded Steel Mill Chain With C Cradle Attachment
|
 |
|

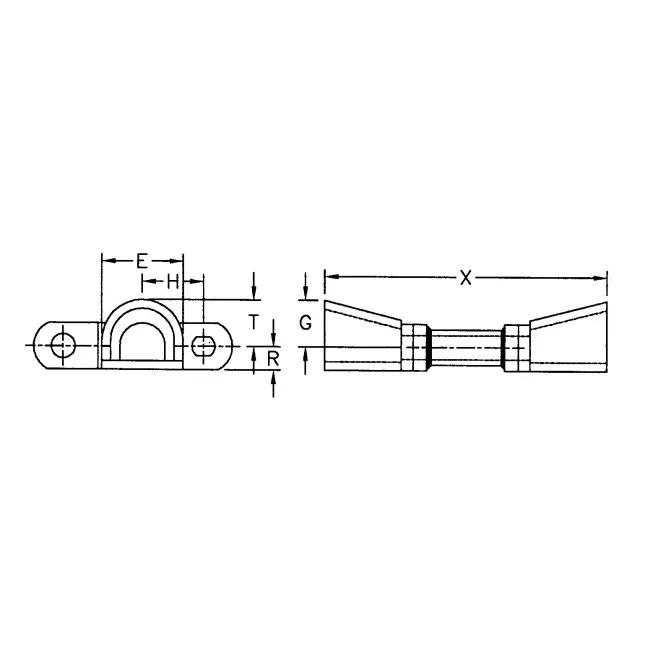

ATTACHMENT NUMBER
|
CHAIN NUMBER
|
WEIGHT PER FOOT LBS.
|
E
|
G
|
H
|
R
|
T |
X |
|
C-Cradle
|
WH132
|
29.00
|
3.50
|
2.00
|
2.62
|
1.00
|
1.00
|
11.00
|
Using American WH132 welded steel chain and roller chain and sprocket, the production capacity exceeds expectations. As the top engineering-level chain on the market today, this welding chain provides efficiency across industries. It is perfect for handling pulp, sugar, paper, grain processing, forestry applications, and other heavy transportation sectors. Interestingly, the WH132 steel chain will run on the same sprocket as it is cast corresponding to the H132 chain, which makes the conversion to welded steel chain seamless!
Each mill chain uses an offset linkage design for a weight reduction of 14.2 pounds per foot. With an ultra-high tensile strength of 122,000 pounds, this WH132 chain serves your industry well. The secret behind its durability is the high-precision reinforcement welding of high-quality steel. Each weld is supported by heat-treated parts, including barrels, side plates and pins. Solid metallurgy accompanies every shipment from the American roller chain. Order your 10-foot coils today. Put those 20 link strands working as per heat treated needle per coil to support the entire assembly.
