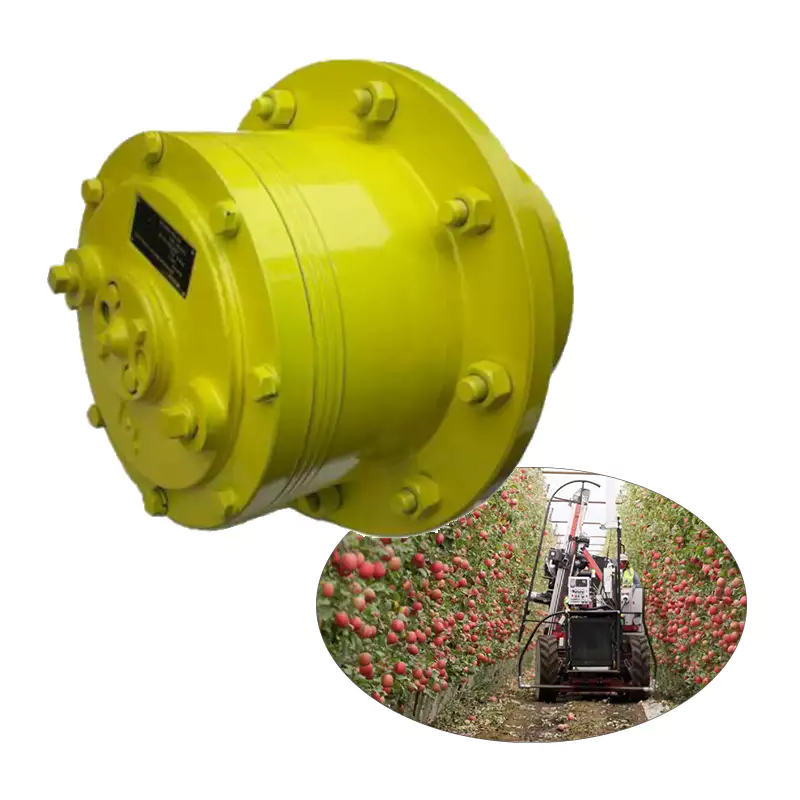

Wheel Drive in Apple Harvester Machine

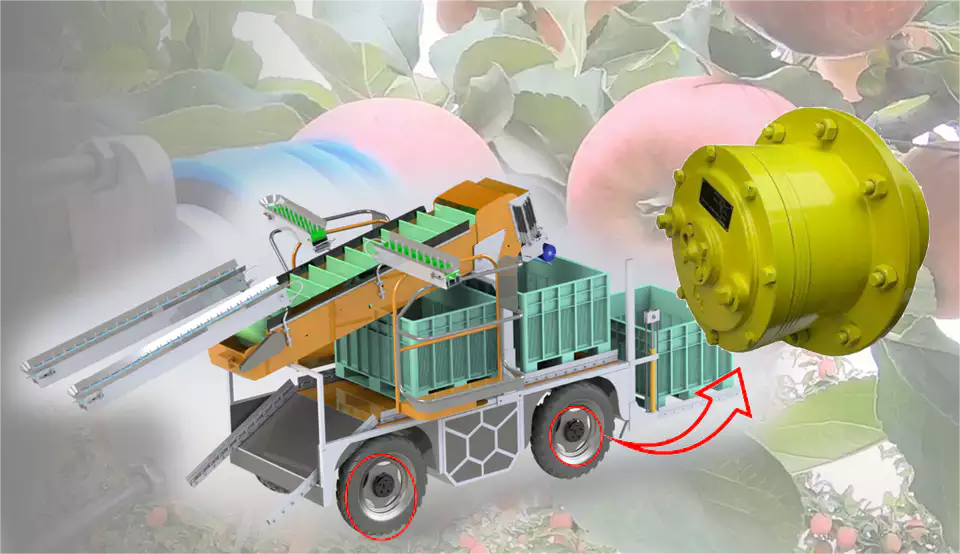

In an apple harvester(Wheel Drive for Apple Fruit Harvester Machine), the wheel drive planetary gearbox can be found between the drivetrain and the driving wheels. Its primary function is to provide the necessary speed reduction and torque increase to generate sufficient traction and maneuverability. This not only ensures smooth operation of the harvesting machinery but also enables the machine to adapt to the varying demands of the ground conditions during the picking process without compromising on performance or causing damage to the harvested fruits or tree roots.
Overall, the wheel drive planetary gearbox in an apple fruit harvester is a critical engineering solution that contributes significantly to the overall efficiency, productivity, and durability of the harvesting equipment.
Wheel Drive for Apple Fruit Harvester Machine Technical Specifications
Load capacity | Dynamic torque capacity of up to 60000Nm, ensuring sufficient driving force even when fully loaded with fruit. |
Speed ratio range | Provides a variety of speed ratio configurations, adjustable from 1:5.3 to 1:142, to adapt to different orchard terrains and picking speed needs. |
Material | The gear is made of high-quality alloy steel, and the wear resistance and hardness are enhanced through heat treatment process; the box is made of high-strength cast iron or aluminum alloy to ensure structural strength and anti-corrosion performance. |
Dimensions | Customizable |
Support | the gearbox has rotating housing flanges to fit wheel |
Applicable motors | axial piston hydraulic motors, hydraulic orbit motors or others |
Hydraulic motor options | pressure relief valve, overcenter valve |
Bearing: | robust bearing system absorbing the forces exerted by the ring gear |
Brake: | hydraulically released parking brake |
Why does orchard picking require a wheel drive reducer as a driving device?
The core role of wheel drive gearbox in orchard picking applications is that it can provide powerful, controllable and flexible power transmission characteristics suitable for such special application scenarios, significantly improving the operational efficiency and result quality of orchard mechanization.
-
Torque amplification and control
Wheel drive gearbox, especially the planetary gearbox design, can provide high torque output, which is crucial for orchard operation vehicles. Because such vehicles often need to operate in uneven, obstacle-rich off-road environments, and may carry heavy loads (such as baskets full of fruit or collection devices), high torque can ensure that the vehicle has enough power to overcome resistance and maintain stability travel.
-
Speed adjustment and stability
During the picking process, the speed control of the vehicle is very important. Moving too quickly can result in damage to the fruit or safety issues for the picking workers. The wheel drive gearbox can reduce the walking speed by adjusting the speed ratio, making the vehicle more stable when approaching fruit trees and performing delicate picking operations, thus protecting the quality of the fruit and the safety of workers.
-

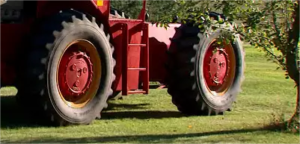

Enhanced traction
Good traction is essential on muddy, slippery or sloping orchard floors. Through the wheel drive system, especially the four-wheel drive configuration, power can be evenly distributed to each wheel, improving the vehicle’s grip and driving stability on complex terrain.
-
Energy Efficiency and Durability
Planetary gearboxes help reduce energy consumption and improve the overall energy efficiency of equipment due to their efficient power transmission characteristics. At the same time, due to its rugged design and material selection, it can work reliably for a long time in harsh agricultural operating environments.
-
Adaptability and flexibility
The wheel drive system can adjust the transmission performance according to different orchard conditions and operation needs, such as changing gears to adapt to different working conditions such as climbing, turning and flat driving on different terrains. This makes orchard picking vehicles have High job adaptability and flexibility.
Compatibility with Apple Harvesters
In order to provide accurate make and model compatibility information, it is often necessary to consult the specific wheel drive planetary gearbox manufacturer’s product manual or consult the manufacturer directly. However, I can give you some examples based on common apple harvester brands:
- Some Vioda apple harvester models
- John Deere orchard-specific harvesters
- New Holland may launch agricultural machinery for orchards
- Case IH Orchard Utility Vehicle
- CLAAS machines designed for fruit tree operations
- Kubota’s orchard management and harvesting equipment
- Professional orchard harvesting systems from Husqvarna or one of its brands
Please note that the brands listed above may actually have different harvester product lines, and not all models are necessarily suitable for specific wheel drive planetary gearboxes. Therefore, when selecting a wheel-driven planetary gearbox, be sure to confirm that it matches the specific model specifications of the target apple harvester. At the same time, in order to ensure the best compatibility, recommended to contact us for a detailed compatibility list and technical support.
Note: The brand names mentioned in the article are just for our convenience for customers to choose and replace the accessories of the corresponding agricultural machinery brand, and are not selling the products of that brand.

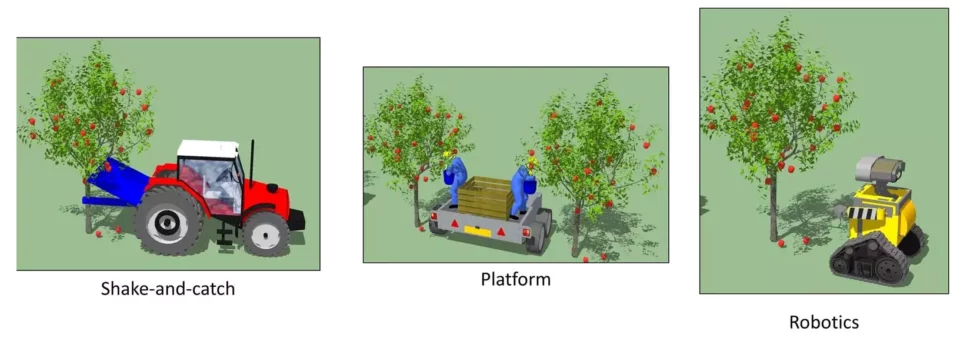

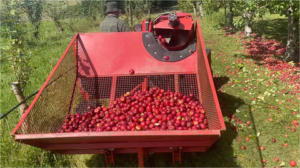

Wheel Drive for Different Types of Apple Pickers
Among our innovative solutions that are widely working in modern orchard management. Wheel drive technology is a key part of improving the performance of apple harvesters. Whether it is a multi-functional tractor-mounted lifting picking platform working in large commercial orchards, or a comprehensive harvester that integrates picking and preliminary sorting, our wheel-driven planetary gearboxes are known for their excellent load bearing capacity and wide compatibility. flexibility and design features that can be customized according to different work needs, providing a reliable and efficient driving solution for apple harvesting operations. Through the application of this core technology, we not only improve the overall efficiency of the apple harvesting process, but also further ensure the protection of fruit quality and respect for the orchard ecological environment.
