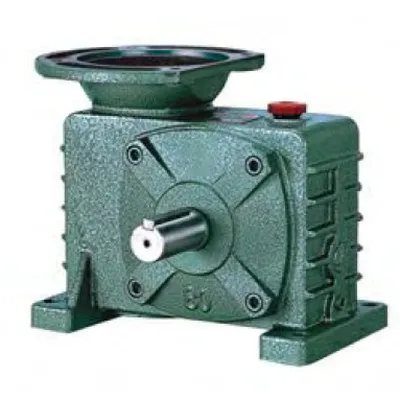

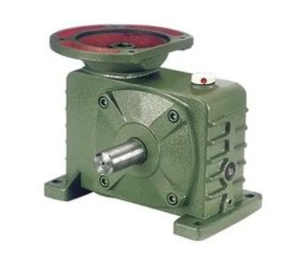

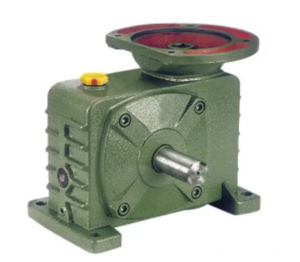

WPDZ Series Worm Gearboxes

WPDZ Series Worm Gearboxes
WPDZ series worm gearbox, also known as WP worm gear reducer. It is composed of one or more pairs of meshing gears, worm gears, worms, etc., and is installed in a rigid, sealed housing as an independent component of the machine. It is usually used as a transmission device for deceleration between the prime mover and the working engine. WPDZ series worm gearbox has smooth transmission, low vibration, impact, and noise, large reduction ratio, broad versatility, and can be used with various mechanical equipment. Single-stage messages can obtain a large transmission ratio and compact structure. Most models have better self-locking performance. For motorized equipment with braking requirements, the braking device can be omitted.

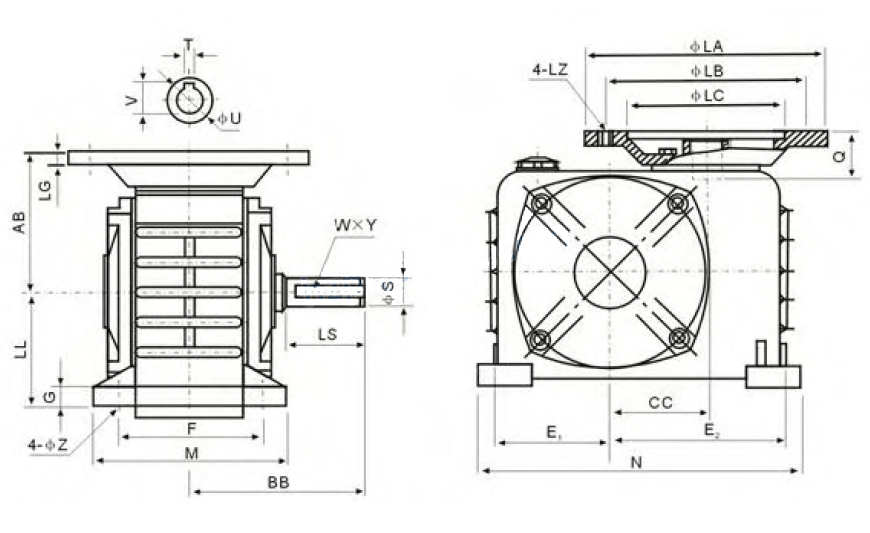

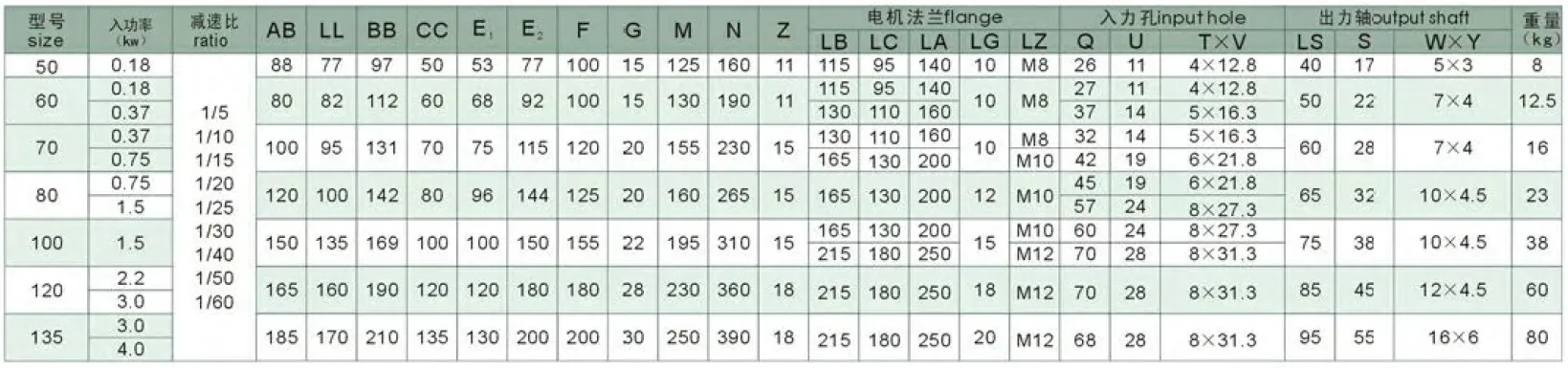

Product Specifications

The Advantages of WPDZ Series Worm Gearboxes

1. The transmission is stable, the vibration, impact, and noise are slight, the reduction ratio is large, and the versatility is wide. It can be used with various mechanical equipment.
2. Larger transmission ratio can be obtained by single-stage transmission, compact structure, most reducers have better self-locking, and braking devices can be saved for mechanical equipment with braking requirements.
3. The meshing friction loss between the worm thread and the worm gear tooth surface is significant, so the transmission efficiency is lower than that of the gear, and it is easy to generate heat and high temperature.
4. Higher requirements for lubrication and cooling.
5. Good compatibility, worm gears, and worms are manufactured according to national standards, and standard parts are used for bearings and oil seals.
6. The box type has primary type (box body is a vertical or horizontal structure with a foot plate) and universal style (box body is cuboid, with fixed screw holes on multiple sides, without a foot plate or with an additional bottom foot plate and other structural types).
7. There are two types of input shaft connection: primary type (single input shaft and double input shaft) and two types with motor flange.

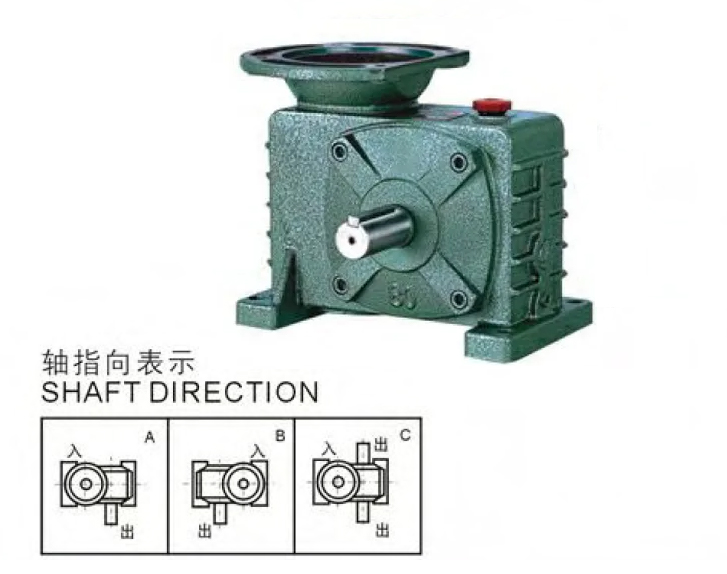

8. The position and direction of the output and input shafts are: the input shaft is down and up; the output shaft is up and down; the input shaft is up and down.
9. Two or three reducers can form a multi-stage reducer to obtain an excellent transmission ratio.

Packing and Transportation

• Packaging: To ensure the integrity of product appearance. We will choose cartons, wooden pallets, and wooden pallets according to customer needs.
• Delivery time: the quality is correct before leaving the factory and delivery on time.
• Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
• Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
