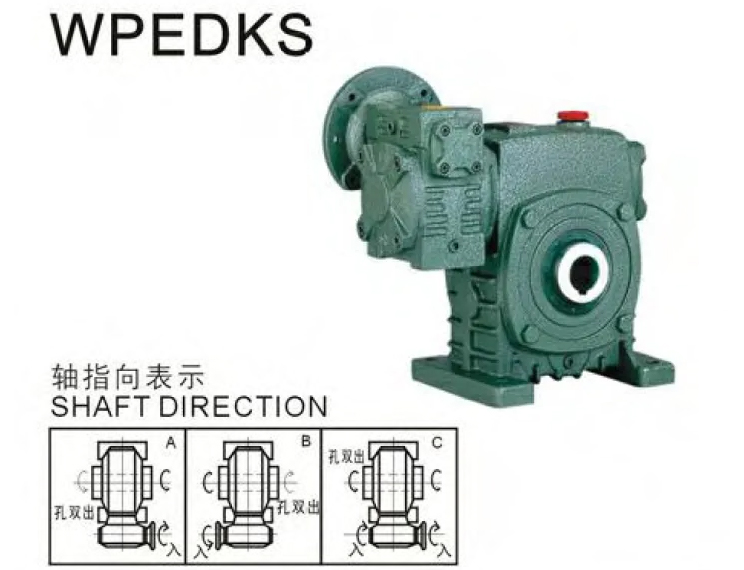

WPEDKS Series Double Stage Vertical Worm Gearboxes
The material combination of the worm and worm gear of the worm gear reducer must have both wear resistance and good running-in performance. Worm material is generally made of alloy steel or high-quality carbon steel. The worm tooth surface is subjected to carburization, quenching or nitriding, and other heat treatments to obtain higher hardness. Its hardness is generally between 35-55HRC, but there are also more than 60HRC. The material used to make the worm gear ring is tin bronze, which is the most ideal. In processing technology, the mechanical properties of centrifugal casting are the best, followed by casting with metal molds and sand molds.
WPEDKS Series Double Stage Worm Gearboxes
The material combination of the worm and worm gear(Double Stage Gearboxes) of the worm gear reducer must have both wear resistance and good running-in performance. Worm material is generally made of alloy steel or high-quality carbon steel. The worm tooth surface is subjected to carburization, quenching or nitriding, and other heat treatments to obtain higher hardness. Its hardness is generally between 35-55HRC, but there are also more than 60HRC. The material used to make the worm gear ring is tin bronze, which is the most ideal. In processing technology, the mechanical properties of centrifugal casting are the best, followed by casting with metal molds and sand molds.
 |
 |
WPEDKS Vertical Worm Gearboxes
| Type | Vertical worm gearbox(Double Stage Gearboxes) |
| Model | WPEDKS |
| Ratio | 1:200, 300, 400, 500, 600, 800, 900 |
| Color | Blue/Gold Or On Customer Request |
| Material | Housing: Die-Cast Iron cast |
| Worm Gear-Copper-10-3# | |
| Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC. | |
| Shaft-chromium steel-45# | |
| Packing | Carton and Wooden Case |
| Warranty | 1 Year |
| Usages | Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing, Woodworking, Glass. |
| IEC Flange | 56B14, 63B14, 63B5, 63B5, 71B14, 80B14 AND SO ON |
| Lubricant | Synthetic&Mineral |

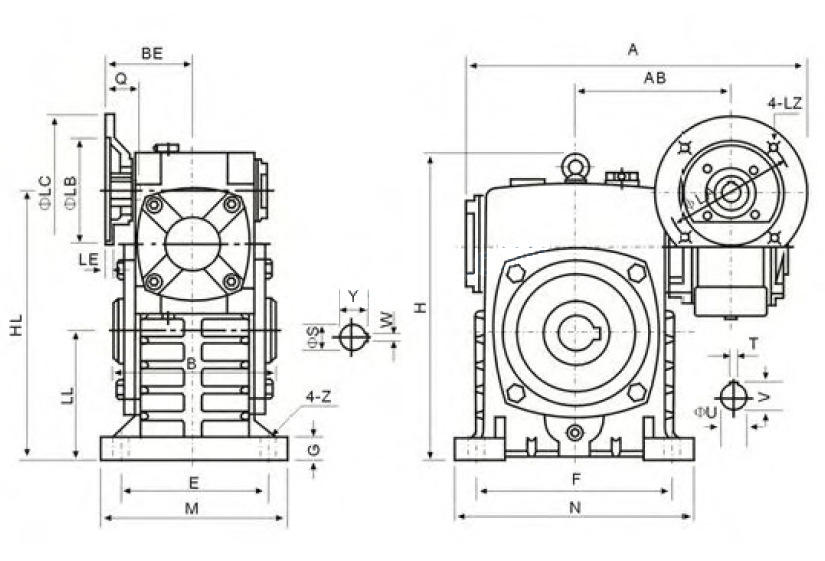

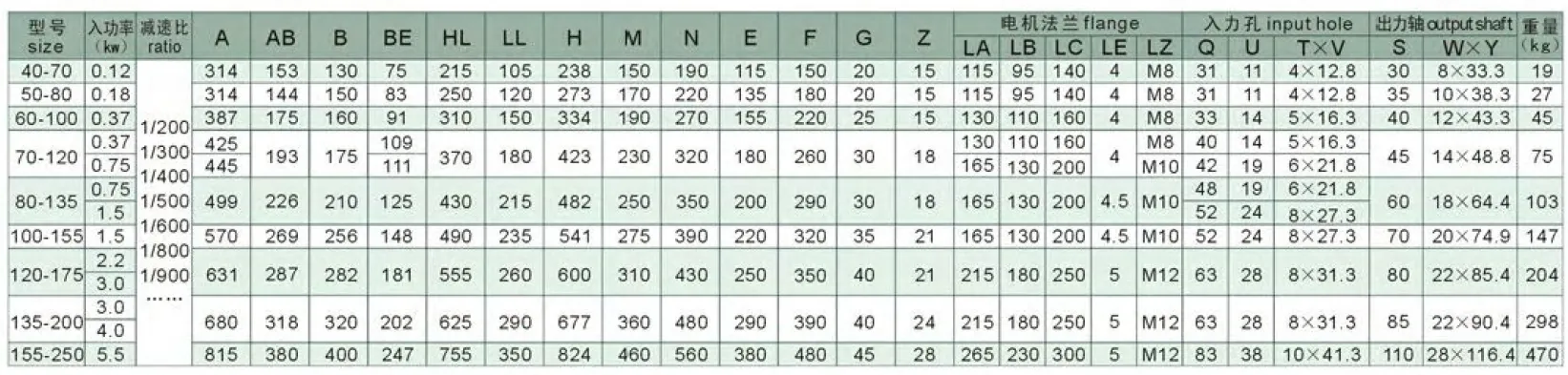

Specifications Parameter
The Advantages of the Worm Gearboxes Mainly Include the Following:
1. Compact mechanical structure, light volume, small size, and high efficiency.
2. Good heat exchange performance and fast heat dissipation.
3. Simple installation, flexible and light, superior performance, easy maintenance, and repair.
4. Large transmission speed ratio, large torque, and high ability to withstand overload.
5. Stable operation, low noise, and durability.
6. Strong applicability and great safety and reliability.
 |
 |
Selection Steps Of Worm Gearboxes
1. Determine the speed ratio of the worm gear reducer, speed ratio = input speed/ output speed.
2. Calculate the output torque of the worm gear reducer.
3. Correct the output torque of the worm gear reducer.
4. Calculate the power of the worm gear reducer.
5. Determine the model specifications of the worm gear reducer.
