WPEDX Series Double Stage Worm Gearboxes
The double-stage worm gearboxes are one of the models in the WP series of worm gear reducers. WP series worm gearboxes consists of a worm and a worm gear. AND it has a compact structure, a large transmission ratio, and a transmission mechanism with a self-locking function under certain conditions.WP series gearboxes is one of the most commonly used reducers. The working environment temperature is -40℃-+40℃. When the working environment temperature is lower than 0℃, the lubricating oil must be heated to above 0℃ before starting. Cooling measures must be taken when the working environment temperature exceeds 40℃.

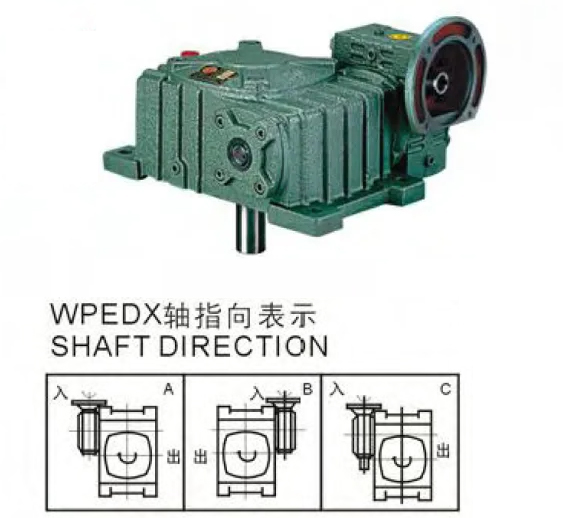

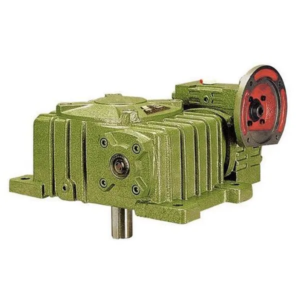

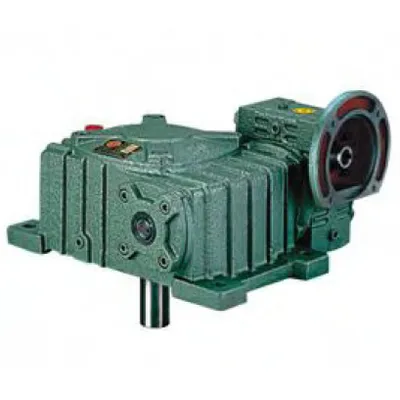

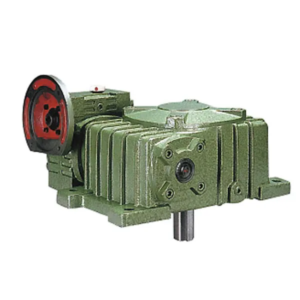

WPEDX Vertical Worm Gearbox
Model NO. | WP series |
Manufacturing Method | Cast Gear |
Toothed Portion Shape | Spur Gear |
Type | Worm and Worm wheel |
Gearing Arrangement | Worm |
Output Torque | 19-2745n.M |
Rated Power | 0.06-15kw |
Input Speed | 1400 |
Output Speed | 0.3-186rpm |
Model Number | WPEDX |
Brand Name | Hangzhou powertrans,chinabase,etc,OEM acceptable |
Color | Green, Blue, or According to Custom request |
Extra Service | OEM Welcome |
Specification | ISO9001 |
Origin | Zhejiang, China |

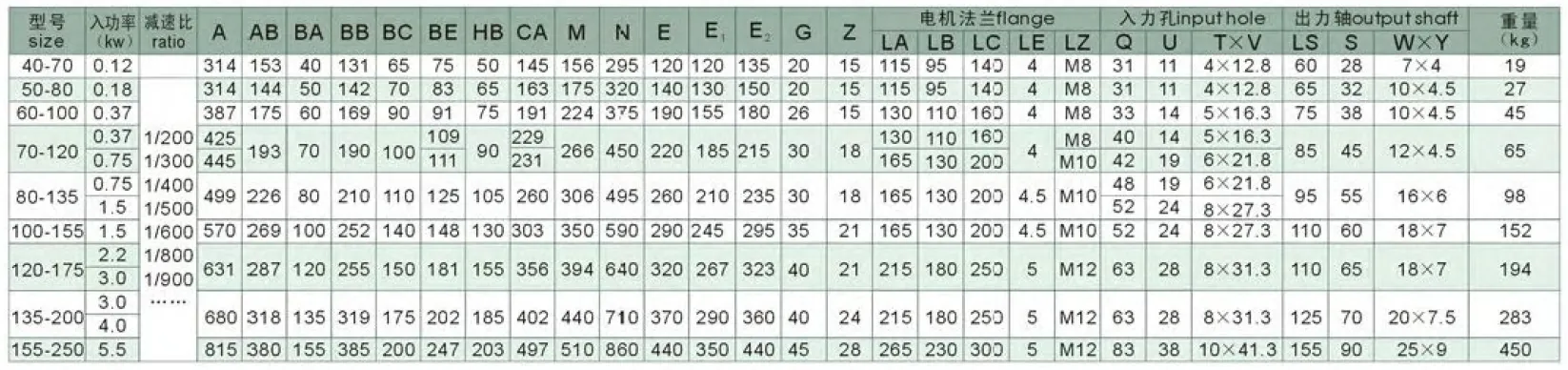

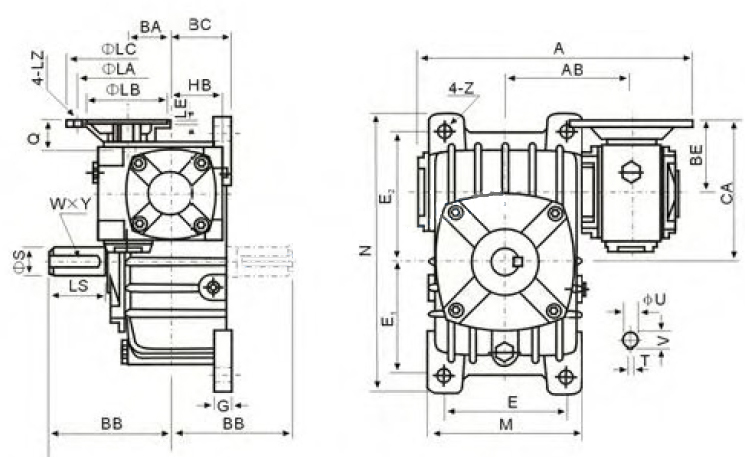

Product Specifications
Worm Gearboxes Structure Feature
- Worm shaft reducer widely used in light industry, good resistance to wearing, high precision in dimensions, lower noise, advanced central running castings.
- The Iron cast is a strong, complex, compact structure.
- Stable transmission, low vibration, and many ratios can be matched with various machines.
Notice of Installation
- The base plate must be plain and stout, and the base plate must be screwed down and shockproof.
- The connecting shaft of the prime mover, gearbox, and operation device must be coaxial installations.
- Drivers such as sprocket wheels and gear must be fitted close to bearings to reduce the hanging shaft’s bending stress.
Notice of Usage
1. Check carefully whether the gearbox model, distance, ratio, input connecting mode, output shaft structure, information and output shaft direction, and revolving direction accord with requirements.
2. According to the requirements for selecting lubricant oil in the product manual, please fill appropriate categories and brand lubricant. And then, screw on the vent plug; Unlock the small cone plug of the vent plug. Only after doing this reducer is it already for starting up working. An excellent brand and adequate lubricant oil are required; changing the oil in time and conforming to the request of the product manual is also necessary, especially after using the first 100 hours, it is needed to refill new oil.
3. When abnormal circumstances occur, stop and check the reducer per solutions and reasons for faults of reducer (allowable highest oil temperature is 95, under this temperature limit, if the oil temperature is no more going up, please let the reducer continue working).
Packing and Transportation
- Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
- Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
- Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
- Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
Company Profile
As a professional manufacturer of worm gearboxes and worm gear reducers in China, we mainly produce reduction gearboxes, aluminum case worm gearboxes, arc gear cylindrical worm gearboxes, worm gear reducers, in-line helical gearboxes, and cyclo drive reducers, etc. These products feature rational structure, stable performance, reliable quality, etc. They are widely used in power, mining, metallurgy, building material, chemical, food, printing, ceramic, paper-making, tobacco, and other industries.
Hangzhou powertrans Co.,Ltd has 600 workers in our factory, which covers 70,000 square meters in Hangzhou. We have been making 2,500 units of reducers every day since 2012. We are proudly exporting 70% of our products to more than 40 countries all over the world. Our customers come from Italy, Germany, the USA, Canada, Spain, the UK, Mexico, Brazil, Argentina, Turkey, Singapore, and other leading industrial countries worldwide. 30% of them are OEM-made for direct manufacturers of other products.
We warmly welcome customers from other parts of the world to visit us. Seeing is believing. Hangzhou powertrans company are confident that you will have confidence in our products after visiting our facility. We have the latest automatic equipment and experienced workers to ensure stable quality and large output. We have the most sophisticated technology and engineering team to support the most demanding requirements on standard and OEM products.
FAQ
Q1: Are you a trading company or manufacturer?
A: We are a factory.
Q2: How long is your delivery time and shipment?
1. Sample Lead-times: generally ten workdays.
2. Production Lead-times: 20-40 workdays after getting your deposit.
Q3. What are your terms of payment?
A: T/T 30% as deposit and 70% before delivery.
Q4: What are your advantages?
1. Manufacturer, the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. What do you do next if you can’t find the product on our website?
Please send us an inquiry with product pictures and drawings by email or other ways, and we’ll check.
