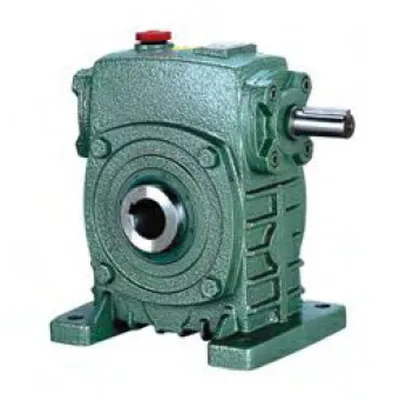

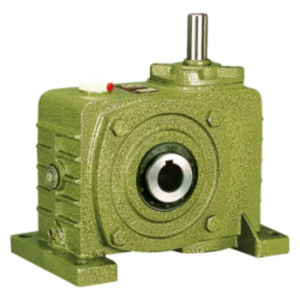

WPKS Series Worm Gearboxes

WPKS Series Worm Gearboxes

The basic structure of WPKS Series Worm Gearboxes is mainly composed of transmission parts, worm gear, shaft, bearing, box, and accessories. It can be divided into three essential structural parts: box, worm gear, and worm, approach, and shaft combination. The box is the base of all accessories in the worm gear reducer. It is an essential accessory to support and fix the shafting components, ensure the correct relative position of the transmission accessories and keep the load acting on the reducer. The worm gear is mainly used to transmit the motion and power between the two staggered shafts, and the bearing and shaft are mainly used to send energy, operate, and improve efficiency.

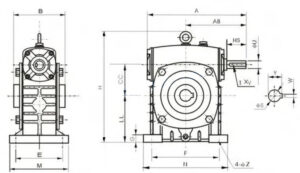

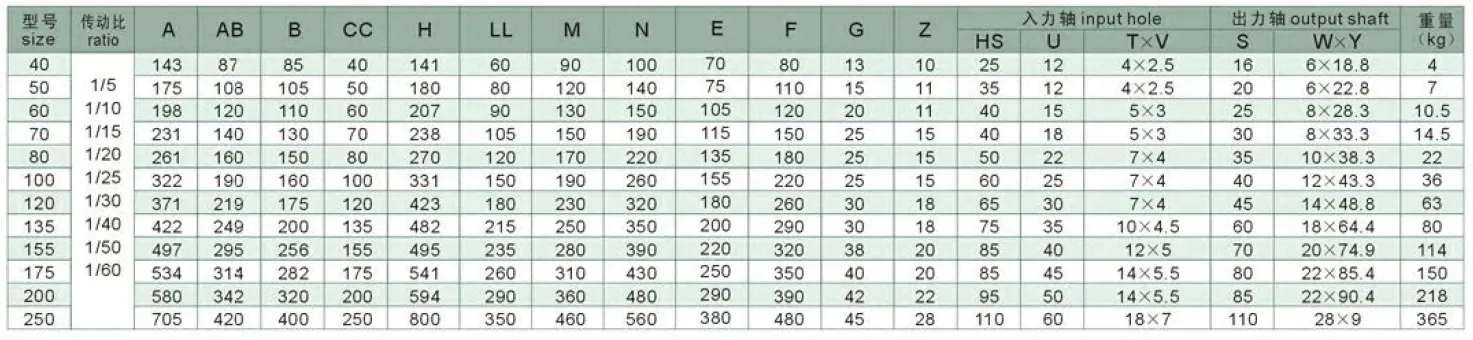

Specifications Parameter

Features of WPKS Series Worm Gearboxes

1. Small machine shape, lightweight, without shaft coupling, chain, sprockets, and other transmission parts.
2. The space is small; the input shaft is mounted directly to the machine side, which can effectively save space.
3. Low cost. Due to the direct installation, without transmission parts, assembly time can be reduced, and in general, reduce the cost.
4. Easy installation, stable operation, long service life, and high carrying capacity. Because of direct docking and motor installation, it can completely prevent contact with transmission parts and does not need a safety cover which can ensure safety.

Working Conditions of Cast Iron Worm Gearbox

1. The worm speed of the worm gear reducer shall not exceed 1500r/min.
2. The working environment temperature is – 40 ℃ -+40 ℃. When the working environment temperature is lower than 0 ℃, the lubricating oil is heated to above 0 ℃ before starting. Take the cooling measures when the working environment temperature exceeds 40 ℃.
3. The inlet shaft of the worm gear reducer can rotate forward and backward.

Precautions:
1. Worm gear shaft cannot be used as an input shaft.
2. The machine is not refueled when leaving the factory. It can only be operated after adding enough machine oil.
3. The matching motor (i.e., power) shall not exceed the value specified on the nameplate.

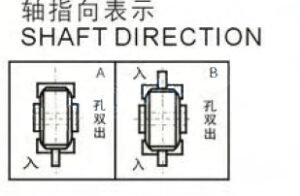

4. If the user wants to change the direction of the shaft, he can remove the two end covers of the lower shaft, take out the worm shaft and adjust it by 180. Load it. Drive the second shaft slowly to make it mesh.

Application of WPKS Series Worm Gearboxes

It is mainly suitable for the deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction, etc.

Packing and Transportation

• Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
• Delivery time: Produce and test the reducer with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
• Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
• Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

Company Profile

We’re one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; Shipping the products to Europe, America, and Southeast Asia.
Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry.

FAQ

Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer in China. Our company owns the ability to manufacture, process, design, and R&D. We welcome your visit.
Q2: How do we select models and specifications?
A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…
Q3: How is your price? Can you offer any discount?
A: Our prices are always competitive. If the customer can place a large order, we indeed will allow a discount.
Q4: How long should I wait for the feedback after I send the inquiry?
A4: We will reply as soon as possible, 12 hours at most.
Q5: What is your product warranty period?
A: We have the certifications of ISO9001, CE, and SGS.
Q6: What industries are your gearboxes working in?
A: Our gearboxes are widely working in metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.
