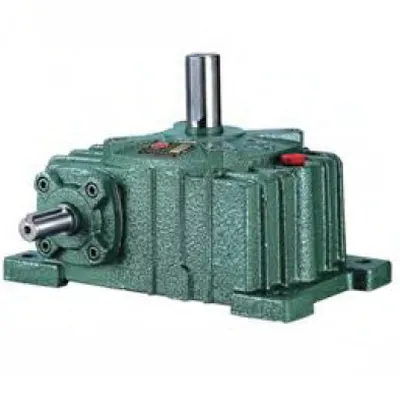

WPO Series Worm Gearboxes

WPO Series Worm Gearboxes

WPO series worm gearbox is developed based on the WD reducer, the worm 45 # high-quality steel heat treatment processing. It has good wear resistance, especially in bearing capacity. It is mainly suitable for decelerating the transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction, etc.
– Output Shaft
Medium carbon steel S45C, precision process, and grinding with CNC lathe.
– Worm Wheel
Aluminum brass ALBC3 and FC20, shaping cutter and computer auxiliary design low friction coefficient, durability in use,
– Output Shaft Cover
Cast iron FC20 or cast aluminum AL
– Outer Shell
Cast iron FC20, one-line body, high intensity, elegant appearance, remarkable radiating effect.
– Worm Shaft
Medium carbon steel S45C or SCM21, cut by precision tooth-rolling machine, after being heated, grind the tooth so that the tooth is correct and smooth, high efficiency in operation, and without noise.
– Worm Gearbox Input Shaft Cover
Case iron FC20 or cast aluminum AL

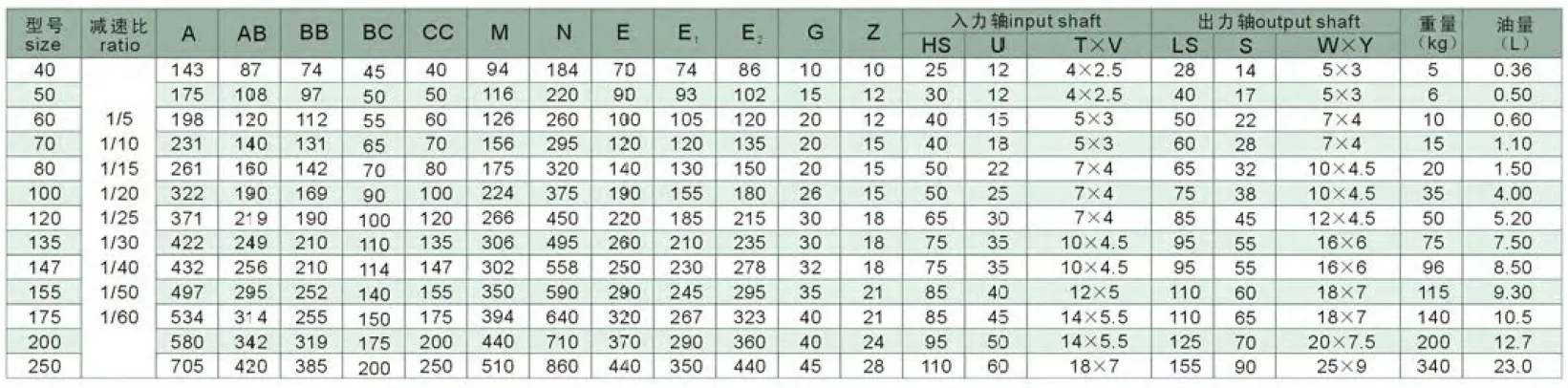

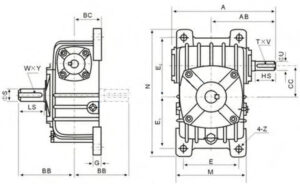

Specifications Parameter

Features of WPO Series Worm Gearbox

1. Stable transmission, low vibration, impact, and noise, large reduction ratio, wide versatility, and suitable for use with various mechanical equipment.
2. Large transmission ratio can be obtained by single-stage transmission with a compact structure. Most reducers have suitable self-locking properties and can save the brake device for mechanical equipment requiring brakes.
3. The meshing friction loss between worm screw teeth and worm gear surface is relatively large, so the transmission efficiency is lower than that of the gear, it is easy to be heated, and the temperature is higher.
4. Higher requirements for lubrication and cooling.
5. Good interfitting. National standards manufacture the worm and worm.

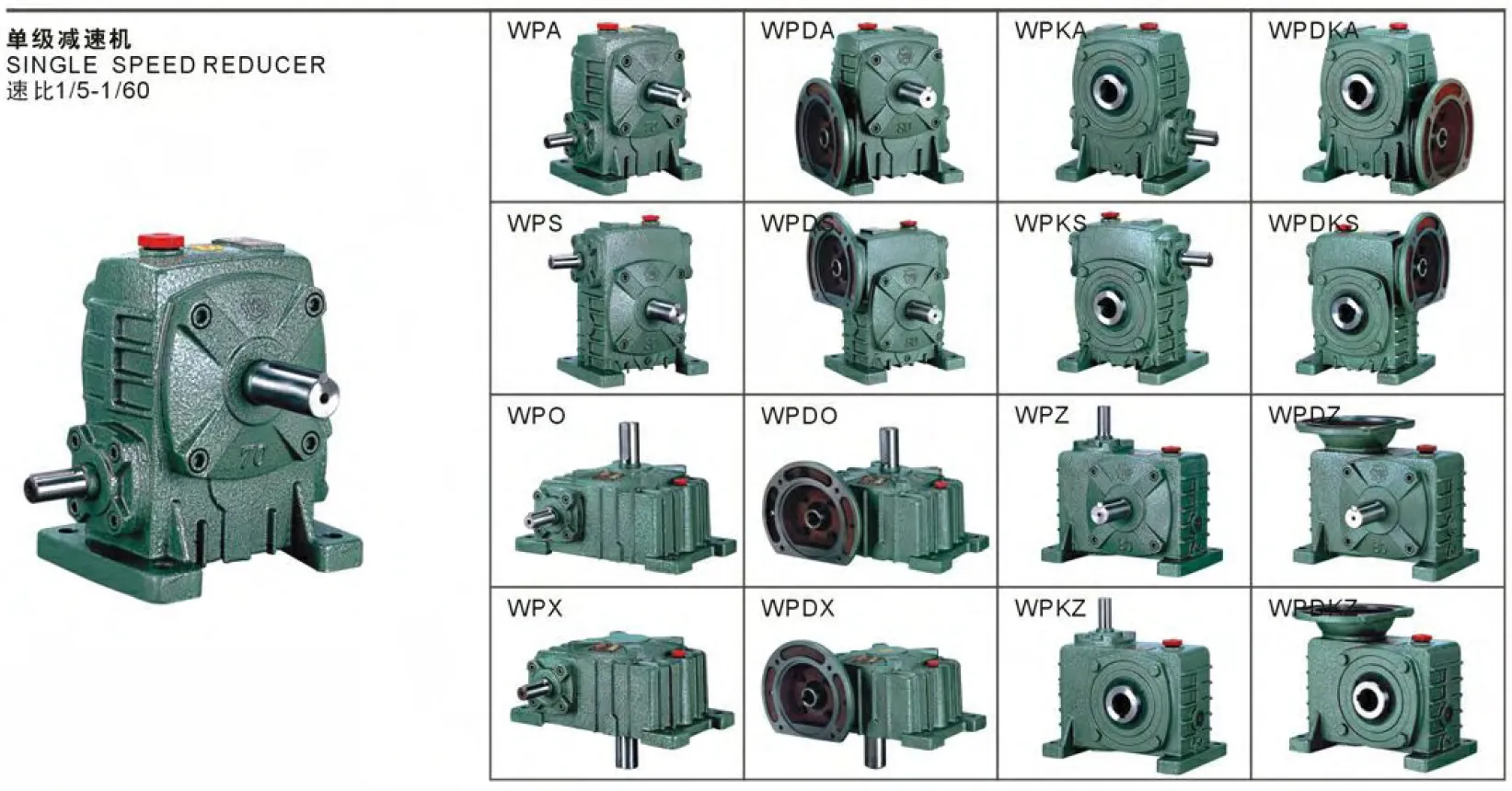

We also Provide Other Series of Single Speed Gearbox

WPO Series Worm Gearboxes Precautions for Use

(1) Before use, attention should be paid to whether the reducer type structure, center distance specifications, transmission ratio, input shaft connection mode, output shaft structure, input shaft output shaft pointing, and rotation direction meets the requirements.
(2) Fill in the suitable type and grade of a lubricating oil according to the requirements specified in “Selection of Lubricating Oil Use” on the sample. After refueling, tighten the aerator of the item part and pull out the small cone plug on the aerator before the reducer can start to operate. Must choose the appropriate brand of embellishment
(3) Oil must control the appropriate amount of refueling according to the requirements of a timely oil change, especially paying attention to the first use of 100 hours after replacing new oil.
(4) If any abnormal situation occurs during the use, it should be stopped for inspection in time and can be handled by referring to the table of “Fault Causes and Solutions.” (The maximum oil temperature of the reducer is allowed to reach 95℃. Under this temperature limit, as long as the oil temperature does not rise, it is safely).

Packing and Transportation

• Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
• Delivery time: Manufactur and test each reducer with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
• Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
• Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
