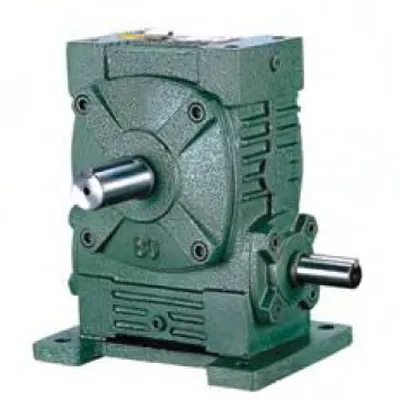

WPWA Series Universal Speed Worm Gearboxes
A worm gear reducer(WPWA Worm Gearboxes) is a traditional transmission device, the inside is a turbine worm, and the tooth shape is involute. WPWA series worm gearboxes are made of 45 # steel through heat treatment processing. And the worm gear is cast with tin bronze. It has good wear resistance, especially outstanding in bearing capacity. It mainly applies to the reduction drive of various mechanical equipment such as plastic, metallurgy, beverage, mining, hoisting and transportation, and chemical construction.

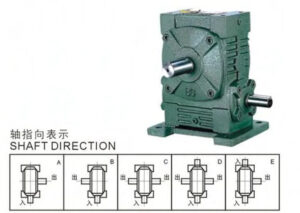

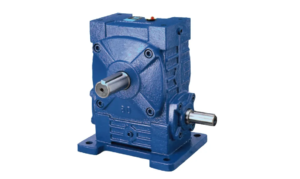

WPWA Worm Reduction Gearbox
Applicable Industries | Manufacturing Plant, Construction works, Energy & Mining |
Gearing Arrangement | Worm |
Output Torque | 19~2371 |
Input Speed | 1400RPM |
Output Speed | 24~140 |
Place of Origin | Zhejiang, China |
Brand Name | Power-trans |
Color | Green, blue, yellow, red |
Product name | Electric Motor Speed Reducer |
Type | Worm reduction gearbox |
Model | WPWA |
Ratio | 1:5,10,15,20,25,30,40,50,60 |
Color | Blue/Red Or On Customer Request |
Material | Housing: Die-Cast Iron cast |
Worm Gear-Copper-10-3# | |
Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC | |
Shaft-chromium steel-45# | |
Packing | Carton and Wooden Case |
Warranty | 1 Year |
Usages | Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing, Woodworking, Glass. |
IEC Flange | 56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON |
Lubricant | Synthetic&Mineral |

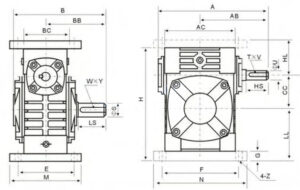

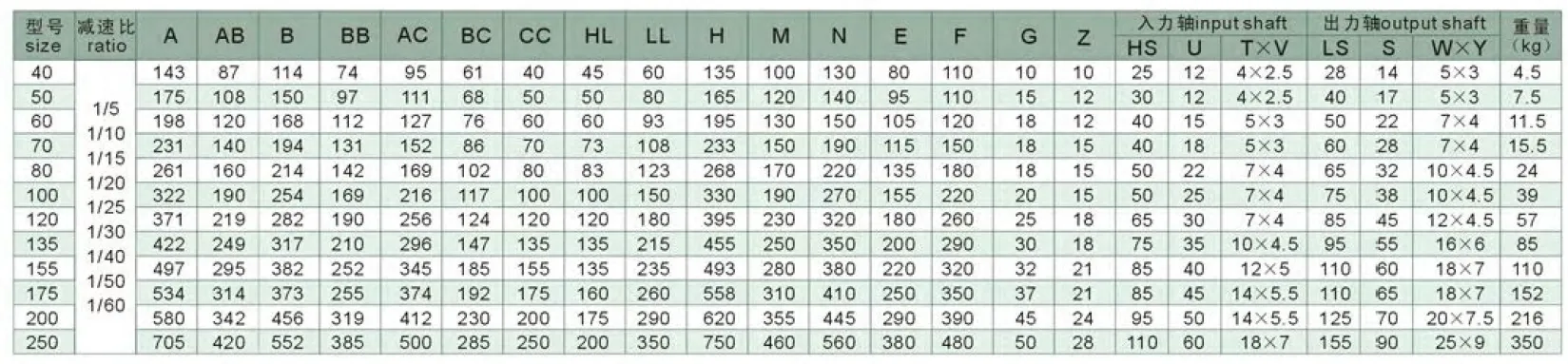

Specifications Parameter:
What Are the Advantages and Disadvantages of Worm Gearboxes?
The advantages of worm gear reducer: worm gear reducer is a traditional transmission device, the inside is a turbine worm, and the tooth shape is involute.
Worm gear reducer has the following advantages:
1. Compact mechanical structure, light volume, small size, and high efficiency;
2. Good heat exchange function and fast heat dissipation;
3. The device is simple, sensitive and light, superior in function, easy to maintain and overhaul;
4. High transmission speed ratio, high torque, and high capacity when receiving overload;
5. Stable operation, low noise, and durable;
6. Strong applicability, excellent safety, and reliability;
7. The service life is long, the scale of the input rotation speed is shallow, and the scale of deceleration is large;
8. Self-locking function is suitable for improving operations.
The disadvantage is that the work efficiency is too low and can only reach between 60 and 70 percent. It is difficult to control the air return, especially when the turbine and the worm run-in time is relatively long and the air return is rather large. And the turbine worm is generally output by the shaft.
Packing and Transportation
- Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
- Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
- Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
- Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
Company Profile

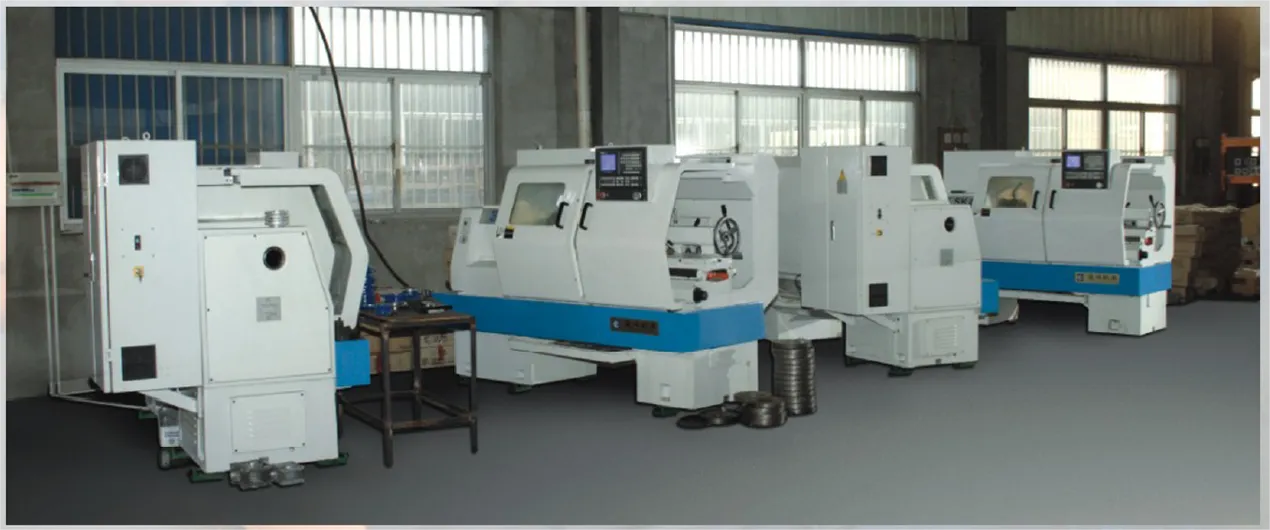

Power-trans Machinery Co., Ltd. is one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; the products are shipped to Europe, America, and Southeast Asia.
Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry.
FAQ
1 Q: What’s your MOQ for reducer?
A: 1unit is ok for sample testing
2 Q: What about your warranty for your reducer?
A: One year.
3 Q: Do you provide OEM service with the customer logo?
A: Yes, we could do OEM orders, but we mainly focus on our brand.
4 Q: How about your payment terms?
A: TT, western union. 100% payment in advance for orders less than $5,000. 30% deposit and balance before delivery for orders over $5,000.
5 Q: How about your packing?
A: Carton, Plywood case. If you need more, we can pack all goods in pallets.
6 Q: What information should be given if I buy a gearbox from you?
A: Rated power, gearbox ratio, input speed, and mounting position. More details, better!
7 Q: How do you deliver the reducer?
A: We will compare and choose the most suitable ways of delivery by sea, air, or express courier.
We hope you will enjoy cooperating with us.
