WPWDKA Series Universal Speed Worm Gearboxes

WPWDKA Series Universal Speed Worm Gearboxes

WPWDKA series reducer(WPWDKA Series Universal Speed Worm Gearboxes), modular design, shell made of HT200 cast iron. With high strength, beautiful appearance, good heat dissipation effect, long service life, low noise, and so on. Easy connection with other power sources, simple installation advantages. WPWDKA series reducer is practical transmission equipment, and the type classification and body volume are more in line with the equipment configuration requirements.
Two combined into a double stage to achieve a more excellent transmission ratio and output torque. WPWDKA series reducer can be combined with an ordinary motor, frequency conversion motor, brake motor, continuously variable speed machine, etc. It can also be connected with various equipment by coupling into different transmission devices, and product serialization and the modular structure can be suitable for a full range of applications.

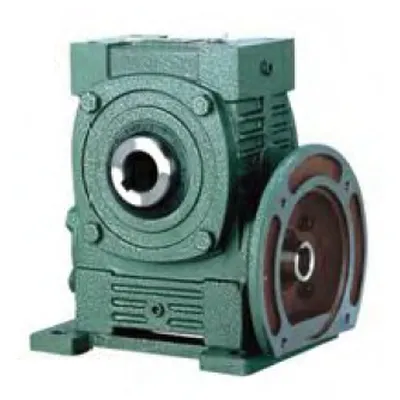

WPWDKA Standard Worm Gear Speed Reducer

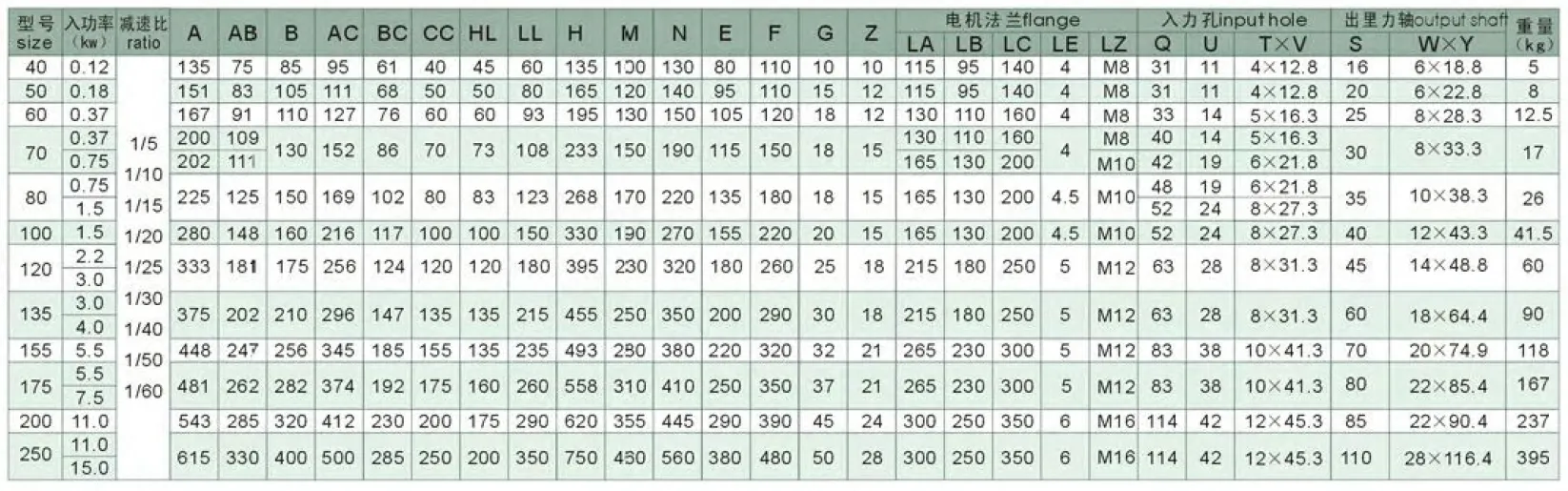

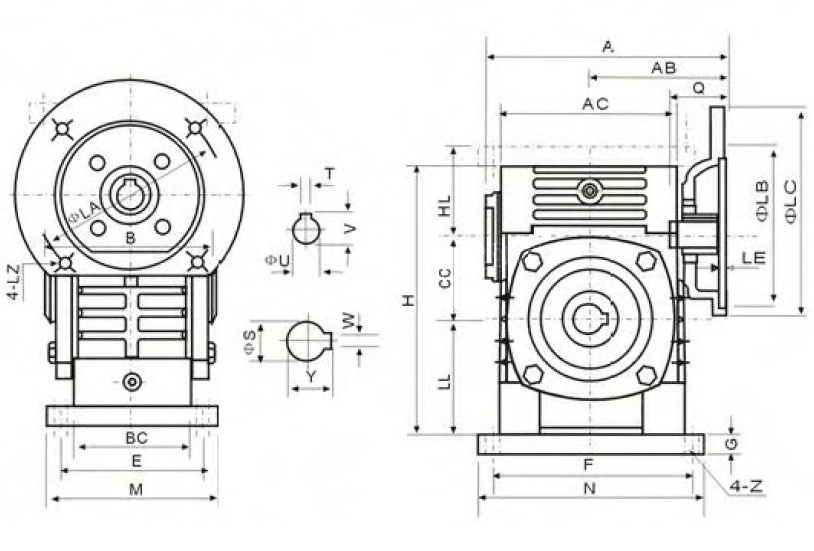

WPWDKA Series Universal Speed Worm Gearboxes Specifications

Features of WPWDKA Universal Speed Worm Gearboxes:

1. High quality, It adopts hard tooth gear with high accuracy
2. Large output torque, stable transmission with lower noise
3. High heat-radiating efficiency, elegant shape, durable service life
4. Suitable for Omni-bearing installation
5. Low noise and smooth running
6. Worm drive uses hollow flank worm
7. High loading capacity, low-temperature rise, and the long useful life
8. Few differences between transmission ratio rate, I = 6~13800
9. Compact structure, small size, convenient maintenance

The Reason for the Large Vibration of the Turbine Worm Reducer?

The main components of the turbine worm reducer are worm gear, worm, bearing, casing, etc., and others include oil seals, oil caps, bolts, etc. Turbine and worm reducers are widely used in the chemical industry, printing, packaging, lifting, food, and other fields. However, various failures will inevitably occur during use, and abnormal vibrations during operation are related to these components. According to experience analysis, the reasons for the strange vibration of the worm gear reducer are as follows:

1. Installation quality problems, poor fixation;
2. The turbine and worm are worn or damaged;
3. The bearing is damaged or poorly lubricated;
4. There are foreign objects, such as particulate metal, inside.

Standard maintenance methods such as re-fixing the turbine and worm reducer, replacing the turbine, worm, bearing, and lubricating oil are generally adopted to deal with the failure. These failures are usually caused by non-standard installation, use, or maintenance.

Packing and Transportation

1. Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
2. Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
3. Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
4. Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

Our Services:

1. We are ready to provide you with technical advice and support.
2. We will promptly answer your questions before product acceptance and provide technical support.
3. Our technical services group will provide technical support for product repair and maintenance.
4. Our commitment is to create even more value for you and keep close contact with our customers.

FAQ

Q1. What information should I tell you to confirm the worm gearbox?
A: Model/size
B: Ratio and output torque
C: Power and flange type

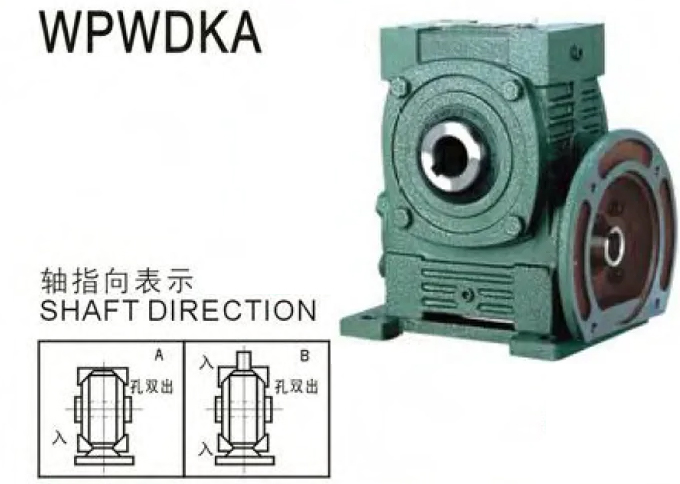

D: Shaft direction
E: Housing color
F: Order quantity
Q2. What type of payment methods do you accept?
A: T / T
B: B / L
C: CASH
Q3. What’s your warranty?
One year.
Q4. How to deliver?
A: By sea- Buyer appoints forwarder, or our sales team finds a suitable forwarder for buyers.
B: By air- Buyer offers to collect express account, or our sales team finds suitable express for buyers. (Mostly for sample)
C: Other- We arrange to deliver goods to some place in China appointed by buyers.
Q5. Can you make OEM/ODM order?
Yes, we have rich experience on OEM/ODM orders and like signing Non-disclosure Agreements before sample making.
