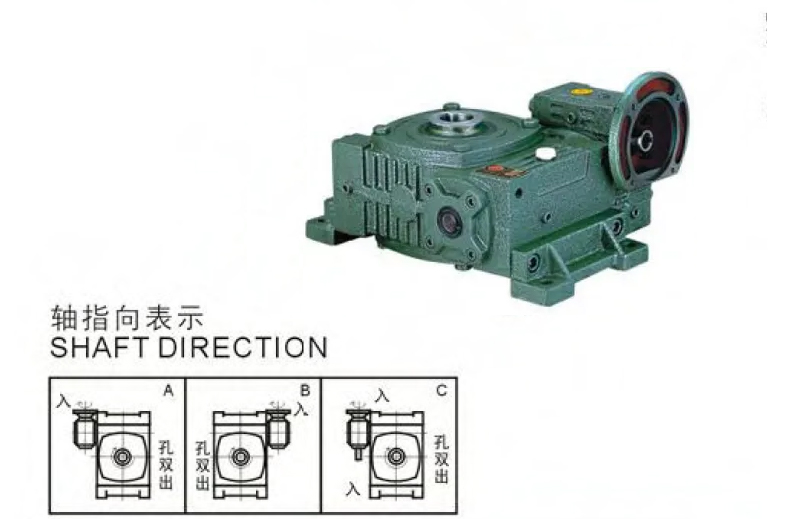

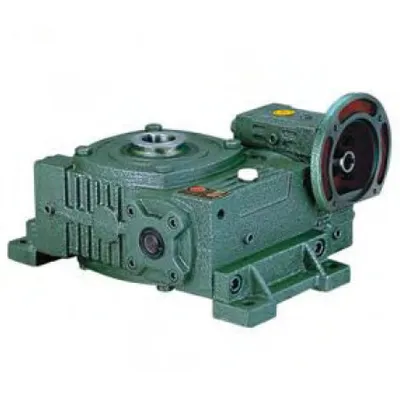

WPWEDKO Series Double Stage Worm Gearboxes
Worm gearboxes generally use 220# gear oil. For heavy-duty, frequent starting, and poor operating environments, some smooth oil additives can be used to ensure that the gear oil is still attached to the surface of the gear when the reducer is suspended. Membrane to avoid direct contact between metals under heavy load, low speed, high torque, and start. The booster contains a seal ring regulator and a leak-proof agent to make the seal ring soft and elastic, reducing smooth oil leakage. Selection of gear unit orientation. When the orientation permits, try not to use a vertical device. When the vertical machine is installed, the increase of smooth oil is much more than that of the horizontal machine, and it is easy to cause heat generation and oil leakage of the reducer.
WPWEDKO Series Double Stage Worm Gearboxes
Worm gearboxes(WPWEDKO Series Double Stage Worm Gearboxes) generally use 220# gear oil. For heavy-duty, frequent starting, and poor operating environments, some smooth oil additives can be used to ensure that the gear oil is still attached to the surface of the gear when the reducer is suspended. Membrane to avoid direct contact between metals under heavy load, low speed, high torque, and start. The booster contains a seal ring regulator and a leak-proof agent to make the seal ring soft and elastic, reducing smooth oil leakage. Selection of gear unit orientation. When the orientation permits, try not to use a vertical device. When the vertical machine is installed, the increase of smooth oil is much more than that of the horizontal machine, and it is easy to cause heat generation and oil leakage of the reducer.
 |
 |
WPWEDKO Series Double Stage Worm Gearboxes Details
| Type | worm gearbox |
| Model | WPWEDKO |
| Ratio | 1:200,300,400,500,600,800,900 |
| Color | Blue/Green Or On Customer Request |
| Material | |
| Housing | Die-Cast Iron cast Worm Gear-Copper-10-3# Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC Shaft-chromium steel-45# |
| Packing | Carton and Wooden Case |
| Warranty | 1 Year |
| Usages | |
| Industrial Machine | Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, Woodworking, Glass. |
| IEC Flange | 56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON |
| Lubricant | Synthetic&Mineral |

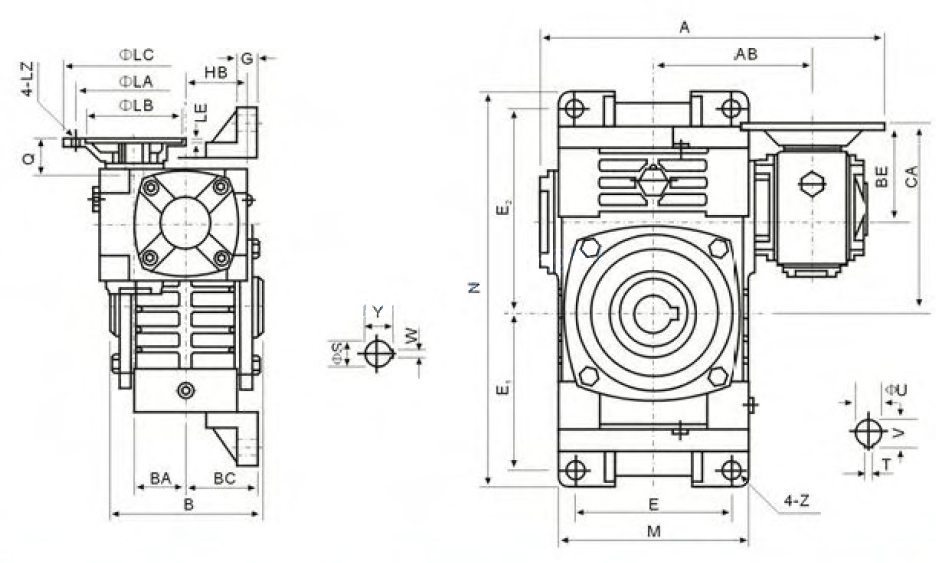

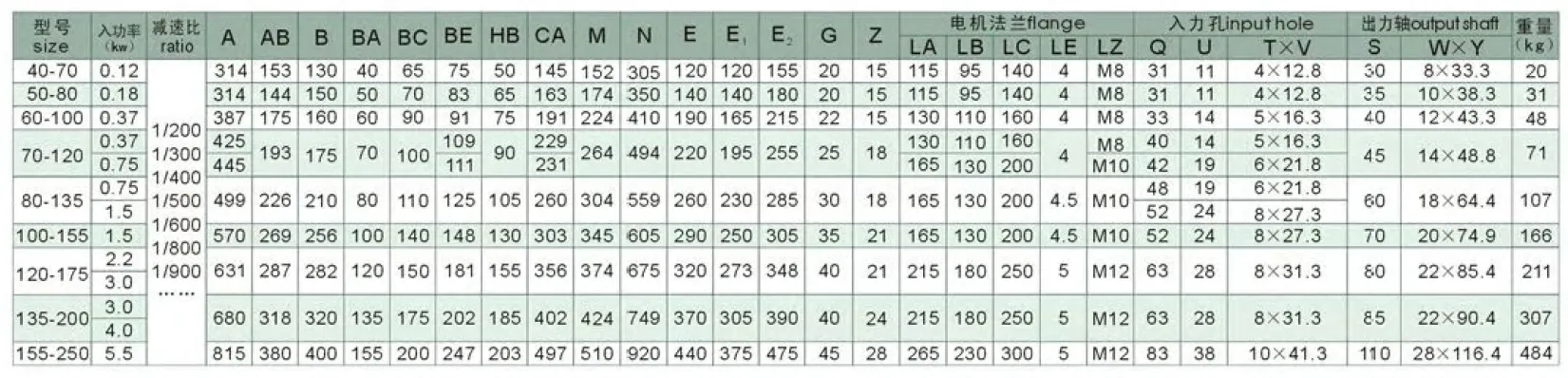

Product Specifications:
Choice of Lubricant
Before operating the worm gear speed reducer, add N220 ~ N320（Ambient temperature-30°℃~40°℃）, N320~N460（Ambient temperature 40°C~65C）lubrication oil up to the center line of the oil gauge. In the meanwhile, remove the small screw of the air vent. After having worked for 100 hours for the first time, you must clear the inside and change the lubrication oil in it, hre after once every 2500 hours.
How to Adjust the Axial Gap of the Worm Gearbox’s Accuracy is Too Large?
Worm gear reducer is one of the more commonly used reducers. Worm gear reducer has beautiful appearance, simple installation and large torque, which is loved by more and more customers. However, some customers have questions, is there any gap in the worm gear reducer? What is the accuracy of the worm gear reducer? Most of the reducers have some gaps, which can’t be completely absent, but some high-precision gaps can be negligent.
There are two ways to adjust the gap of the worm gear reducer. One is to adjust the gap of the guide column after screwing the worm gear reducer without installing the structure; the other is to install the upper structure after screwing the guide column into the worm gear reducer. Their gaps. Both installation methods are available, but practice has proved that the method of adjusting the gap after installing the structure has less error. Therefore, we prefer the latter installation method.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
