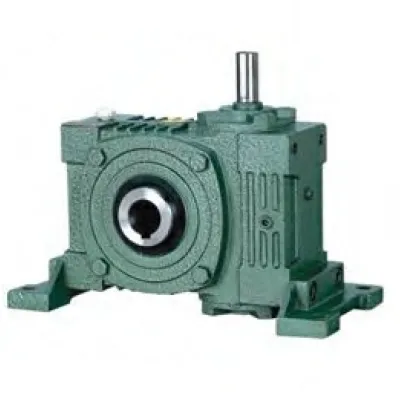

WPWKT Series Universal Speed Worm Gearboxes

WPWKT Series Universal Speed Worm Gearboxes

The self-locking function of the worm gear drive(WPWKT Series Universal Speed Worm Gearboxes) is handy in mechanical applications, such as hoists, conveying equipment, etc. In the transmission mode of the worm gearboxes, the worm gear transmission has the characteristics that other gear transmissions do not have; that is, the worm can easily rotate the worm gear, but the worm gear cannot rotate the worm. This is because the structure and transmission of worm gears are achieved through friction. However, because of the worm gear’s friction transmission mode, the worm gear’s transmission efficiency is much lower than the gear transmission.
Not all worm gear reducers have a good self-locking function, and the self-locking part of the worm gear can only be realized if it reaches a certain speed ratio. This is related to the lead angle; that is, the self-locking function of the worm gear with a small speed ratio is not ideal.

WPWKT Series Universal Speed Worm Gearboxes Reducer

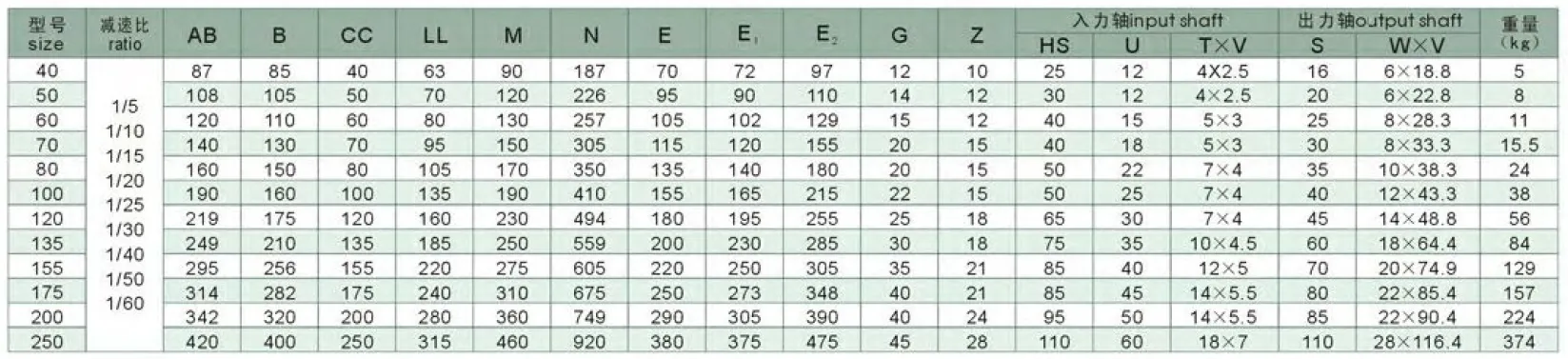

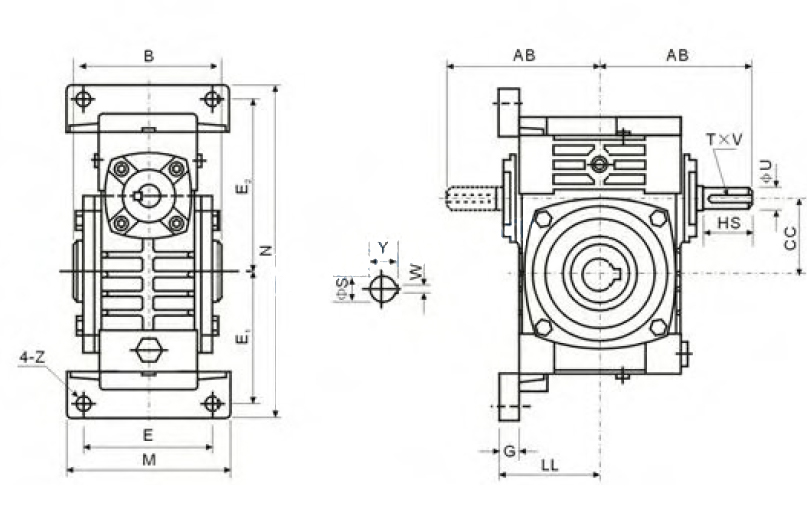

Specifications Parameter

WPWKT Reducer Model No. Meaning: WPWKT50-15

W worm gear worm reducer;
P box structure (P whole /D split);
W universal type (no code base type);
K output shaft structure (K hollow output shaft/no code base type);

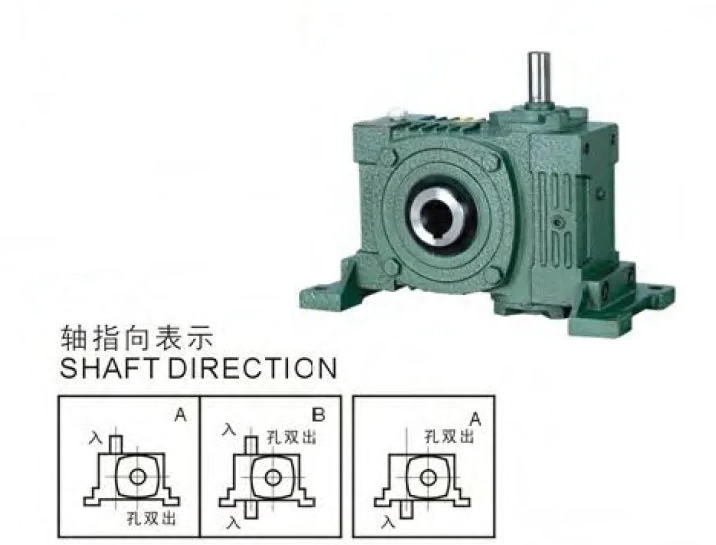

T output, input shaft type (A into the lower axis /S into the upper axis /O out of the axis up /X out of the axis down /T into the axis up /V into the axis down, no primary code type);
50 center distance;
15 transmission ratio;

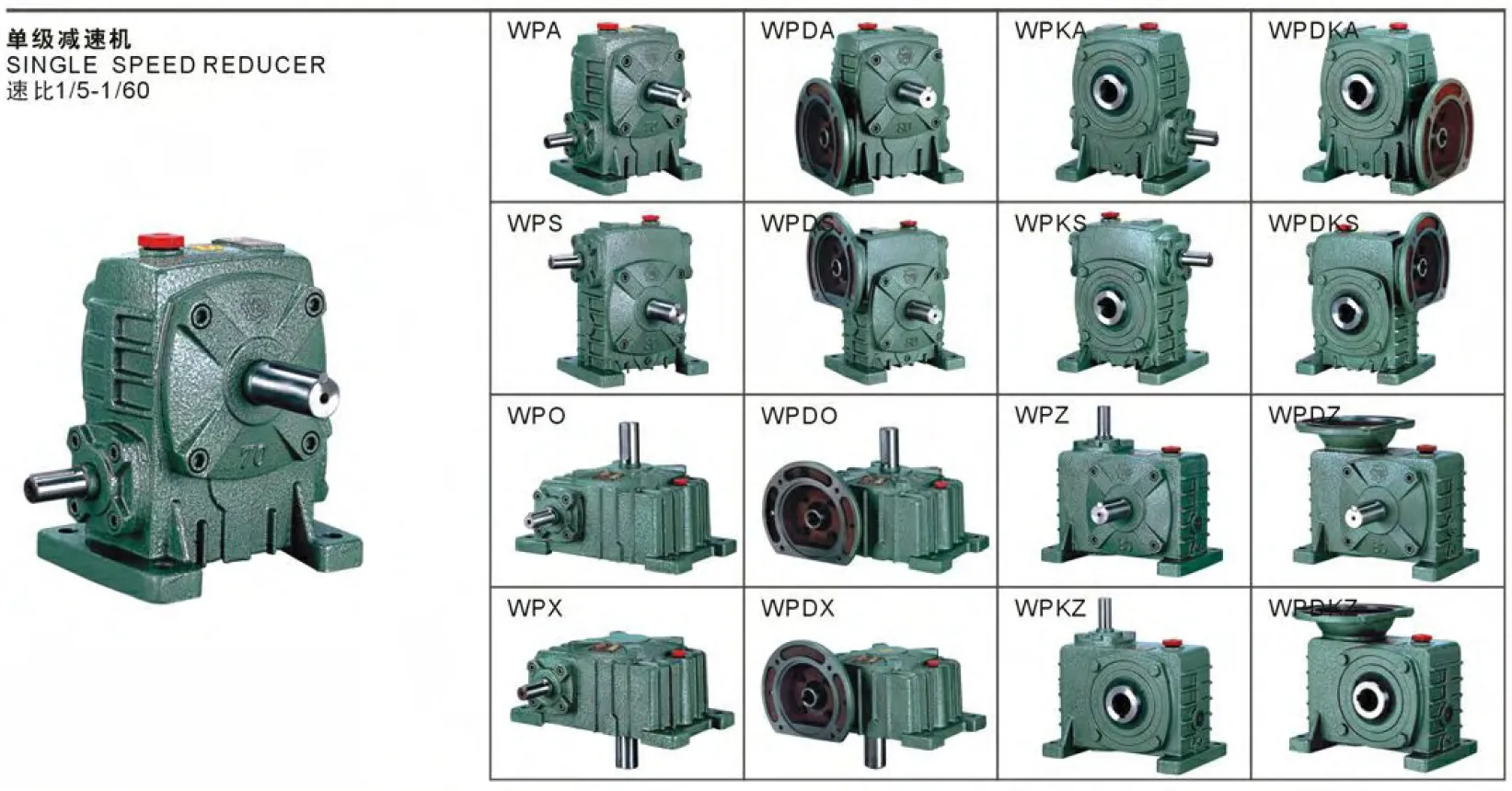

WP Series Worm Gearboxes Introduction:

1. Single-stage reducers are WPA, WPS, WPX, WPO, WPDA, WPDS, WPDX, WPDO, WPKA, WPKS, WPDKA, and WPDKS.
2. Universal reducers are, respectively, WPW, WPWA, WPWS, WPWX, WPWO, WPWV, WPWT, WPWD, WPWDA, WPWDS, WPWDX, WPWDO, WPWDT, WPWDV, WPWK, WPWKA, WPWKS, WPWKO, WPWKT and WPWKV, WPWDK, WPWDKA, WPWDKS, WPDZ, WPDKZ, WPWDKO, WPWDKT, WPWDKV.
3. Double-stage reducers include WPEA, WPES, WPEX, WPEO, WPWE, WPWED, WPEDA, WPEDS, WPEDX, WPEDO, WPWEKO, WPWEDK, WPWEK, WPEKA, WPEKS, WPEEA, WPEEDO, WPEDKA, and WPE DKS, WPWEDKO.

Packing and Transportation

1. Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
2. Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
3. Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
4. Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

Our Service

(1) With excellent quality and a reasonable price
(2) Promise to deliver on time
(3) Safe, reliable, economical, and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending

FAQ

Q: Are you a trading company or manufacturer?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally, it is 5-7 days after the goods are produced. Or it is 10-15 days if the goods are large in quantity.
Q: Do you provide samples?
A: Yes, we could offer the sample if you order more than 50 sets, but we don’t pay for the freight. And the fee will be returned after the transaction’s finished.
Q: What information shall we give before placing a purchase order?
A: You need to offer the size of the dimensions of the worm shaft and the ratio.
