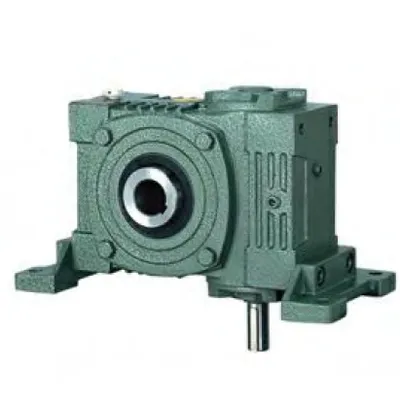

WPWKV Series Universal Speed Worm Gearboxes
WPWKV series worm gearboxes are composed of a pair of meshing worm gears, worms, etc., and are out in a rigid, sealed housing. It is commonly used as a deceleration transmission between the prime mover and the work machine. It is a separate component in the device.

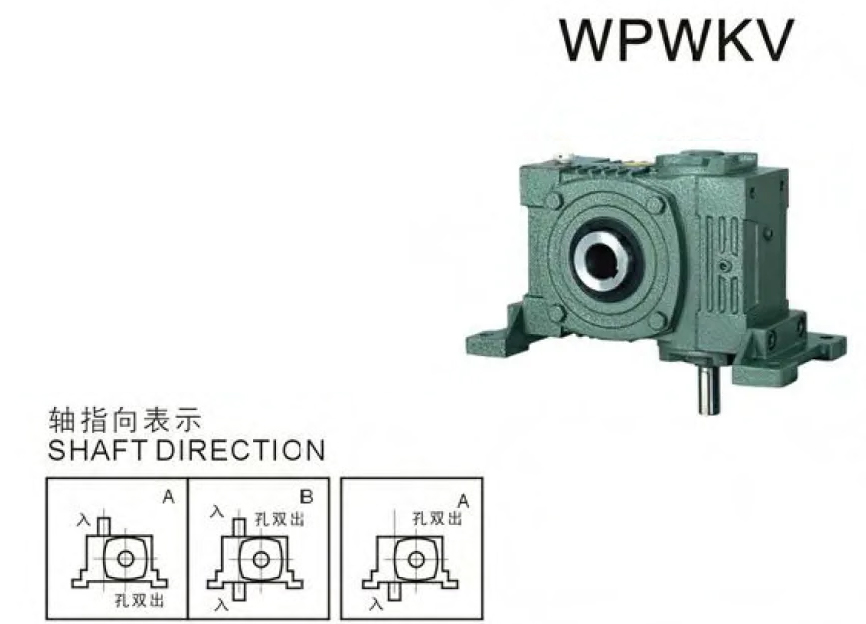

WPWKV worm gear reducer is a cast iron with a strong hardness housing. It has the advantages of compact structure, stable transmission, slight vibration, small shock and low noise, sizeable reduction ratio, and wide versatility that can be used with various mechanical equipmens. The housing form has primary type(input shaft in below, input shaft on upper, output shaft on the upper, output shaft is on below and universal type(housing is a rectangular parallelepiped, and multi-face is provided with fixing screws, with various structural forms such as without foot plate or additional foot plate).
This WPWKV series worm reducer is widely used in Metallurgy, Mining, Transporation, Water conservancy, the Chemical industry, Food, Beverage, and Textile.
WPWKV Worm Gearboxes
Model NO. | WPWKV40-250 |
Application | Industry |
Hardness | Hardened |
Type | Worm and Worm wheel |
Frame Size | WPWKV 40-250 |
Input Power | 0.12~15kw |
Output Speed | 25~300rpm |
Output Torque | 17~3000n, M |
Gear Arrangement | Worm |
Input Speed | 1500rpm |
Color | Green, Grey.Blue, and so on |
Package Details | Wooden Case/ Carton/ Pallet |
Weight | 5~500 Kgs |
Manufacturing Method | Rolling Gear |
Toothed Portion Shape | Bevel Wheel |
Material | Cast AND Aluminum |
Specification | ISO9001 |
Origin | Zhejiang |

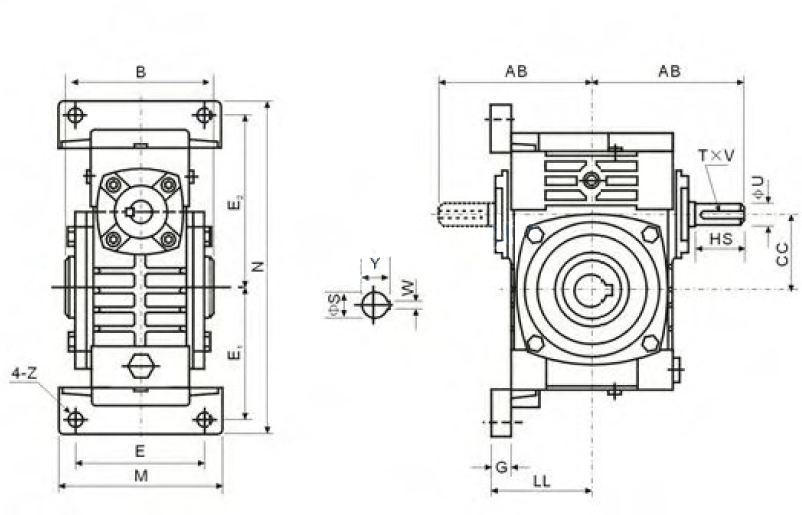

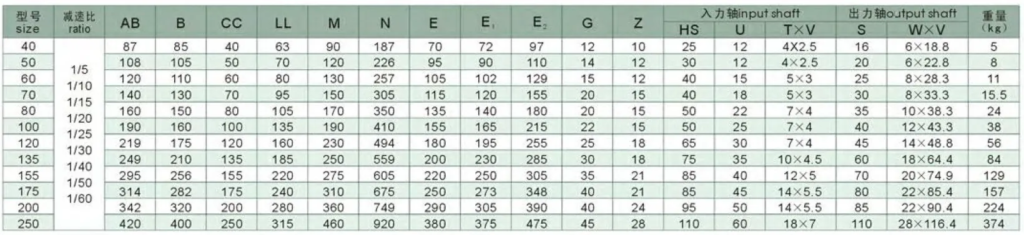

Product Specifications
Precautions for the Use of Worm Gear Reducer
1. Check carefully whether the reducer model, distance, ratio, input connecting method, output shaft structure, input and output shaft direction, and revolving direction accord with the required before using,
2. Please fill proper category and brand lubricant according to the requirement of selecting lubricant oil in the product manual. And then, screw on the vent plug, and unlock the small cone plug of the vent plug. Only after doing this reducer is it already starting up and running. An excellent brand and adequate lubricant oil are required; replacing oil in time and conforming to the request of the product manual is also necessary, especially after using the first 100hours, it is needed to refill new oil.
3. When abnormal circumstances occur, please check and stop the reducer per solutions and reasons for faults of the reducer(allowable highest oil temperature is 95 under this temperature limit, if the oil temperature no more goes up, please let the reducer continue running).
Choice of Lubricant
Before operating the worm gear speed reducer, add N220 ~ N320(Ambient temperature-30°℃~40°℃), N320~N460(Ambient temperature 40°C~65C)lubrication oil up to the center line of the oil gauge. In the meanwhile, remove the small screw of the air vent. After having worked for 100 hours for the first time, you must clear the inside and change the lubrication oil in it, hre after once every 2500 hours.
Packing and Transportation
- Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
- Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
- Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
- Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
Company Profile
As a professional manufacturer of worm gearboxes and worm gear reducers in China, we mainly produce reduction gearboxes, aluminum case worm gearboxes, arc gear cylindrical worm gearboxes, worm gear reducers, in-line helical gearboxes, and cyclo drive reducers, etc. These products feature rational structure, stable performance, reliable quality, etc. They are widely used in power, mining, metallurgy, building material, chemical, food, printing, ceramic, paper-making, tobacco, and other industries.
We have 600 workers in our factory, which covers 70,000 square meters in Hangzhou. We have been making 2,500 units of reducers every day since 2012. We are proudly exporting 70% of our products to more than 40 countries all over the world. Our customers come from Italy, Germany, the USA, Canada, Spain, the UK, Mexico, Brazil, Argentina, Turkey, Singapore, and other leading industrial countries worldwide. 30% of them are OEM-made for direct manufacturers of other products.
We warmly welcome customers from other parts of the world to visit us. Seeing is believing. We are confident that you will have confidence in our products after visiting our facility. We have the latest automatic equipment and experienced workers to ensure stable quality and large output. We have the most sophisticated technology and engineering team to support the most demanding requirements on standard and OEM products.
FAQ
Q: Are you a trading company or manufacturer?
A: We are a factory.
Q: How long is your delivery time?
A: Generally, it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock.
Q: Can we buy one pc of each item for quality testing?
A: We are glad to accept a trial order for quality testing.
Q: How to choose a gearbox that meets your requirement?
A: You can refer to our catalog to choose the gearbox, or we can help to decide when you provide
the technical information of required output torque, speed, and motor parameters.
Q: What information shall we give before placing a purchase order?
A: a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor information.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
