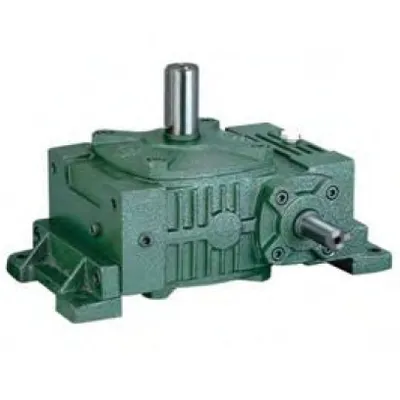

WPWO Series Universal Speed Worm Gearboxes
The primary function of the worm gear is to transmit motion and power between two staggered shafts, while the immediate process of bearings and shafts is to transmit power, run and improve efficiency. The basic structure of the worm gear reducer is mainly composed of transmission parts, worm gear, shaft, bearing, box, and accessories. It can be divided into three essential structures: box, worm gear, bearing, and shaft combination. The casing is all the accessories in the worm gear reducer. It is an essential accessory for supporting and fixing the shafting components, ensuring the transmission accessories’ correct relative position, and supporting the reducer’s load.
WPWO Series Universal Speed Worm Gearboxes
The primary function of the worm gear(WPWO Series Universal Speed Worm Gearboxes) is to transmit motion and power between two staggered shafts, while the immediate process of bearings and shafts is to transmit power, run and improve efficiency. The basic structure of the worm gear reducer is mainly composed of transmission parts, worm gear, shaft, bearing, box, and accessories. It can be divided into three essential structures: box, worm gear, bearing, and shaft combination. The casing is all the accessories in the worm gear reducer. It is an essential accessory for supporting and fixing the shafting components, ensuring the transmission accessories’ correct relative position, and supporting the reducer’s load.
 |
 |
WPWO Worm Gearbox Reducer
| Gearing Arrangement | Worm |
| Output Torque | 19-2745N.m |
| Rated Power | 0.12-33.2kw |
| Input Speed | 1400RPM |
| Output Speed | 19-186.7RPM |
| Place of Origin | Zhejiang, China |
| Model Number | WPWO |
| Brand Name | Neutral,OEM Acceptable |
| Item | High-quality WPWO reduction gearbox reducer |
| The manufacturing method of gear | Cast gear |
| keyword | WPWO speed reducer |
| Color | Green, blue gray red golden, and so on |
| Type | Worm gearbox reducer |
| Model | WPWO |
| Ratio | 1:5,10,15,20,25,30,40,50,60 |
| Color | Blue/Red Or On Customer Request |
| Material | Housing: Die-Cast Iron cast |
| Worm Gear-Copper-10-3# | |
| Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC | |
| Shaft-chromium steel-45# | |
| Packing | Carton and Wooden Case |
| Warranty | 1 Year |
| Usages | Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing, Woodworking, Glass. |
| IEC Flange | 56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON |
| Lubricant | Synthetic&Mineral |

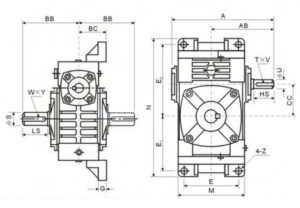

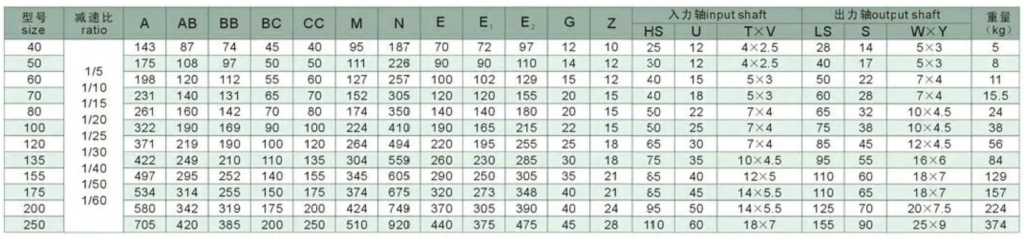

Product Specifications
WPWO Series Universal Speed Worm Gearboxes Description
1. Housing: iron cast
2. Low noise: <50DB
3. Efficient and safe operating
4. Certification: ISO9001
5. Without vent and high precision.
6. all structure is compact, and the weight is higher.
7. Widely used in turbines, shaft liners, and axletrees, with good resistance to wearing, high precision in dimensions, lower noise, and advanced center running castings.
 |
 |
Application of WPWO Series Worm Gearbox
It is mainly suitable for the deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction, etc.
 |
 |
 |
Notices of Usage

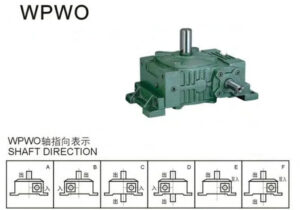

1. Before using, please check carefully whether the gearbox model, distance, ratio, input connecting method, output shaft structure, information. And output shaft direction, and revolving direction accord with the requirement
2. According to the requirement of selecting lubricant oil in the product manual, please fill proper category and brand lubricant. And then, screw on the vent plug; Unlock the small cone plug of the vent plug. Only after doing this reducer is it already starting up and running. The proper brand and adequate lubricant oil are required; replacing oil in time conforming to the request of the product manual is also necessary, especially after using the first 100 hours; it is needed to refill new oil
3. When abnormal circumstances occur, please stop and check the reducer per solutions and reasons for faults of reducer (allowable highest oil temperature is 95, under this temperature limit, if the oil temperature no more goes up, please let the reducer continue running)
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
