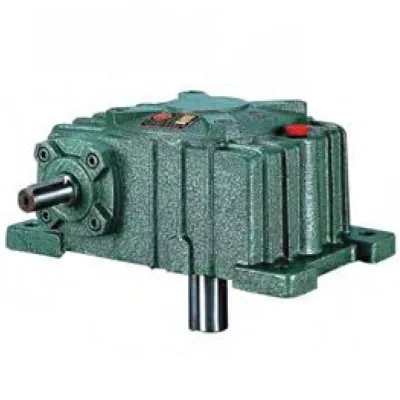

WPX Series Worm Gearboxes

WPX Series Worm Gearboxes

WPX series worm gearboxes feature a vertical output shaft. Since its worm and sheel are constantly immersed in lubricating oil, it is ideal for low-speed, high-torque applications in various mixing equipment.

Features:

1. The reducers’ applications in the light industry, has good resistance to wear, high precision in dimensions, lower noise,
advanced centric running castings
2. The housing is of strong hardness, compact structure
3. Stable transmission, low vibration, large ratio, working in various machines

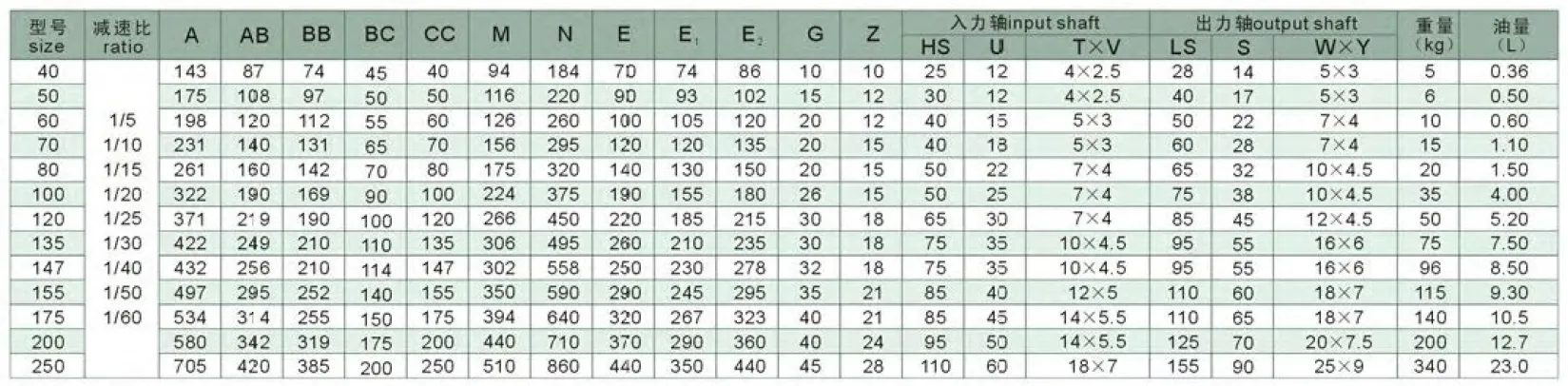

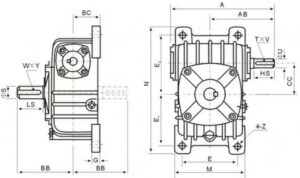

Specifications Parameter

Other Models & Variants:
WPA Series – Lower Input Shaft
WPS Series – Upper Input Shaft
WPDA Series – Lower Input Flange
WPDS Series – Upper Input Flange
WPO Series – Vertical Upward Output Shaft
WPX Series – Vertical Downward Output Shaft
WPDO Series – Vertical Upward Output Shaft, Input Flange
WPDX Series – Vertical Downward Output Shaft, Input Flange

Installation Precautions

(1) Install the gearboxes on a flat and solid base, and the bottom bolts must be tightened and shock-proof.
(2) The extension of the connecting shaft of the prime mover, gearbox, and working machine must be accurately aligned with each other after installation.

(3) The outer diameter tolerance of shaft extension at the gearbox’s input and output end shall be made according to h6. The inner holes of the transmission parts, such as coupling, belt pulley, and sprocket, shall be prepared according to the appropriate tolerance size to avoid the bearing being damaged by the too-tight assembly and the normal power transmission being affected by the too-loose assembly.

(4) Sprocket, gear, and other transmission parts installed shaft extension should be as close to the bearing as possible to reduce shaft extension bending stress.
(5) When assembling the motor of WPD gearboxes, butter should be applied in the inner hole wall of the worm head and the fundamental way to avoid too tight assembly and prevent the axle hole from rusting.
(6) When ordering all kinds of WPD gearboxes, support devices should be set up if the motor weight is too large.

Application of WPX Series Worm Gearboxes

It is mainly suitable for the deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction, etc.

Packing and Transportation

• Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
• Delivery time: We produce and test each reducer strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
• Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
• Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
