WWRC18 welded straight sidebar chain
WWRC18 welded straight sidebar chain
Power-trans’s straight sidebar welded steel chains offer an economical and highly effective solution for conveying a wide range of materials. They are commonly used in various industries, including wood, pulp and paper, plywood, OSB, MDF, and other board mills, as well as in bucket elevators and bulk material handling systems.
For enhanced impact strength and superior wear resistance, consider using chains that are fully heat-treated or induction-hardened. These treatments provide increased durability and longevity, making them ideal for demanding applications.

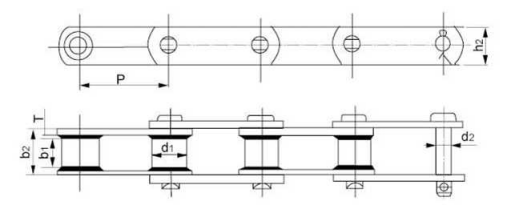

| China
No. |
Pitch
P mm |
Diameter of Bushing d1(max) mm | Diameter of Pin
d2(max) mm |
Outer Width of Inner Link b2(max) mm | Amplitude of Touch Wheel b1(max) mm | Height of Sidebar h2(max) mm | Thickness of Sidebar T
mm |
Tensile Strength Q(min) KN | Weight per Meter
q kg/m |
| WWRC-18 | 66.27 | 22 | 12.70 | 50 | 28 | 28 | 6 | 107 | 6.2 |
| WRC-82 | 78.10 | 27 | 14.29 | 57 | 32 | 32 | 6 | 115 | 7.0 |
| WRC-124 | 101.60 | 34.9 | 19.05 | 69.8 | 38.1 | 38 | 9.5 | 200 | 15.5 |
| WRC-132 | 153.67 | 45 | 25.40 | 110 | 73 | 50 | 12 | 380 | 26.8 |
| WHC131 | 78.1 | 31.75 | 19.05 | 57.15 | 28 | 38.1/42.88 | 9.5 | 224 | 7.8 |

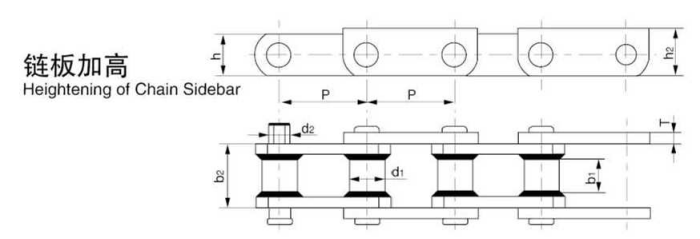

| Chain | Pitch | Diameter | Diameter of | Height of | Inner Width | Outer | Thickness of | Tensile | Weight |
| No. | of Bushing | Pin | Sidebar | of Close End | Width | Sidebar | Strength | per Meter | |
| P | d1(max) | d2(max) | h2(max) | b1(max) | b2(max) | T | Q(min) | q | |
| mm | mm | mm | mm | mm | mm | mm | KN | kg/m | |
| WRC-131 | 78.10 | 31.75 | 19.05 | 38.1/42.88 | 28 | 57.15 | 9.5 | 224 | 7.8 |
| WHC132 | 153.67 | 44.45 | 25.25 | 50.8/76.2 | / | 111.76 | 12.7 | 378 | 20.1 |
