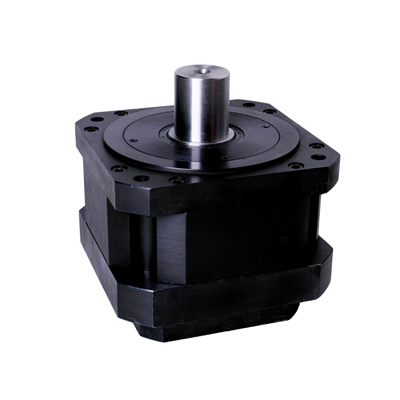

X Heavy Planetary Gearbox
X Heavy Planetary Gearbox
| Type | X190 | X240 | X285 | X330 | X400 | Ratio | Stages | |
Nominal output torqueT2N |
Nm | 2086.7 | 3706.4 | 6398.5 | 10170.8 | 16091.8 | 4 | 1 |
| 1550 | 3027.3 | 5236.3 | 8313.3 | 12414.0 | 5 | |||
| 940.7 | 1836.5 | 3175.4 | 5043.4 | 7506.3 | 8 | |||
| – – | 1800 | – – | – – | – – | 10 | |||
| – – | – – | – – | – – | 9 | 2 | |||
| – – | – – | – – | – – | – – | 12 | |||
| – – | – – | – – | – – | – – | 15 | |||
| 2086.7 | 3706.4 | 6398.5 | 10170.8 | 16091.8 | 16 | |||
| 2086.7 | 3706.4 | 6398.5 | 10170.8 | 16091.8 | 20 | |||
| 1550 | 3027.3 | 5236.3 | 8313.3 | 12414.0 | 25 | |||
| 2086.7 | 3706.4 | 6398.5 | 10170.8 | 16091.8 | 32 | |||
| 1550 | 3027.3 | 5236.3 | 8313.3 | 12414.0 | 40 | |||
| 940.7 | 1836.5 | 3175.4 | 5043.4 | 7506.3 | 64 | |||
| 2086.7 | – – | – – | – – | – – | 60 | 3 | ||
| 2086.7 | 3706.4 | 6398.5 | 10170.8 | 16091.8 | 80 | |||
| 2086.7 | 3706.4 | 6398.5 | 10170.8 | 16091.8 | 100 | |||
| 1550 | 3027.3 | 5236.3 | 8313.3 | 12414.0 | 120 | |||
| 2086.7 | 3706.4 | 6398.5 | 10170.8 | 16091.8 | 160 | |||
| 1550 | 3027.3 | 5236.3 | 8313.3 | 12414.0 | 200 | |||
| 2086.7 | 3706.4 | 6398.5 | 10170.8 | 16091.8 | 256 | |||
| 1550 | 3027.3 | 5236.3 | 8313.3 | 12414.0 | 320 | |||
| 940.7 | 1836.5 | 3175.4 | 5043.4 | 7506.3 | 512 | |||
| Emergency stop | Nm | T2Not=2T2N | ||||||
Type X190 X240 X285 X330 X400 Stages Frmax.for10.000h N 4200 6750 9550 9200 15800 Famax.for10.000h N 3400 6500 7800 8500 11500 Efficiency with full load % 96 1 94 2 90 3 Average lifetime h 20000 Weight Kg 34+5 59+12 87+26 115+30 195+55 1 37+5 75.5+12 110+26 160+30 285+55 2 42.5+4 80+9 128+12 190+26 330+30 3
| Banklash | arcmin(分) | X190 | X240 | X285 | X330 | X400 | Stages | |
| precision | <12 | <10 | <10 | <10 | <10 | 1 | ||
| criterion | <12 | <10 | <10 | <10 | <10 | 1 | ||
| precision | <15 | <18 | <18 | <18 | <18 | 2 | ||
| criterion | <15 | <18 | <18 | <18 | <18 | 2 | ||
| precision | <22 | <22 | <22 | <22 | <22 | 3 | ||
| criterion | <22 | <22 | <22 | <22 | <22 | 3 |
| X190 | X240 | X285 | X330 | X400 | ||
| Torsional rigidity | Nm/arcmin | 66.7 | 123.3 | 213.3 | 339.0 | 536.4 |
| Noise | dB(A) | 70 | 70 | 70 | 70 | 70 |
| Max.input speed | min-1 | 6000 | 5000 | 5000 | 4500 | 3800 |
| Advised input speed | min-1 | 2500 | 2000 | 2000 | 2000 | 2000 |
X heavy planetary gearbox dimensions：
Type X190 X240 X285 X330 X400 stages 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 A Flange length □ 190 240 285 330 400 D1 flange holes circle 215 265 315 370 425 D2 Mounting threadx depth 4?/font> φ13.5 φ18 φ18 φ22 φ22 D3 Output shaft diameter h6 50 65 70 80 90 D4 Shaft root 60 75 85 90 100 D5 Output centering h7 160 225 250 290 350 D7 Input center bore for motor H7 114.3 114.3 114.3 180 114.3 114.3 230 180 180 250 230 230 300 250 250 D8 Input pinion bore F7 35 35 35 42 35 35 55 42 42 60 55 55 80 60 60 D9 Hole circle 200 200 200 215 200 200 265 215 215 300 265 265 350 300 300 D10 Mounting threadx depth M12*30 M12*30 M12*30 M12*30 M12*30 M12*30 M12*30 M12*30 M12*30 M16*40 M12*40 M12*30 M16*40 M16*40 M16*40 Q1 Input flange □ 176 176 176 240 176 176 285 240 240 330 285 285 400 330 330 L1 Key length 70 85 95 100 115 L2 Distance from shaft end 5 7.5 7.5 10 10 L3 Shaft length from spigot 80 100 110 120 135 L4 Shaft length from output 90 113 123 133 150 L5 Body length 186 234 270.5 185.5 255.5 303.5 211 277 350 241 333 427 287 393 498 L6 Motor flange length 57 57 57 78 57 57 100 78 78 130 100 100 160 130 130 L7 Overal lngth 333 381 417.5 316.5 425.5 473.5 434 478 548 504 566 660 597 673 778 L8 Spigot depth 8 8 8 8 10 L9 Motor location depth 4 4 4 6.5 6.5 6.5 6.5 6.5 6.5 8 6 6 8 8 8 L10 Motor shaft length 80 80 80 85 80 80 110 85 85 140 110 110 170 140 140 B1 Key width 14 18 20 22 25 H1 Key height 53.5 69 74.5 85 95 Z Orient holes M12?6 M12?6 M16?0 M16?0 M16?0 H Flange depth 26 25 25 25 35 B2 Key width js9 — — — 12 — — 16 12 12 18 16 16 22 18 18 H2 Key height — — — 45.3 — — 59.3 45.3 45.3 64.4 59.3 59.3 85.4 64.4 64.4
- For longer motor shafts L6 applies:The measure L6 and L10 will be lengthen by the same amount as the motor shaft.
Hornwork 1）i=10 hour，A=□120，L5=96，L7=191；Hornwork 2）i=10 hour，L5=178，L7=290。
