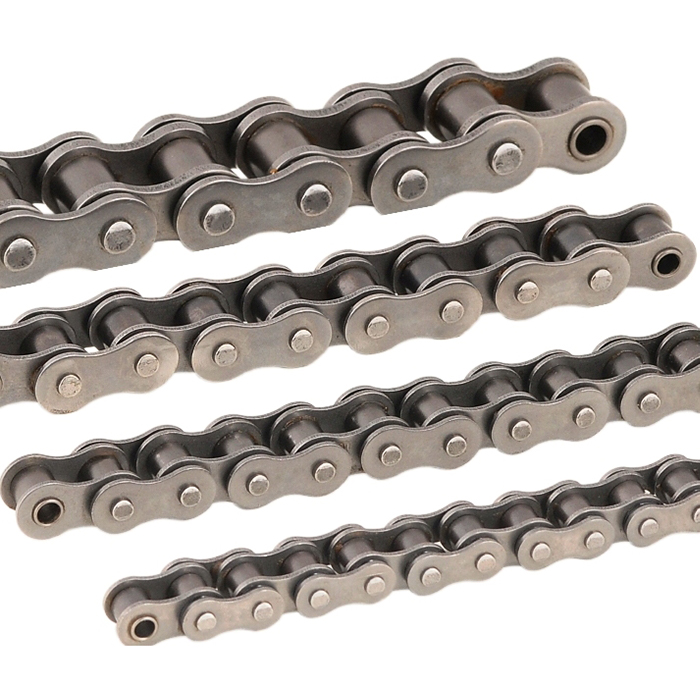

X Ring chain
Motorcycle chains help maintain smooth and predictable power transmission, so they’re critical to delivering a safe riding experience. With proper maintenance and inspection, your motorcycle chain can keep your motorcycle ride safe and steady. Keep your chain in good condition or swap it for a new one here at Motorcycle Superstore.
Motorcycle chains help maintain smooth and predictable power transmission, so they’re critical to delivering a safe riding experience. With proper maintenance and inspection, your motorcycle chain can keep your motorcycle ride safe and steady. Keep your chain in good condition or swap it for a new one here at Motorcycle Superstore.

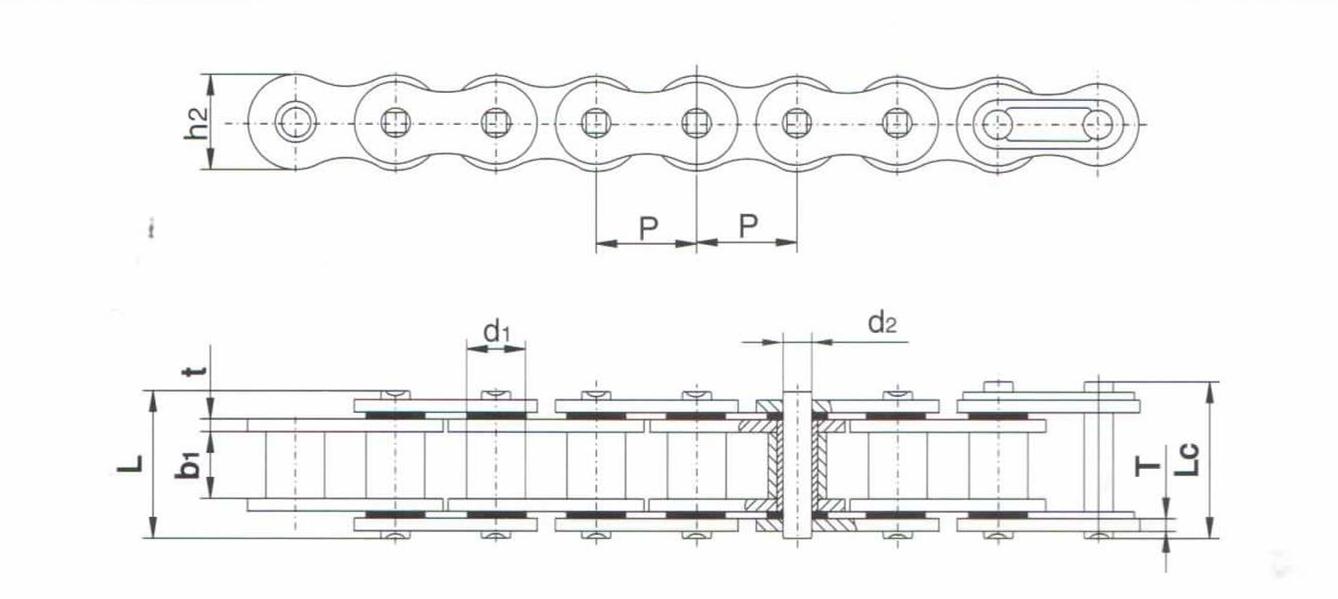

Dimensional parameters
链号
Chain |
节距
Pitch |
滚子直径 Roller diameter | 内节内宽 Width between inner plates | 销轴直径 Pin
diameter |
销轴长度 Pin
length |
内链板高度 Inner plate depth | 链板厚度 Plate Thick -ness | 极限拉伸载荷 Ultimate tensille strength | |
No. | P | d1
max |
b1
min |
d2
max |
L
max |
Lc
max |
h2
max |
T
max |
Q
min |
mm | mm | mm | mm | mm | mm | mm | mm | kN | |
520 | 15.875 | 10.16 | 6.25 | 5.08 | 20.5 | 22.0 | 15 | 2.03 | 29.0 |
520H | 15.875 | 10.16 | 6.25 | 5.08 | 21.6 | 23.1 | 15 | 2.42 | 37.0 |
525 | 15.875 | 10.16 | 7.94 | 5.08 | 21.6 | 23.1 | 15 | 2.03 | 29.0 |
525H | 15.875 | 10.16 | 7.94 | 5.08 | 22.8 | 24.3 | 15 | 2.42 | 37.0 |
530 | 15.875 | 10.16 | 9.50 | 5.08 | 22.8 | 24.3 | 15 | 2.03 | 29.0 |
530H | 15.875 | 10.16 | 9.50 | 5.08 | 24.8 | 26.3 | 15 | 2.42 | 37.0 |
630 | 19.05 | 11.91 | 9.50 | 5.94 | 25.3 | 27.2 | 18 | 2.42 | 38.0 |
630H | 19.05 | 11.91 | 9.50 | 5.94 | 28 | 29.9 | 18 | 3.0 | 45.0 |
635 | 19.05 | 11.91 | 11.1 | 5.94 | 26.9 | 28.8 | 18 | 2.42 | 38.0 |
635H | 19.05 | 11.91 | 11.1 | 5.94 | 29.6 | 31.5 | 18 | 3.0 | 45.0 |
640 | 19.05 | 11.91 | 12.7 | 5.94 | 29.6 | 31.5 | 18 | 2.42 | 38.0 |
640H | 19.05 | 11.91 | 12.7 | 5.94 | 31.2 | 33.1 | 18 | 3.25 | 45.0 |
