XH series lumber conveyor chain
XH series lumber conveyor chain

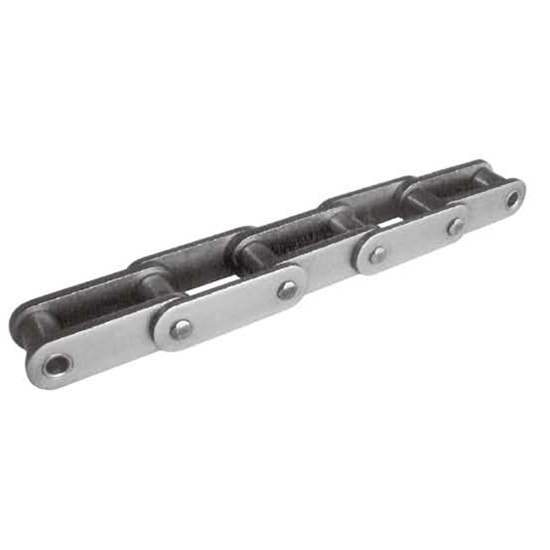

The 81XH chain has a pitch of 2.609 inches and is an engineer-grade steel bushing roller chain. It is known for its heavy-duty design and thicker side plates, offering excellent performance in impact load resistance and tensile strength. Manufactured to ANSI specifications, it is interchangeable with other brands. We also offer 81XH sprockets, 81X chain attachments, and 81X chain breakers.
Due to its superior strength and effective design, it is widely used worldwide in applications such as lumber, agriculture, mills, grain handling, and various drive and conveyor systems.

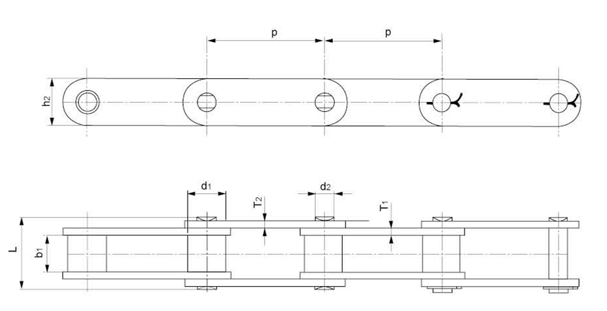

Diameter Data
| Chain
No. |
Pitch
P mm |
Diameter of Roller
d1(max) mm |
Inner Width of
Inner Link b1(min) mm |
Diameter of Pin
d1(max) mm |
Length of Pin
L(max) mm |
Height of
Sidebar h2(max) mm |
Thickness of Inner Sidebar T1 mm | Thickness of outer Sidebar T2 mm | Tensile Strength
Q(min) KN |
Weigth per Meter
q kg/m |
| 81X | 66.27 | 23.02 | 26.99 | 11.1 | 49.0 | 28.6 | 4.00 | 4.00 | 106.7 | 3.90 |
| 81XH | 66.27 | 23.02 | 26.99 | 11.1 | 61.2 | 32.3 | 7.87 | 5.60 | 152.0 | 5.90 |
| 81XHH | 66.27 | 23.02 | 26.99 | 11.1 | 63.5 | 32.3 | 7.87 | 7.87 | 186.7 | 6.52 |
| 81XA | 66.27 | 23.02 | 38.1 | 11.1 | 62.4 | 28.6 | 4 | 4 | 127.0 | 4.3 |
| 81XXH | 66.27 | 23.02 | 38.1 | 11.1 | 63.5 | 32.3 | 7.5 | 7.5 | 152.0 | 6.5 |
