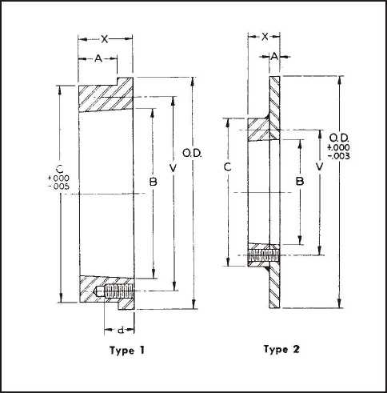

XTH series hubs
Part | For | Dimensions | Tapped Holes | Wt | |||||||
No. | Bushing | O.D. | A | B | C | V | X | d | No. | Size | lbs. |
TYPE 1 Hubs
XTH15 | XTB15 | 31/4″ | 7/16″ | 2.000″ | 27i8″ | 27/16″ | 5/8″ | 5/8″ | 4 | 1/4″ | -20UNC | 3 |
XTH20 | XTB20 | 41/8 | 9/16 | 2.688 | 313/16 | 33/16 | 13/16 | 13/16 | 4 | 5/16 | -18UNC | 1.5 |
XTH25 | XTB25 | 43/4 | 13/16 | 3.188 | 43/8 | 33/4 | 1 1/8 | 11/8 | 4 | 3/8 | -16SNC | 2.5 |
XTH30 | XTB30 | 6 | 7/8 | 3.875 | 53/4 | 49/16 | 1 1/4 | 11/16 | 4 | 7/16 | -14UNC | 4.3 |
XTH35 | XTB35 | 65/8 | 11/16 | 4.688 | 6.345 | 57/16 | 11/2 | 11/4 | 4 | 1/2 | -13UNC | 6.5 |
XTH40 | XTB40 | 75/8 | 11/4 | 5.313 | 71/4 | 61/8 | 13/4 | 13/8 | 4 | 9/16 | -12UNC | 19.2 |
XTH45 |
XTB45 | 83/8 | 11/2 | 5.938 | 8 | 67/8 | 21/8 | 19/16 | 4 | 5/8 | -11UNC | 19.4 |
XTH50 | XTB50 | 10 | 13/4 | 7.250 | 99/16 | 85/16 | 21/2 | 13/4 | 4 | 3/4 | -10UNC | 24.5 |
XTH60 | XTB60 | 113/4 | 115/16 | 8.625 | 111/4 | 9 7/8 | 23/4 | 15/8 | 4 | 7/8 | _ 9UNC | 24.5 |
XTH70 | XTB70 | 1311/16 | 23/16 | 10.000 | 133/16 | 11 9/16 | 31/8 | 1 15/16 | 4 | 1 | _ 8UNC | 57.7 |
XTH80 | XTB80 | 15 | 27/16 | 11.125 | 145/8 | 12 7/8 | 37/16 | 23/8 | 4 | 11/8 | _ 7UNC | 75.6 |
XTH100 | XTB100 | 18 | 3 | 13.688 | 171/2 | 159/16 | 41/8 | 23/16 | 6 | 11/8 | -7UNC | 122 |
XTH120 | XTB120 | 21 | 31/2 | 16.188 | 201/2 | 183/16 | 413/16 | 2 | 8 | 11/8 | -7UNC | 188 |
TYPE 2 XTH series hubs
XTH15F4 | XTB15 | 3.855″ | 1/4″ | 2.000″ | 3 5/8 “ | 27/16 “ | 9/16 〃 | 4 | 1/4″ | -20UNC | 1.2 | |
XTH15F5 | XTB15 | 4.805 | 1/4 | 2.000 | 4 5/8 | 27/16 | 9/16 | — | 4 | 1/4 | -20UNC | 1.7 |
XTH15F6 | XTB15 | 5.815 | 1/4 | 2.000 | 51/2 | 27/16 | 9/16 | — | 4 | 1/4 | -20UNC | 2.3 |
XTH15F8 | XTB15 | 7.807 | 1/4 | 2.000 | 2 7/8 | 27/16 | 11/16 | – | 4 | 1/4 | -20UNC | 3.8 |
XTH20F5 | XTB20 | 4.805 | 1/4 | 2.688 | 33/4 | 33/16 | 13/16
13/16 |
_ | 4 | 5/16 | -18UNC | 1.8 |
XTH20F6 | XTB20 | 5.815 | 1/4 | 2.688 | 33/4 | 33/16 | – | 4 | 5/16 | -18UNC | 2.4 | |
XTH20F8 | XTB20 | 7.807 | 1/4 | 2.688 | 33/4 | 33/16 | — | 4 | 5/16 | -18UNC | 3.9 | |
XTH20F10 | XTB20 | 9.827 | 5/16 | 2.688 | 33/4 | 33/16 | 13/16 | – | 4 | 5/16 | -18UNC | 7.0 |
XTH20F12 | XTB20 | 11.847 | 5/16 | 2.688 | 33/4 | 33/16 | – | 4 | 5/16 | -18UNC | 9.7 | |
XTH25F6 | XTB25 | 5.815 | 5/16 | 3.188 | 4 3/8 | 33/4 | 11/8 | _ | 4 | 3/8 | -16UNC | 3.4 |
XTH25F8 | XTB25 | 7.807 | 5/16 | 3.188 | 43/8 | 33/4 | — | 4 | 3/8 | -16UNC | 5.3 | |
XTH25F10 | XTB25 | 9.827 | 5/16 | 3.188 | 4 3/8 | 33/4 | 11/8 | — | 4 | 3/8 | -16UNC | 7.8 |
XTH25F12 | XTB25 | 11.847 | 5/16 | 3.188 | 4 3/8 | 33/4 | 11/8 | – | 4 | 3/8 | -16UNC | 10.6 |
