YD series forging scraper chain
YD series forging scraper chain

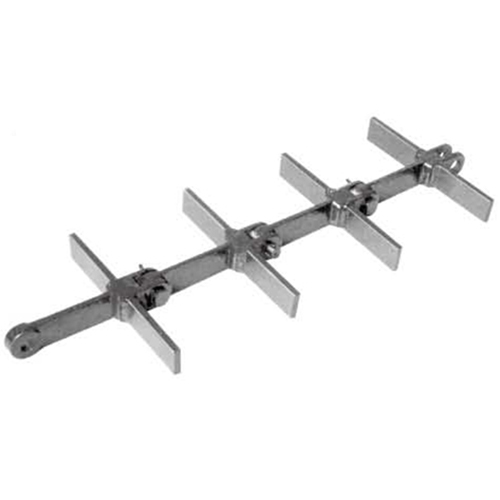

The forged scraper chain is a durable and versatile conveyor chain designed for demanding applications. It features link plates that are either integrated with scrapers or combined with dragging chain plates, all of which are forged for added strength. To enhance performance, the alloy steel pins undergo either integral heat treatment or high-frequency induction heating to boost surface hardness. Additionally, the alloy steel link plates are heat treated or surface carburized to improve wear resistance.
This chain is particularly suited for embedded scraper conveyors but is also extensively used in various industries, including grain processing, mining machinery, steelmaking, and power generation. Its robust construction ensures reliable operation and longevity in challenging environments.

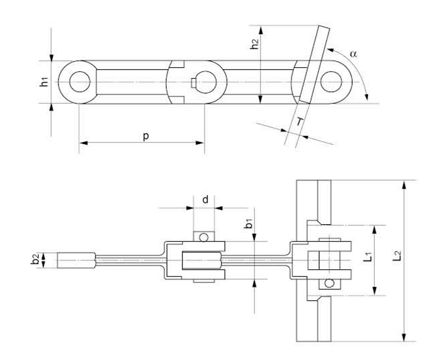

Diameter Data
| Chain
No. |
Pitch
P mm |
Height of Sidebar h1 mm | Thickness of Sidebar | Diameter of Pin d2 mm | Dimensions of Scraper | Tensile Strength Q(min) KN | |||||
| b1
mm |
b2
mm |
L1
mm |
L2
mm |
h2
mm |
α
mm |
T
mm |
|||||
| YD640A | 142 | 48 | 42 | 18 | 23 | — | 300 | 48 | 75 | 14 | 230.0 |
| YD640C | 142 | 50 | 54 | 22 | 25 | 80 | 590 | 50 | 90 | 14 | 262.4 |
| YD640D | 142 | 50 | 54 | 22 | 25 | 90 | 590 | 82 | 90 | 14 | 262.4 |
| YD200 | 150 | 40 | 38 | 16 | 18 | – | 177 | 40 | 75， | 8 | 162.0 |
| YD310 | 200 | 46 | 44 | 20 | 20 | — | 280 | 46 | 75 | 12 | 162.0 |
