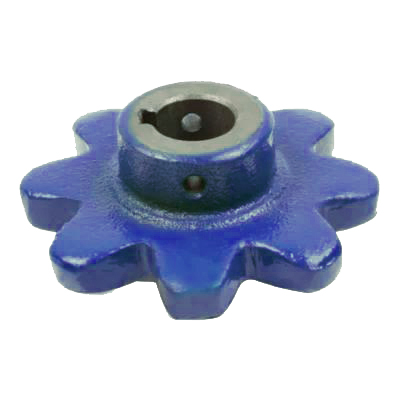

Z10032/Z10997 Chain Sprocket Grain Handing Area for John Deere Combine
- Destination of the chain sprocket: The sprocket is an obligatory element of chain drive which serves for torque transfer between two in parallel located shaft by means of a flexible element – a chain.
- Structure of the sprocket: Sprocket is a profiled wheel with teeth, which is characterized by the following parameters: width roller sprocket, chain pitch, the outer diameter of the sprocket, the number of sprocket teeth, width sprocket diameter fit on the shaft.
- Application: Spare part for John Deere combine
- Features: One row sprocket.
Parameters of Z10032 chain sprocket
Weight , W | kg | 1.02 |
---|---|---|
Inner diameter , d | mm | 25 |
Outer diameter , D | mm | 114 |
Number of teeth , Z | 8 | |
Mounting holes diameter , Dm | mm | 6 |
Height , H | mm | 54 |
Key slot | mm | 8х54х4 |
Usage of Z10997 chain sprocket
Combine harvester John Deere: 1032 1042 1052 1055 1065 1068H 1072 1075 1085 1133 1144 1155 1157 1158 330 730 925 930 932 935 940 942 945 950 952 955 960 965 965H 968H 970 975 985
