Half Sheave For John Deere Combine Z10083/Z10079/Z10082
Half Sheave can be adapted to Combine Harvester John Deere: 1032 1042 1052 1133 1144 925 930 932 935 940 942 945
Half Sheave can be adapted to Combine Harvester John Deere: 1032 1042 1052 1133 1144 925 930 932 935 940 942 945
Half Sheave For John Deere Combine Z10083/Z10079/Z10082
Half Sheave can be adapted to Combine Harvester John Deere: 1032 1042 1052 1133 1144 925 930 932 935 940 942 945
Half sheave Usage
Reel spare part of John Deere combine harvesters.
Designation
Provides turns regulation of reel consisting of variator.
Used to replace worn or damaged spare parts during repair works.
Properties

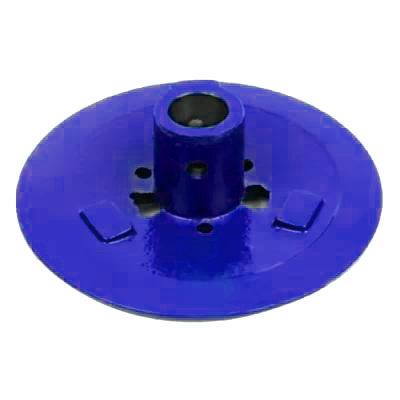

Cast steel product in the form of truncated cone with a groove under the spline in the central bore.
The surface of the detail is treated with paintwork refinishing.

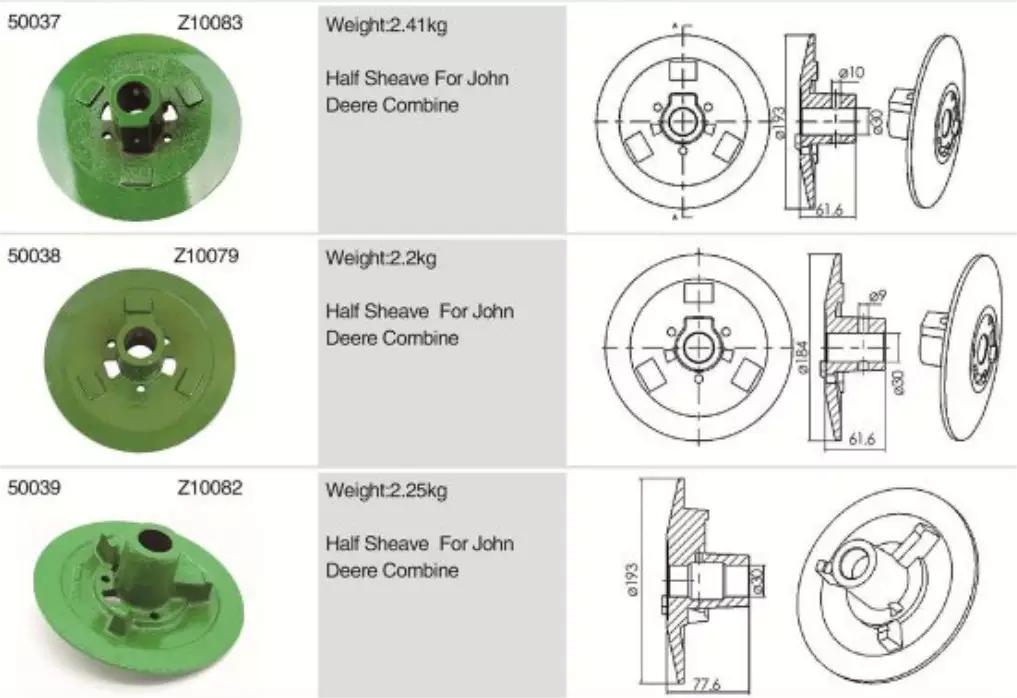

Parameters
| Weight , W | kg | 2.32 |
|---|---|---|
| Inner diameter , d | mm | 30 |
| Outer diameter , D | mm | 195 |
| Mounting holes diameter , Dm | mm | 10 |
| Height , H | mm | 68 |
| Mounting holes diameter, 2 , Dmm | mm | 9 |
Usage
Half Sheave can be adapted to Combine Harvester John Deere: 1032 1042 1052 1133 1144 925 930 932 935 940 942 945
