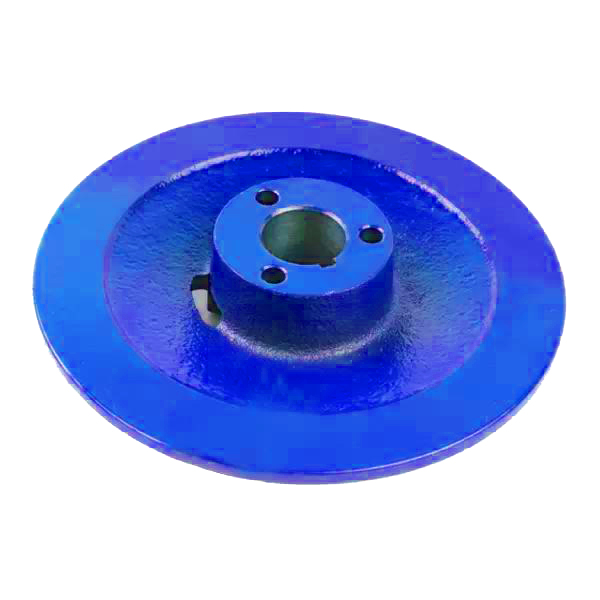

Z10676 Half Sheave For John Deere Combine
Z10676 Half sheave fit to Combine harvester John Deere: 1032 1042 1052 1055 1065 1068H 1072 1075 1085 1133 1144 1155 1157 1158 925 930 932 935 940 942 945 950 952 955 960 965 965H 968H 970 975 985
Z10676 Half Sheave For John Deere Combine
Usage
Spare part for fans of John Deere combine harvester.
Designation
Adjust the fan speed consisting of variator mechanism.
Used to replace worn or damaged spare parts during repair works.
Properties
The complex steel detail with a groove under the spline in the central bore in the form of truncated cone and cylinder with bores for mounting on the side.Surface is treated with paintwork refinishing.
Parameters of Z10676 Half sheave
| Weight , W | kg | 2.2 |
|---|---|---|
| Inner diameter , d | mm | 30 |
| Outer diameter , D | mm | 195 |
| Number of mounting holes , N | 3 | |
| Mounting holes diameter , Dm | mm | 8 |
| Height , H | mm | 46 |
| Edge Diameter , De | mm | 67 |
| Mounting holes diameter, 1 , Dmm | mm | 13 |
| Key slot | mm | 32x6x3 |
| Flange dimesion , R | mm | 12x18x10 |
Usage of Z10676 Half sheave
Combine harvester John Deere: 1032 1042 1052 1055 1065 1068H 1072 1075 1085 1133 1144 1155 1157 1158 925 930 932 935 940 942 945 950 952 955 960 965 965H 968H 970 975 985
