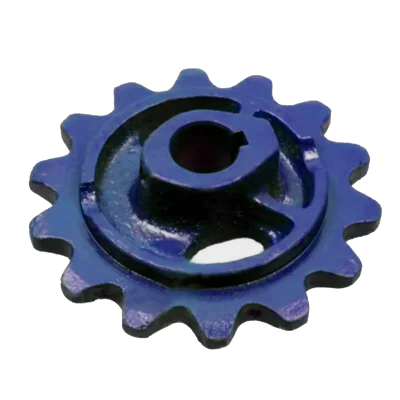

Z10815/Z11543 Chain Sprocket For John Deere Combine 1032 series
Z10815/Z11543 Chain Sprocket For John Deere Combine
- Application: Spare part for JOHN DEERE combine
- Destination: The sprocket is an obligatory element of chain drive which serves for torque transfer between two in parallel located shaft by means of a flexible element – a chain.
- Properties: Sprocket is a profiled wheel with teeth, which is characterized by the following parameters: width roller sprocket, chain pitch, the outer diameter of the sprocket, the number of sprocket teeth, width sprocket diameter fit on the shaft.
- Features: One row sprocket.
Z10815/Z11543 Chain Sprocket For John Deere Combine
- Application: Spare part for JOHN DEERE combine
- Destination: The sprocket is an obligatory element of chain drive which serves for torque transfer between two in parallel located shaft by means of a flexible element – a chain.
- Properties: Sprocket is a profiled wheel with teeth, which is characterized by the following parameters: width roller sprocket, chain pitch, the outer diameter of the sprocket, the number of sprocket teeth, width sprocket diameter fit on the shaft.
- Features: One row sprocket.
Parameters of Z10815/Z11543 Chain Sprocket
| Weight , W | kg | 2.7 |
|---|---|---|
| Inner diameter , d | mm | 35 |
| Outer diameter , D | mm | 190 |
| Number of teeth , Z | 14 | |
| Number of mounting holes , N | 2 | |
| Height , H | mm | 58 |
| Thread , M | M12x1.5 | |
| Outside diameter , D1 | mm | 135 |
| Root radius , R | mm | 6 |
Usage of Z10815/Z11543 Chain Sprocket
Z10815/Z11543 Chain Sprocket can be adapted to Combine harvester John Deere: 1032 1042 1052 1055 925 932 942 945 952 955 965 965H 968H
