John Deere Combine Chain Sprocket Z10816 Z11544 J
Z11544 Chain Sprocket can be adapted to Combine Harvester John Deere : 1052 1055 1065 1068H 1072 1075 1085 1133 1144 952 955 965 965H 968H 975 985
John Deere Sprocket

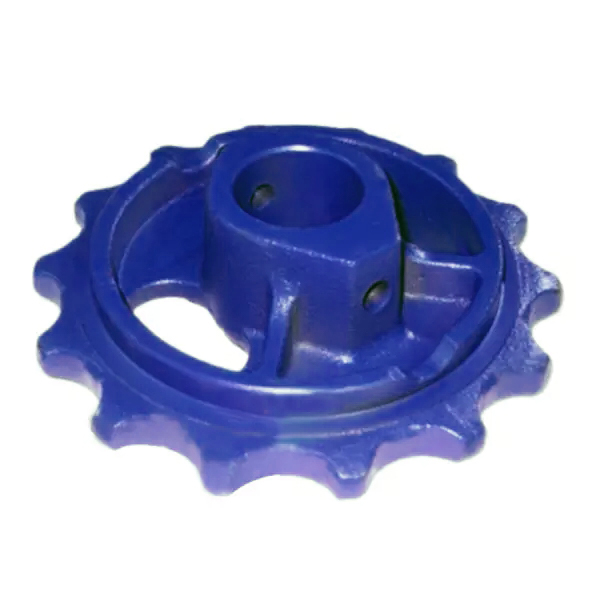

Z10816/Z11544 Chain Sprocket For John Deere Combine
- Application: Spare part for JOHN DEERE combine
- Destination: The sprocket is an obligatory element of chain drive which serves for torque transfer between two in parallel located shaft by means of a flexible element – a chain.
- Properties: Sprocket is a profiled wheel with teeth, which is characterized by the following parameters: width roller sprocket, chain pitch, the outer diameter of the sprocket, the number of sprocket teeth, width sprocket diameter fit on the shaft.
- Features: One row sprocket.
Parameters Of Z11544 Chain Sprocket
| Weight , W | kg | 2.54 |
|---|---|---|
| Inner diameter , d | mm | 40 |
| Outer diameter , D | mm | 190 |
| Number of teeth , Z | 14 | |
| Number of mounting holes , N | 2 | |
| Pitch , p | mm | 38.1 |
| Height , H | mm | 58 |
| Thread , M | М10 | |
| Key slot | mm | 49х10х5 |
Usage Of Z11544 Chain Sprocket
Z11544 Chain Sprocket can be adapted to Combine Harvester John Deere : 1052 1055 1065 1068H 1072 1075 1085 1133 1144 952 955 965 965H 968H 975 985
